Product CatalogPart Number
0395316016
Manufacturer
MolexDescription
TERM BLOCK HDR 16POS VERT 5.08MM
Datasheet
DatasheetPackage
-
In Stock
49,789 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

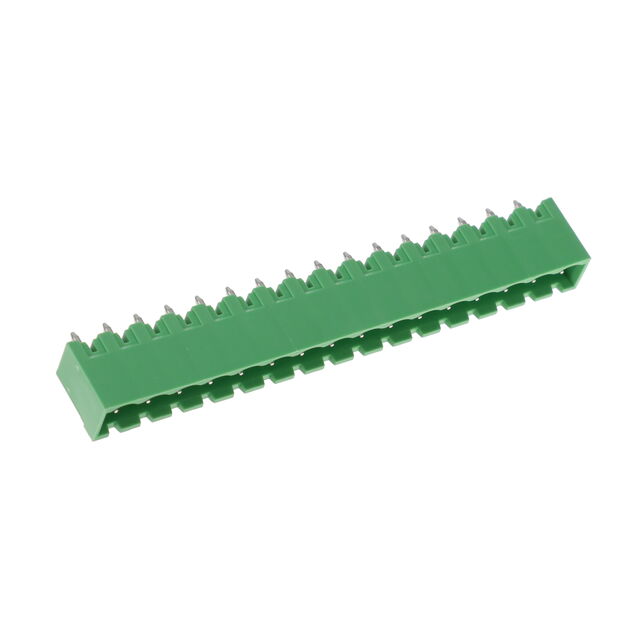

0395316016
0395316016
lmages are for reference only.Payment Methods
Delivery Services
16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Quick Inquiry
0395316016
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Molex |
| Series | Eurostyle ESE 39531 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 039531 |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 16 |
| Positions Per Level | 16 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.130" (3.30mm) |
| Insulation Height | 0.472" (12.00mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

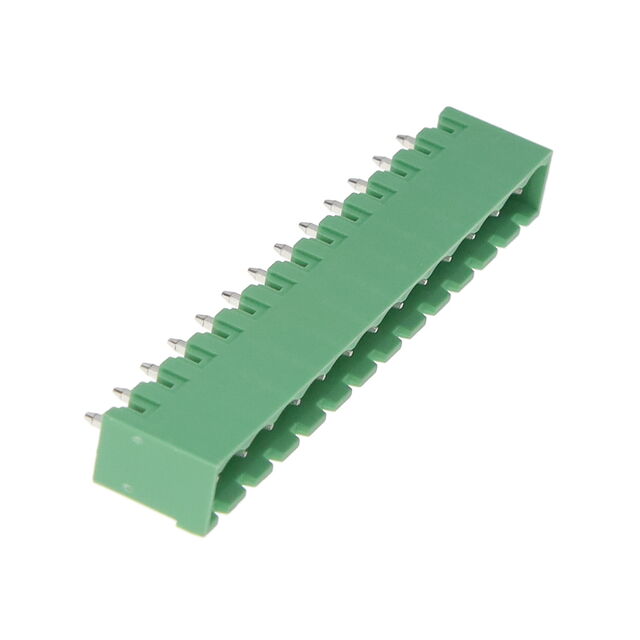

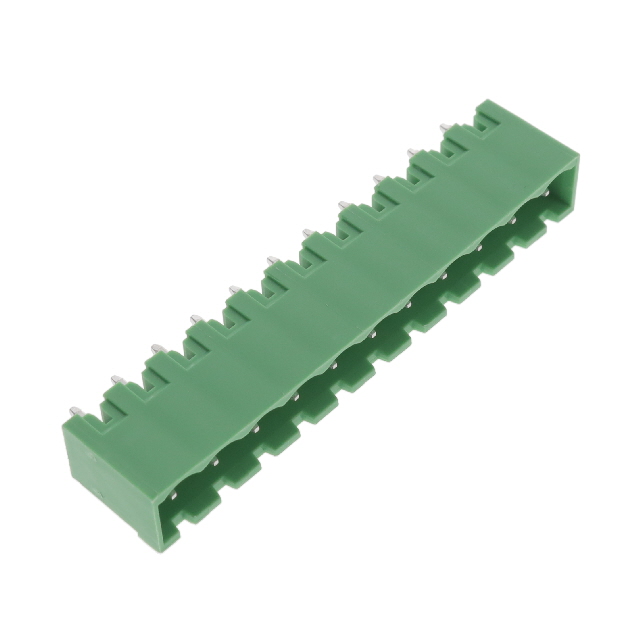

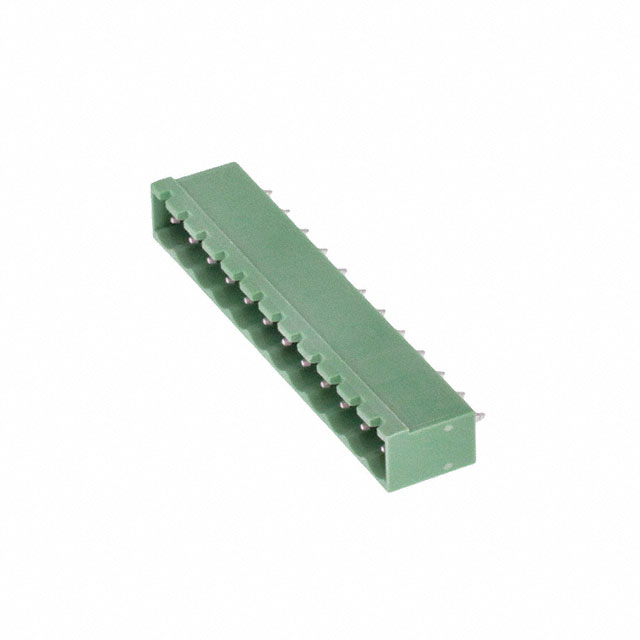

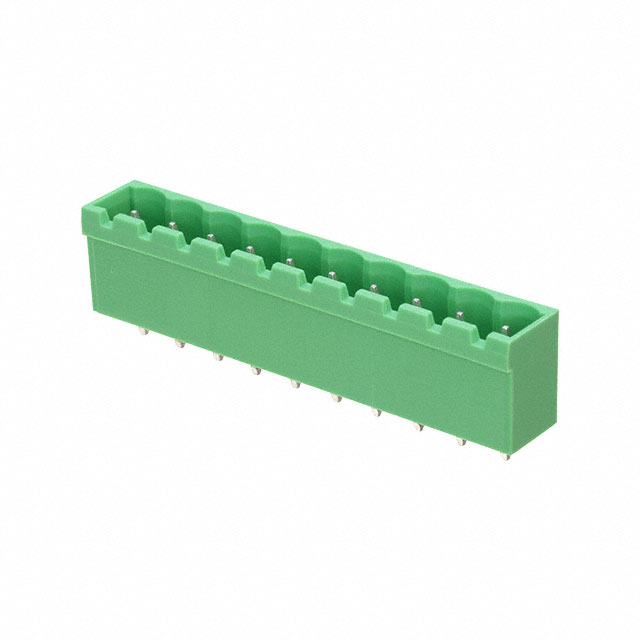

| Part Number | 0395316010 | 0395316011 | 0395316012 | 0395316013 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TERM BLOCK HDR 10POS VERT 5.08MM | TERM BLOCK HDR 11POS VERT 5.08MM | TERM BLOCK HDR 12POS VERT 5.08MM | TERM BLOCK HDR 13POS VERT 5.08MM |
| Series | Eurostyle ESE 39531 | Eurostyle ESE 39531 | Eurostyle ESE 39531 | Eurostyle ESE 39531 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
