Product CatalogPart Number
0395326012
Manufacturer
MolexDescription
TERM BLOCK HDR 12POS 5.08MM
Datasheet
DatasheetPackage
-
In Stock
17,061 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0395326012
0395326012

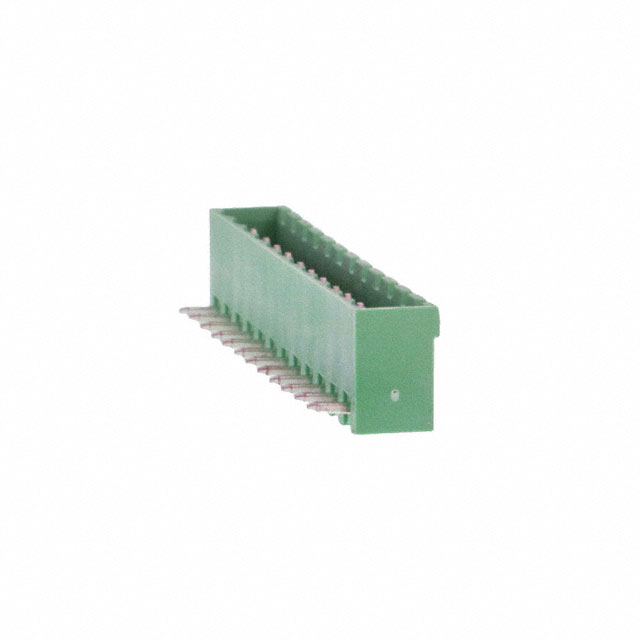

lmages are for reference only.Payment Methods
Delivery Services
12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Quick Inquiry
0395326012
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Molex |
| Series | Eurostyle ESE 39532 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 039532 |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.150" (3.81mm) |
| Insulation Height | 0.472" (12.00mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

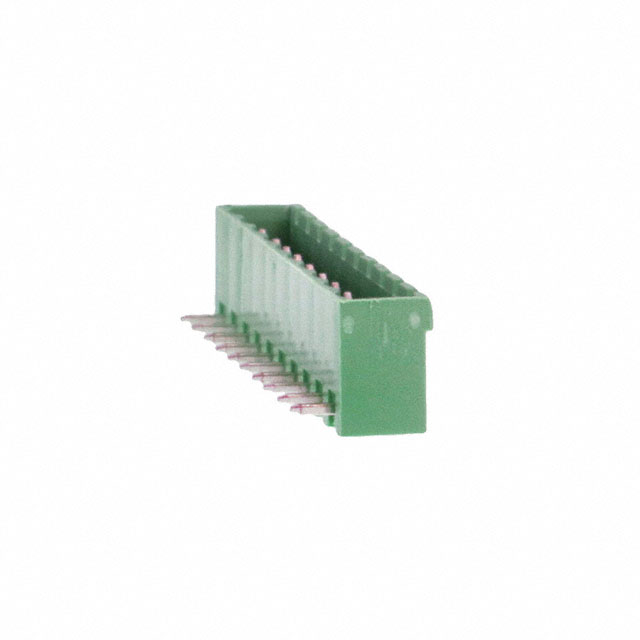

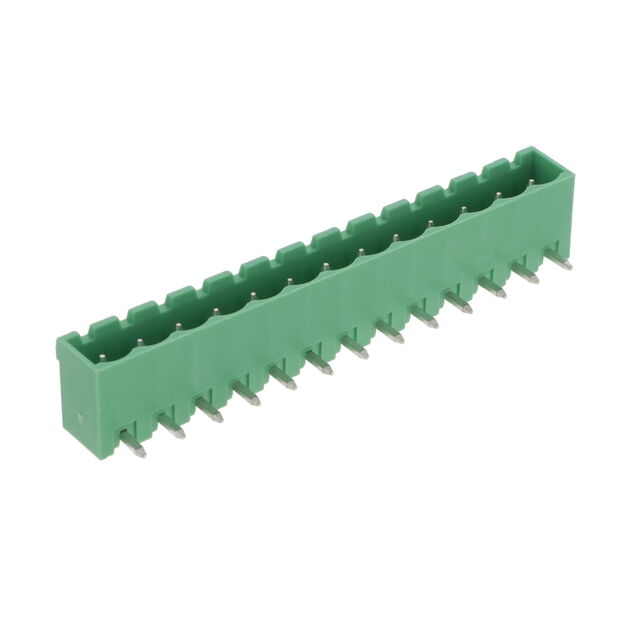

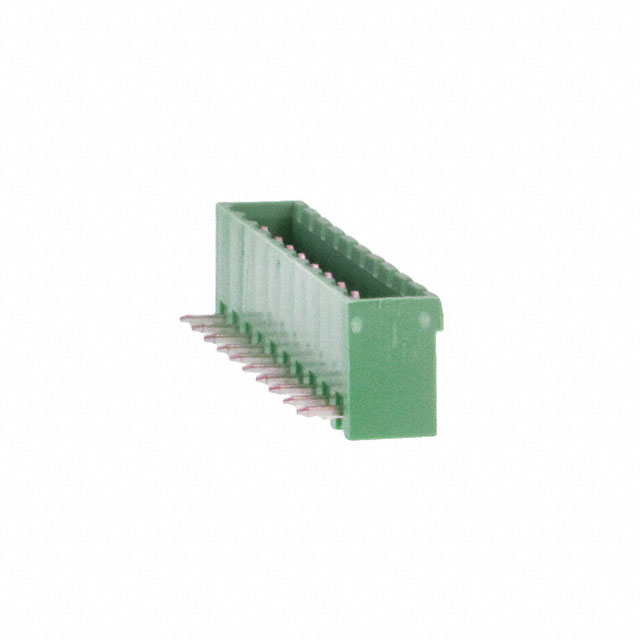

| Part Number | 0395326010 | 0395326011 | 0395326013 | 0395326014 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TERM BLOCK HDR 10POS 5.08MM | TERM BLOCK HDR 11POS 5.08MM | TERM BLOCK HDR 13POS 5.08MM | TERM BLOCK HDR 14POS 5.08MM |
| Series | Eurostyle ESE 39532 | Eurostyle ESE 39532 | Eurostyle ESE 39532 | Eurostyle ESE 39532 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
