Product CatalogPart Number
0402CS-15NXGRW
Manufacturer
CoilcraftDescription
FIXED IND 15NH 560MA 170MOHM SM
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
87,069 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0402CS-15NXGRW
0402CS-15NXGRW
lmages are for reference only.Payment Methods
Delivery Services

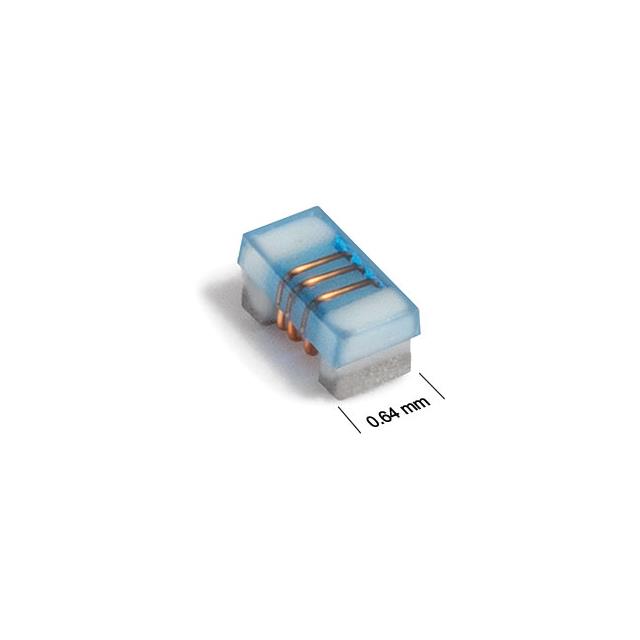

15 nH Unshielded Wirewound Inductor 560 mA 170mOhm Max 0402 (1005 Metric)
Quick Inquiry
0402CS-15NXGRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0402CS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 15 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 560 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | 55 @ 900MHz |
| Frequency - Self Resonant | 3.28GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.025" W (1.19mm x 0.64mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
