Product CatalogPart Number
0402DC-8N1XGRW
Manufacturer
CoilcraftDescription
FIXED IND 8.1NH 1.6A 70MOHM SMD
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
36,904 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0402DC-8N1XGRW
0402DC-8N1XGRW
lmages are for reference only.Payment Methods
Delivery Services
8.1 nH Unshielded Wirewound Inductor 1.6 A 70mOhm Max 0402 (1005 Metric)
Quick Inquiry
0402DC-8N1XGRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0402DC |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 8.1 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | 71 @ 900MHz |
| Frequency - Self Resonant | 8.47GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

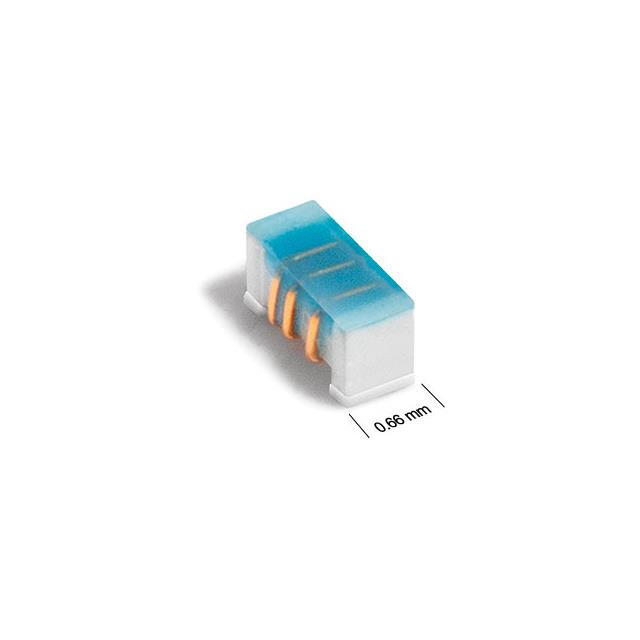

| Part Number | 0402DC-8N1XJRW | 0402DC-82NXGRW | 0402DC-82NXJRW | 0402DC-8N0XGRW |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

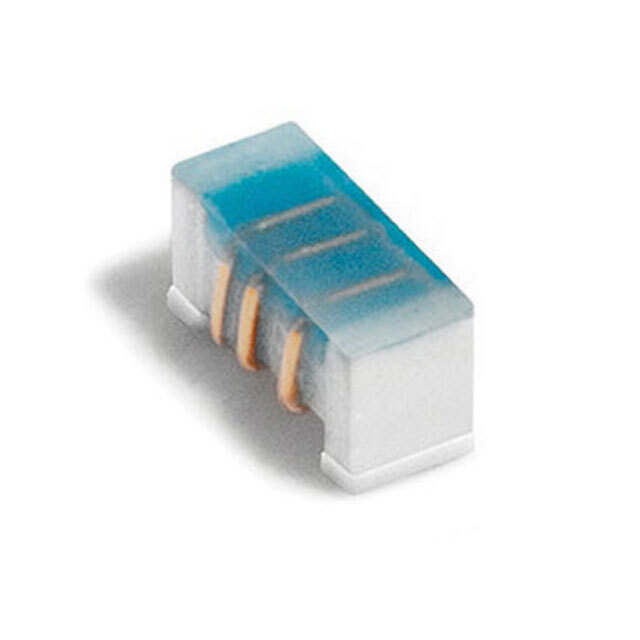

| Description | FIXED IND 8.1NH 1.6A 70MOHM SM | 0402DC-82NXGRW | 0402DC-82NXJRW | FIXED IND 8NH 1.6A 70 MOHM SMD |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Strip | Strip | Strip |
