Product CatalogPart Number
0402DC-R12XGRW
Manufacturer
CoilcraftDescription
0402DC-R12XGRW
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
56,549 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0402DC-R12XGRW
0402DC-R12XGRW

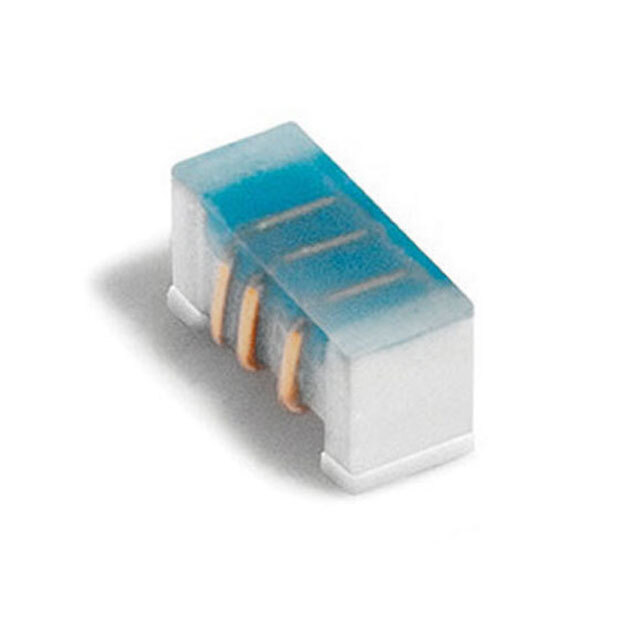

lmages are for reference only.Payment Methods
Delivery Services
120 nH Unshielded Wirewound Inductor 300 mA 1.6Ohm Max 0402 (1005 Metric)
Quick Inquiry
0402DC-R12XGRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0402DC |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 120 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.6Ohm Max |
| Q @ Freq | 46 @ 900MHz |
| Frequency - Self Resonant | 2.2GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0402DC-R10XGRW | 0402DC-R10XJRW | 0402DC-R12XJRW | 0402-10NK |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | 0402DC-R10XGRW | 0402DC-R10XJRW | 0402DC-R12XJRW | FIXED IND 10NH 680MA 195MOHM SMD |
| Series | Coilcraft | Coilcraft | Coilcraft | Delevan |
| Packaging | Strip | Strip | Strip | Tape & Reel (TR) |
