Product CatalogPart Number
0430450220
Manufacturer
MolexDescription
CONN HEADER SMD 2POS
Datasheet
DatasheetPackage
-
In Stock
14,649 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0430450220
0430450220
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 2 position
Quick Inquiry
0430450220
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | Micro-Fit 3.0 43045 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Base Product Number | 043045 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

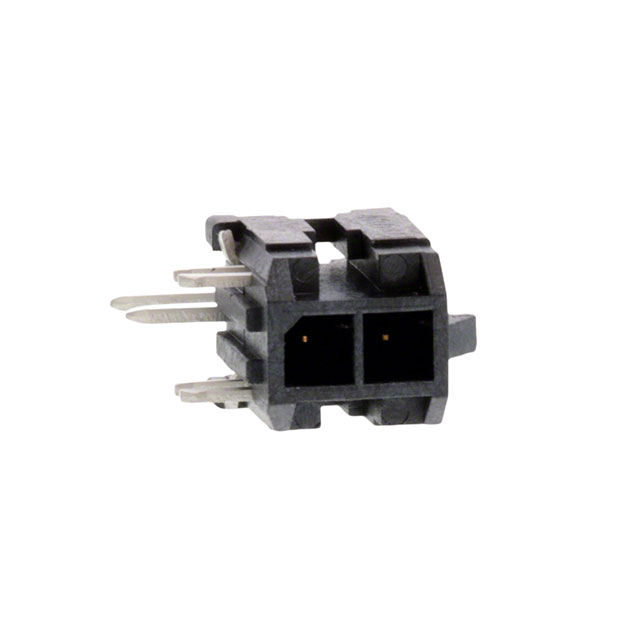

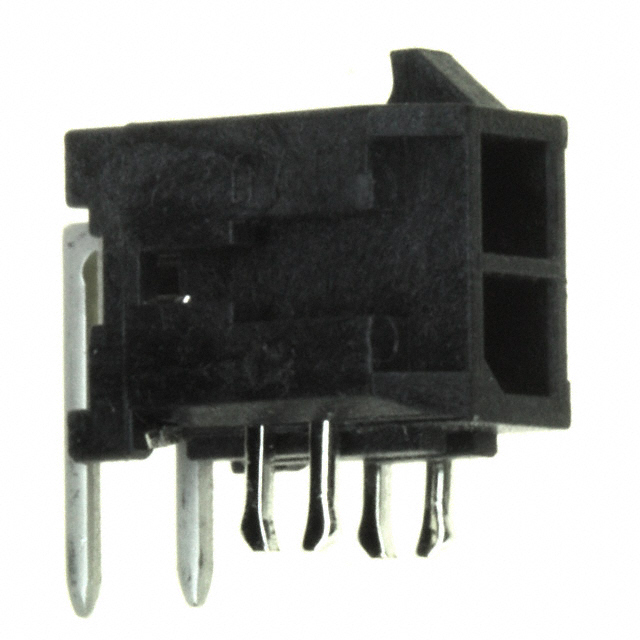

| Part Number | 0430450221 | 0430450222 | 0430450223 | 0430450224 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER R/A 2POS | CONN HEADER R/A 2POS | CONN HEADER R/A 2POS | CONN HEADER VERT 2POS |
| Series | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 |
| Packaging | Tray | Tray | Tray | Tray |
