04513.15MRSN
lmages are for reference only.04513.15MRSN
FUSE BOARD MNT 3.15A 125VAC 2SMD
Datasheet2-SMD, Square End Block
79,142 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.15 A 125 V AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
04513.15MRSN
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | NANO²® 451 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 3.15 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 1.92 |
| Approval Agency | CSA, METI, UR |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.0215 Ohms |
| Product Attribute |  |
 |
 |
 |

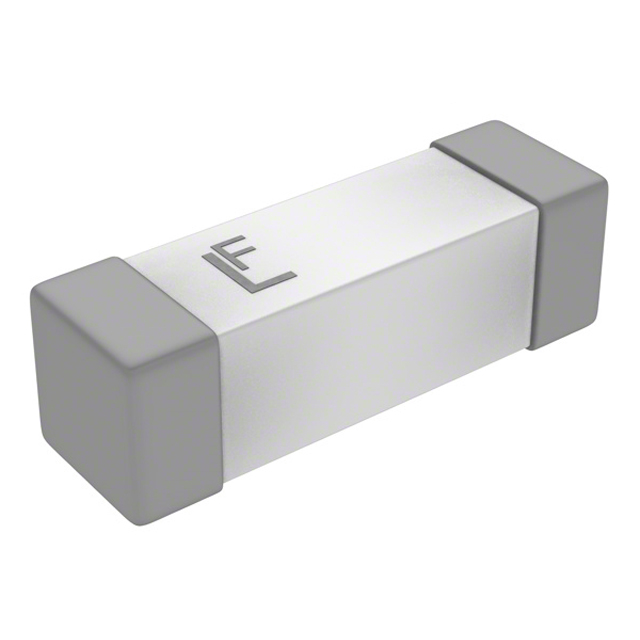

| Part Number | 0435004.KR | 0498175.MX1M5 | 0494.250NR | 0456030.ER |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOARD MOUNT 4A 32VDC 0402 | FUSE AUTO 175A 32VDC AUTO LINK | FUSE BRD MT 250MA 32VAC 32VDC | FUSE BRD MT 30A 125VAC 72VDC SMD |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
