Product CatalogPart Number
046277003201883+
Manufacturer
KYOCERA AVXDescription
CONN FPC 3POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
76,906 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
046277003201883+
046277003201883+

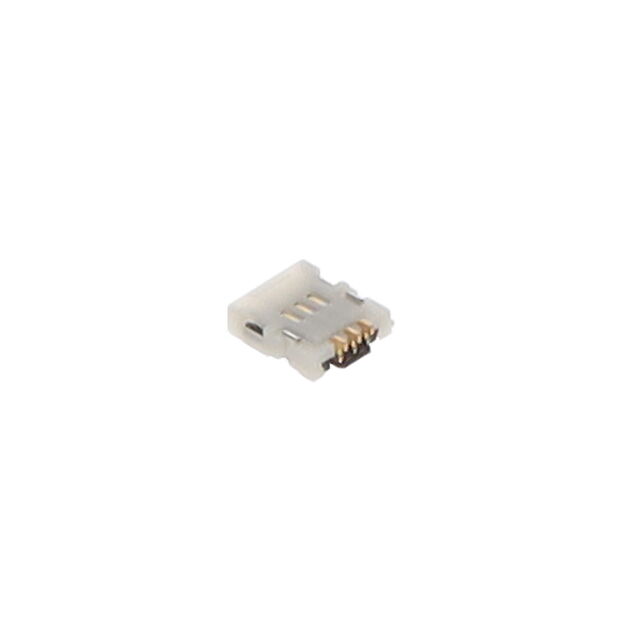

lmages are for reference only.Payment Methods
Delivery Services
3 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
046277003201883+
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | KYOCERA AVX |
| Series | 6277, Kyocera |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 3 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.90mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | - |
| Current Rating (Amps) | 0.4A |
| Contact Finish Thickness | - |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | 046277003001883+ | 046277004001883+ | 046277004001883P+ | 046277004201883+ |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CONN FPC 3POS 0.5MM R/A | CONN FPC 4POS 0.5MM R/A | CONN FPC 4POS 0.5MM R/A | CONN FPC 4POS 0.5MM R/A |
| Series | 6277, Kyocera | 6277, Kyocera | 6277, Kyocera | 6277, Kyocera |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
