Product CatalogPart Number
04JQ-ST
Manufacturer
JST Sales America Inc.Description
CONN RCPT 4POS 0.098 TIN PCB R/A
Datasheet
DatasheetPackage
-
In Stock
65,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
04JQ-ST
04JQ-ST

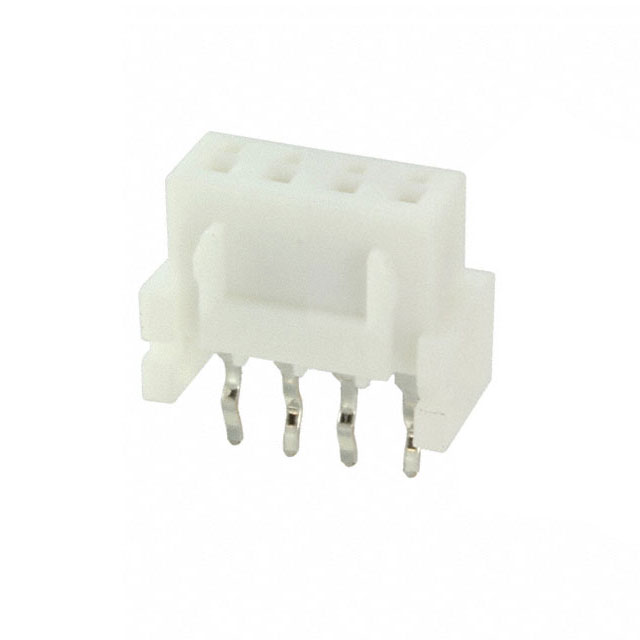

lmages are for reference only.Payment Methods
Delivery Services
4 Position Receptacle Connector 0.098" (2.50mm) Through Hole, Right Angle Tin
Quick Inquiry
04JQ-ST
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | JST Sales America Inc. |
| Series | JQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit, Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Natural |
| Insulation Height | 0.236" (6.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Applications | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | - |
| Base Product Number | 04JQ |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | 04JQ-BT | 04JQ-ST | 0009463042 | 0009481023 |
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT 4POS 0.098 TIN PCB | CONN RCPT 4POS 0.098 TIN PCB R/A | CONN RCPT 4POS 0.156 PCB | PCB ASSY KK 156 RA 2POS |
| Series | JST Sales America Inc. | JST Sales America Inc. | Molex | Molex |
| Packaging | Bulk | Bulk | Tray | Tray |
