Product CatalogPart Number
0522712569
Manufacturer
MolexDescription
CONN FPC BOTTOM 25POS 1MM R/A
Datasheet
DatasheetPackage
-
In Stock
10,446 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0522712569
0522712569
lmages are for reference only.Payment Methods
Delivery Services

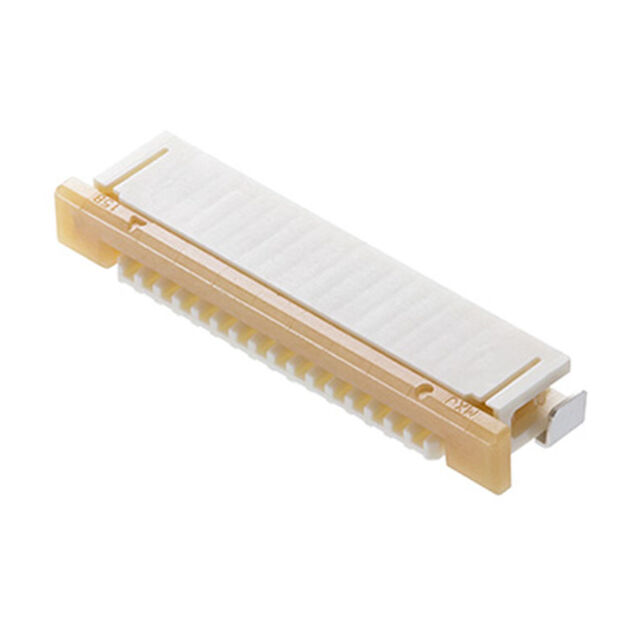

25 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Quick Inquiry
0522712569
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Molex |
| Series | 52271 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 25 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | 30 |
| Base Product Number | 052271 |
