Product CatalogPart Number
0528072310
Manufacturer
MolexDescription
CONN FPC TOP 23POS 1MM R/A
Datasheet
DatasheetPackage
-
In Stock
99,472 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0528072310
0528072310
lmages are for reference only.Payment Methods
Delivery Services
23 Position FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
Quick Inquiry
0528072310
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Molex |
| Series | 52807 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 23 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.142" (3.60mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | 052807 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

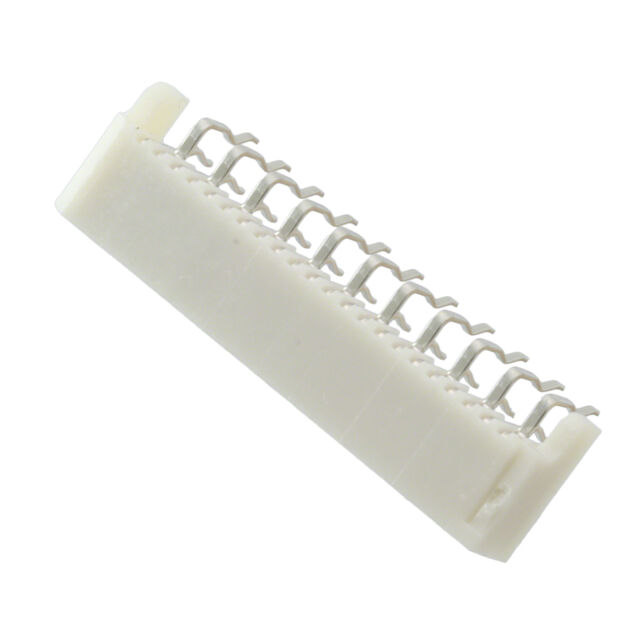

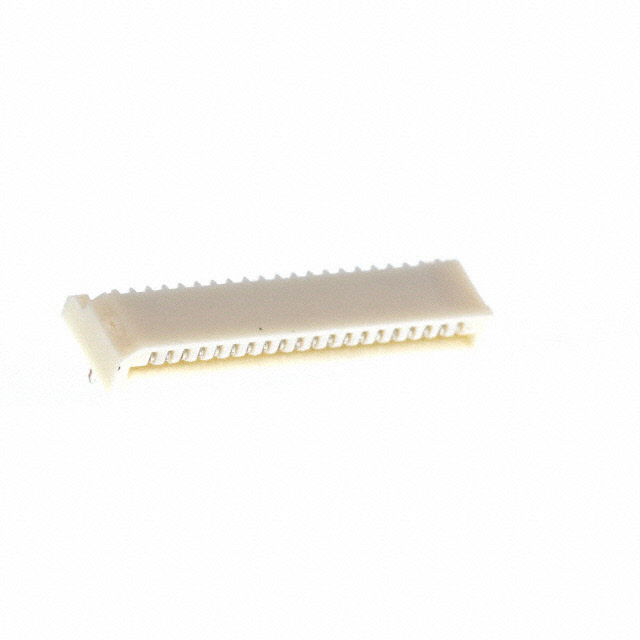

| Part Number | 0528072010 | 0528072110 | 0528072210 | 0528072410 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN FPC TOP 20POS 1MM R/A | CONN FPC TOP 21POS 1MM R/A | CONN FPC TOP 22POS 1MM R/A | CONN FPC TOP 24POS 1MM R/A |
| Series | 52807 | 52807 | 52807 | 52807 |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
0528060310
Molex

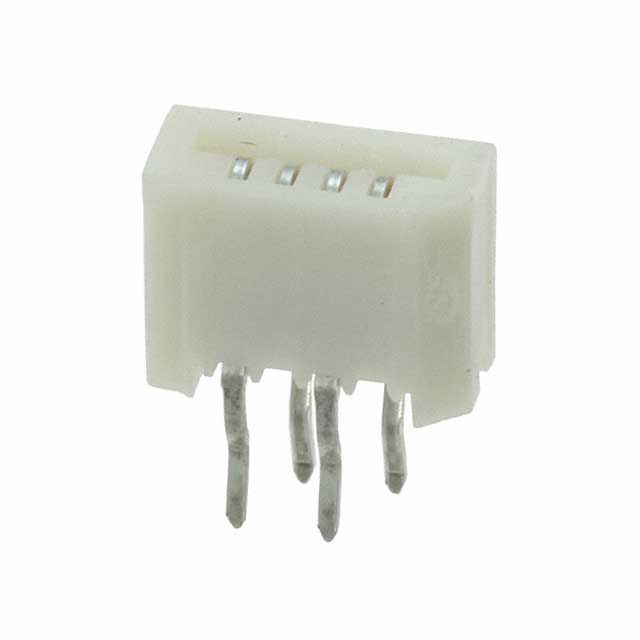

0528060410
Molex

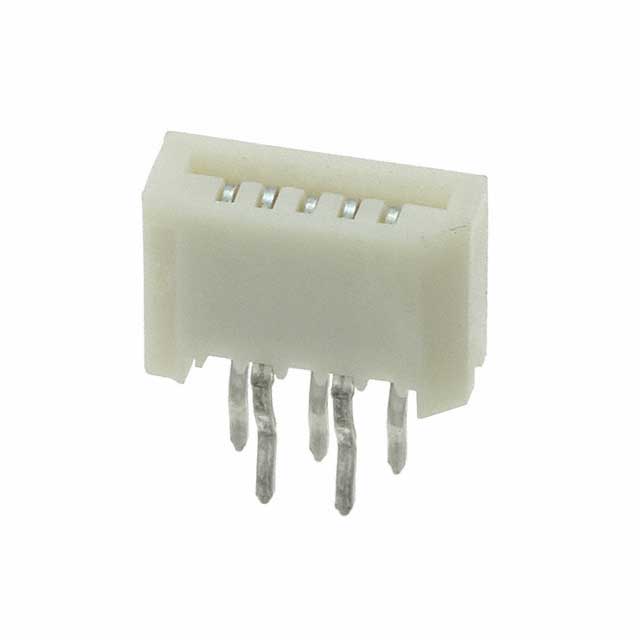

0528060510
Molex

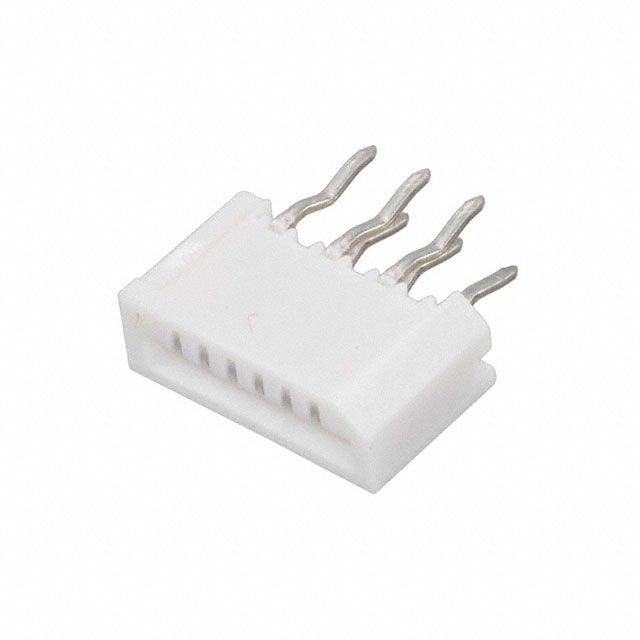

0528060610
Molex

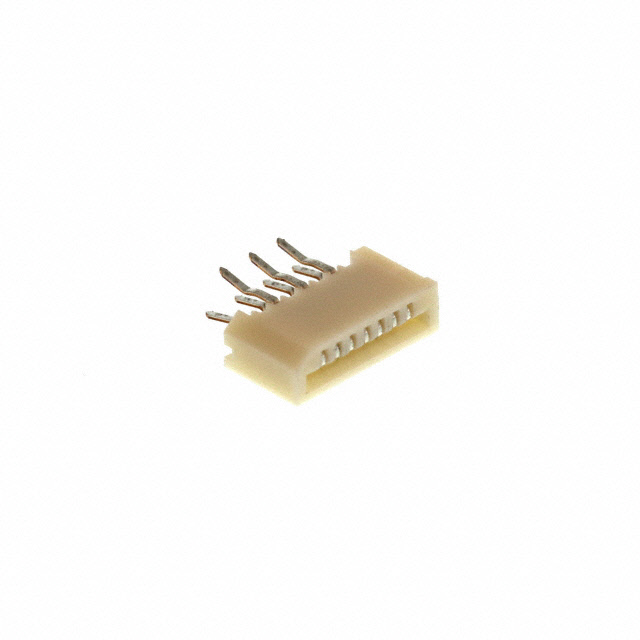

0528060710
Molex

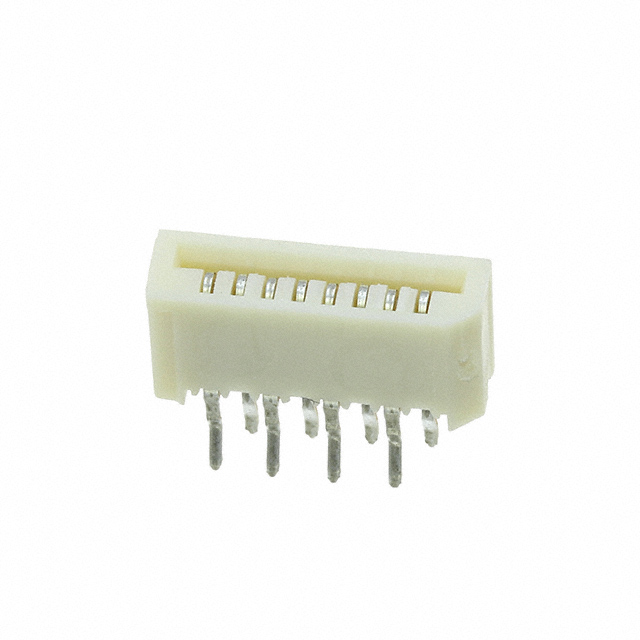

0528060810
Molex

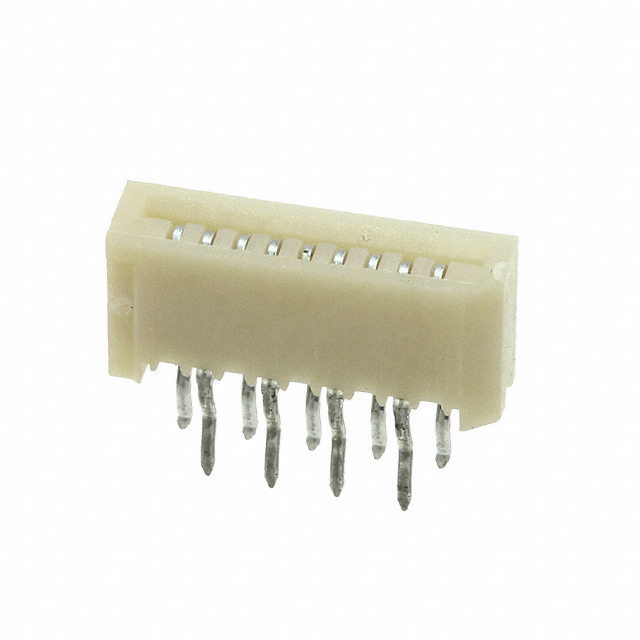

0528060910
Molex

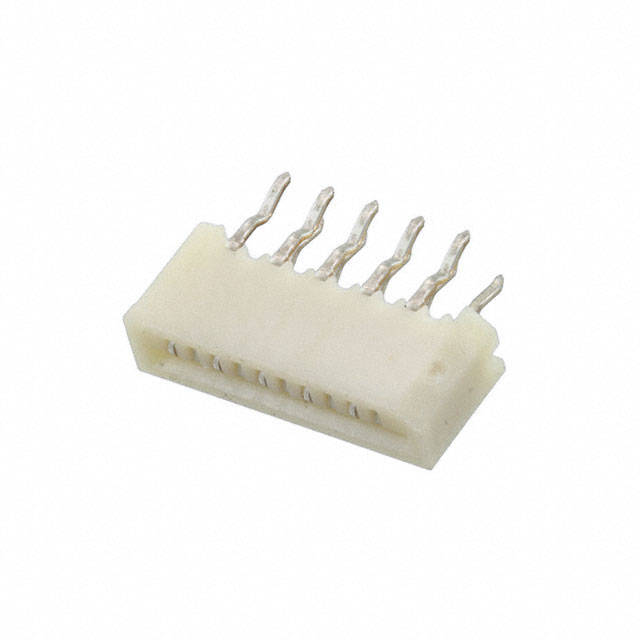

0528061010
Molex

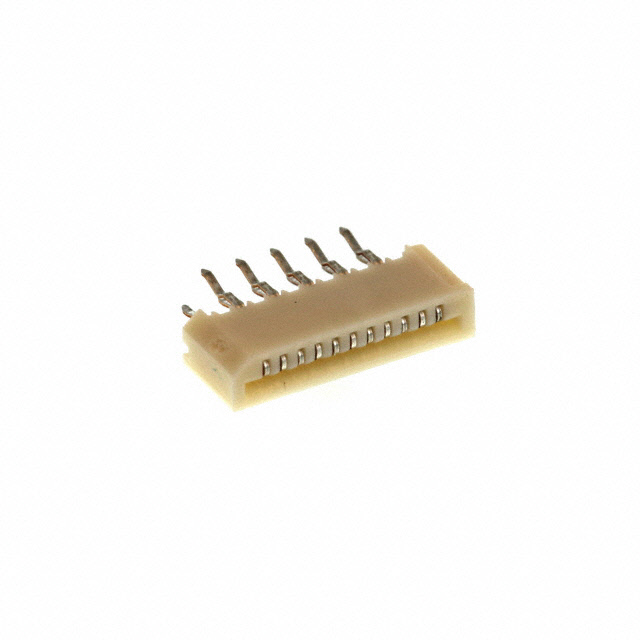

0528061110
Molex

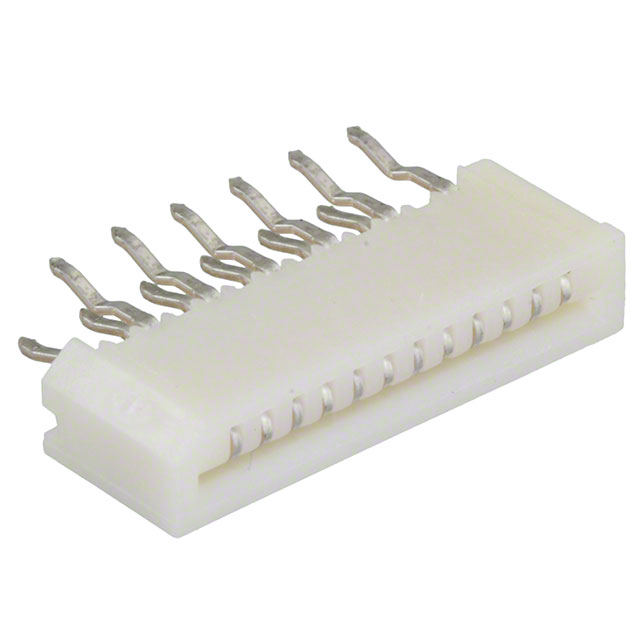

0528061210
Molex

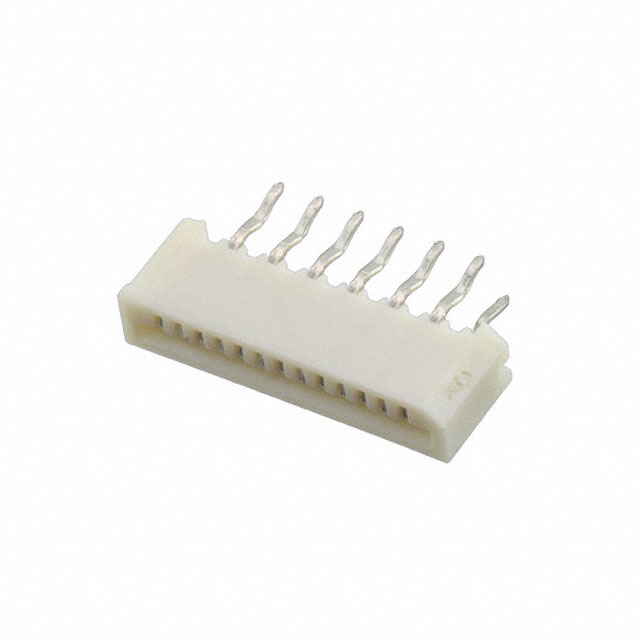

0528061310
Molex

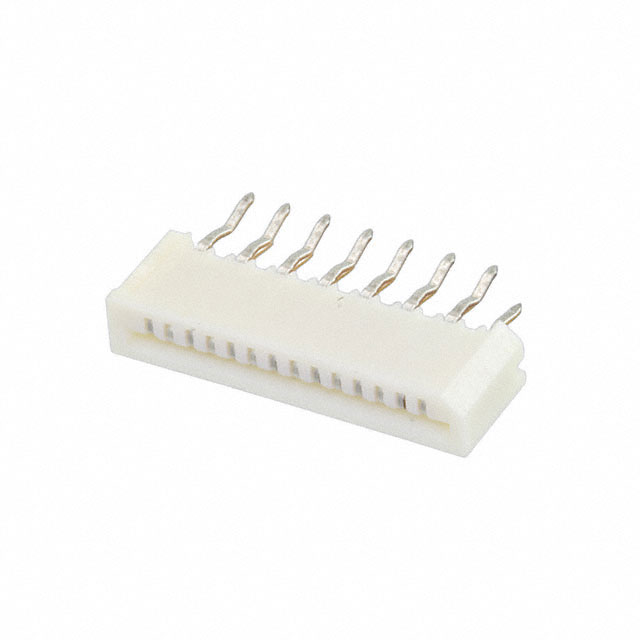

0528061410
Molex

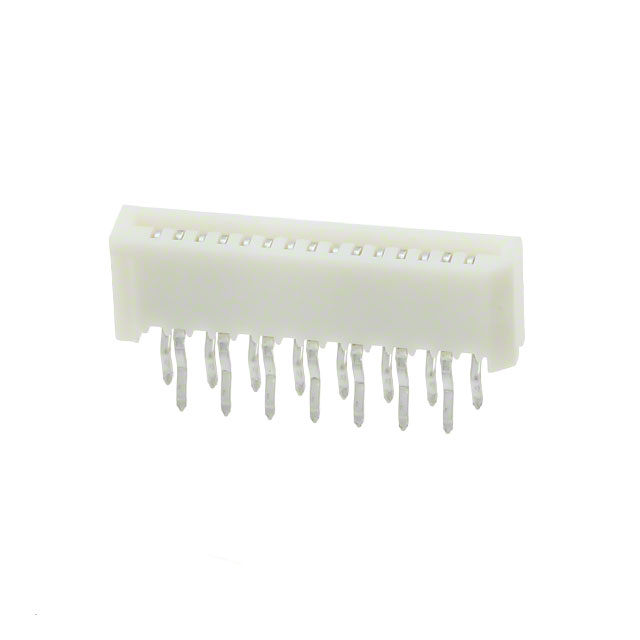

0528061510
Molex

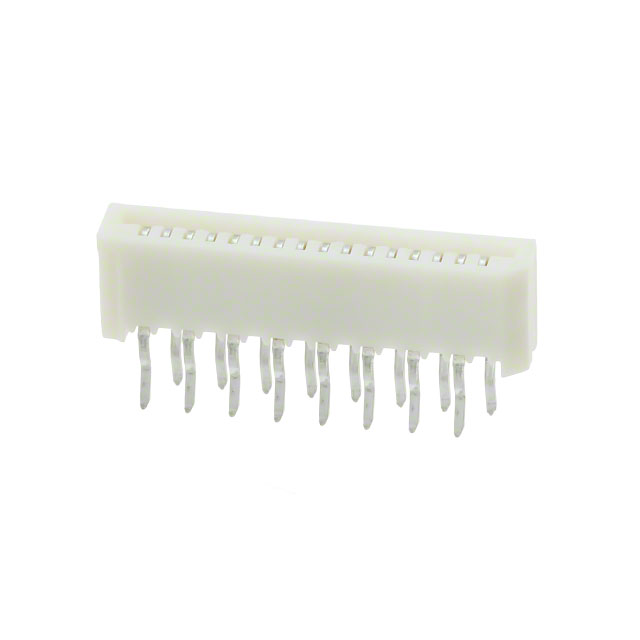

0528061610
Molex
0528061710
Molex

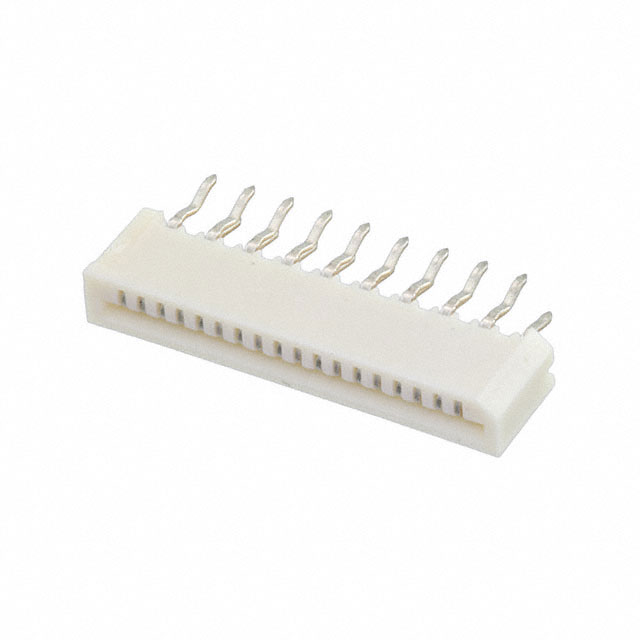

0528061810
Molex
0528061910
Molex

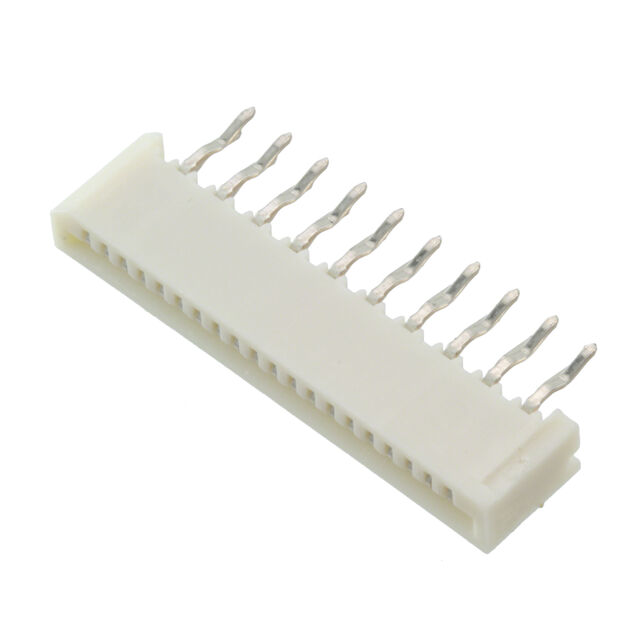

0528062010
