Product CatalogPart Number
0536471074
Manufacturer
MolexDescription
CONN PLUG 100POS SMD GOLD
Datasheet
DatasheetPackage
-
In Stock
33,222 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0536471074
0536471074
lmages are for reference only.Payment Methods
Delivery Services

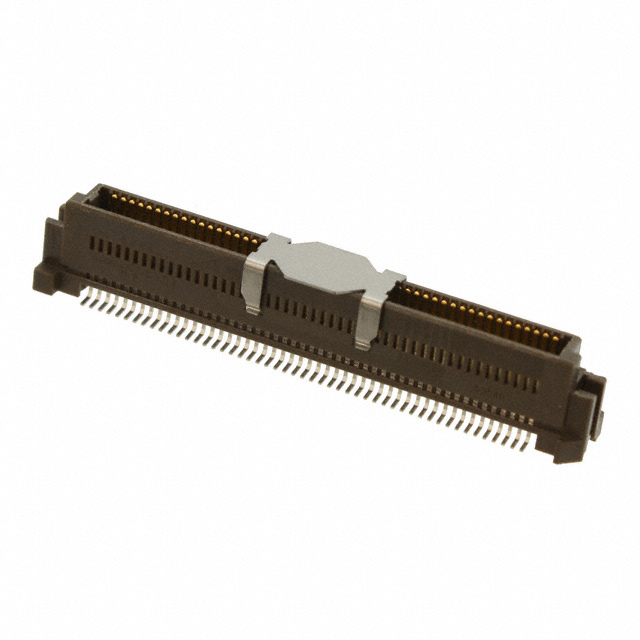

100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Quick Inquiry
0536471074
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Arrays-Edge Type-Mezzanine Board to Board |
| Manufacturer | Molex |
| Series | SlimStack 53647 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Plug, Outer Shroud Contacts |
| Number of Positions | 100 |
| Pitch | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Mated Stacking Heights | 8mm, 14mm |
| Height Above Board | 0.275" (6.99mm) |
| Base Product Number | 053647 |
