Product CatalogPart Number
0545500672
Manufacturer
MolexDescription
CONN FFC FPC TOP 6POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
78,717 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0545500672
0545500672
lmages are for reference only.Payment Methods
Delivery Services
6 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
0545500672
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Molex |
| Series | Easy-On 54550 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.047" (1.20mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | 20 |
| Base Product Number | 054550 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | 0545500671 | 0545500433 | 0545500471 | 0545500472 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN FFC FPC TOP 6POS 0.5MM R/A | CONN FFC FPC TOP 4POS 0.5MM R/A | CONN FFC FPC TOP 4POS 0.5MM R/A | CONN FFC FPC TOP 4POS 0.5MM R/A |
| Series | Easy-On 54550 | Easy-On 54550 | Easy-On 54550 | Easy-On 54550 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
0545500433
Molex

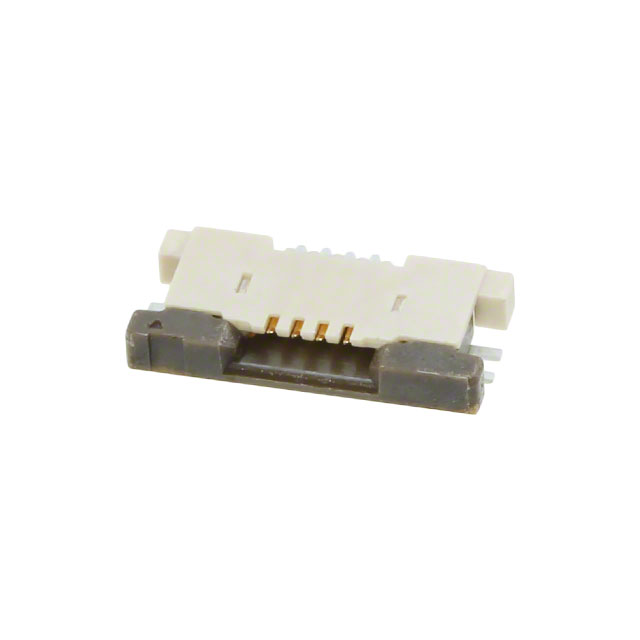

0545500471
Molex

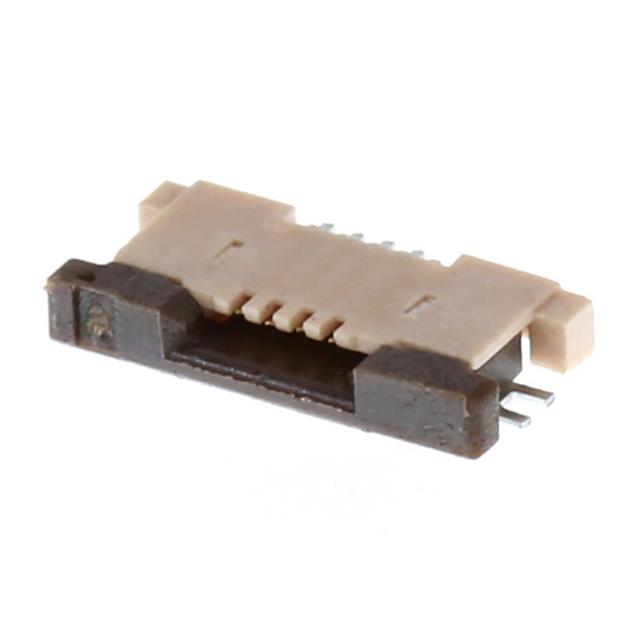

0545500472
Molex
0545500494
Molex
0545500533
Molex
0545500534
Molex

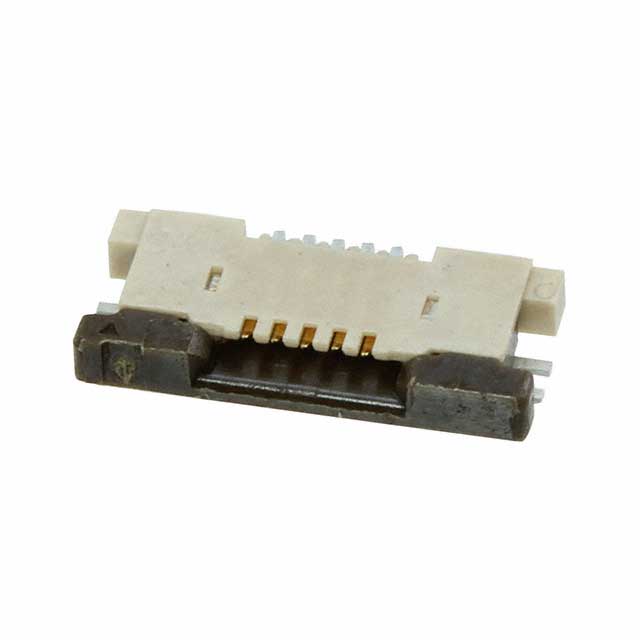

0545500571
Molex

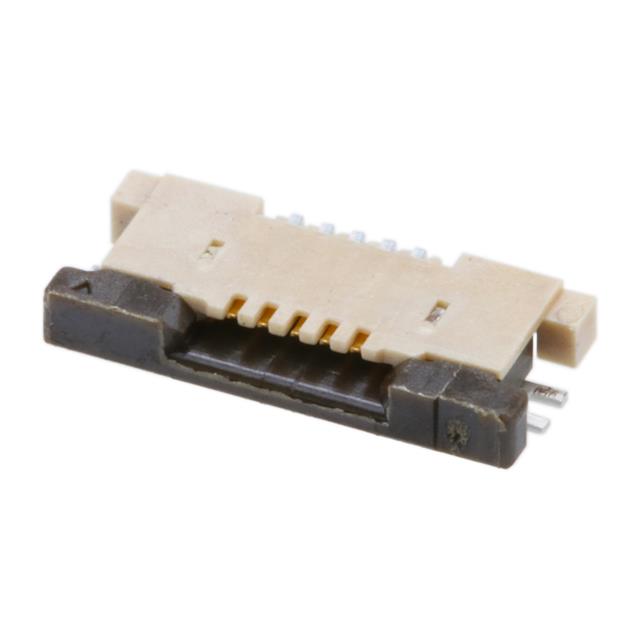

0545500572
Molex

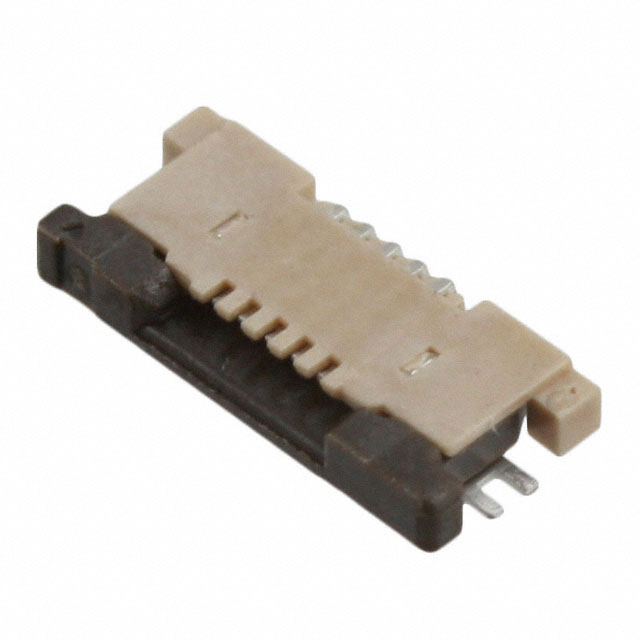

0545500594
Molex

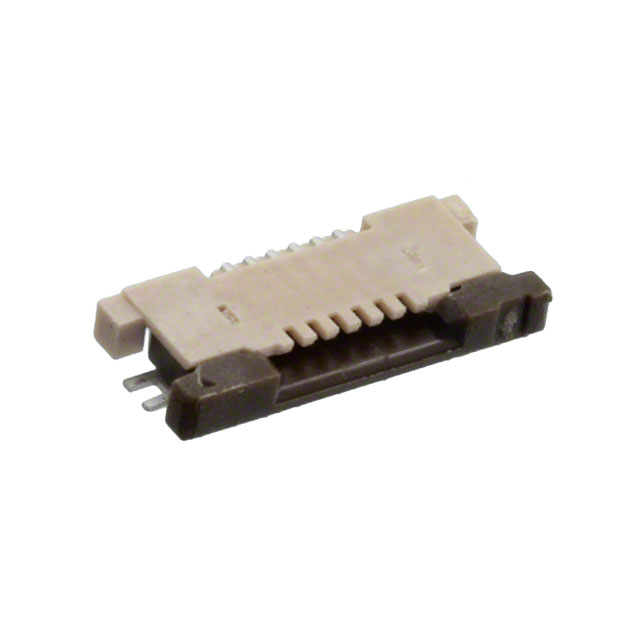

0545500633
Molex

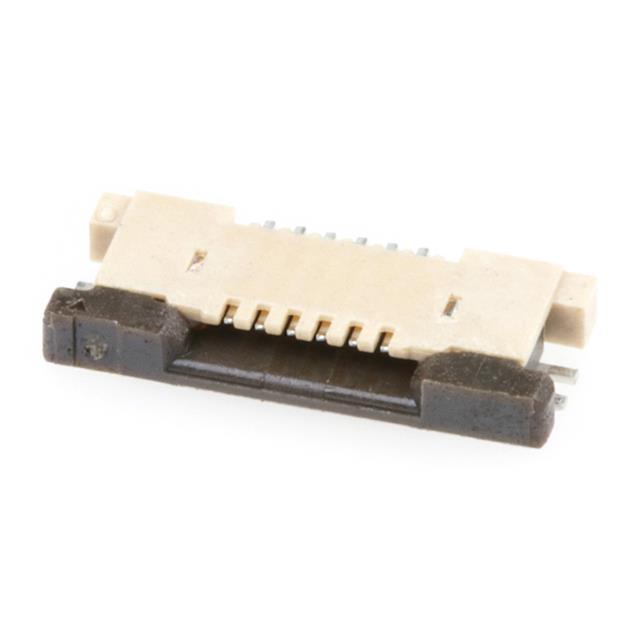

0545500634
Molex

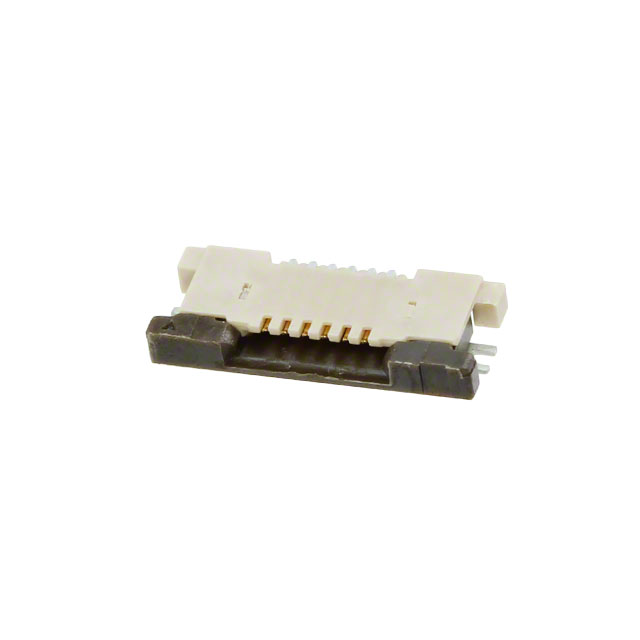

0545500671
Molex

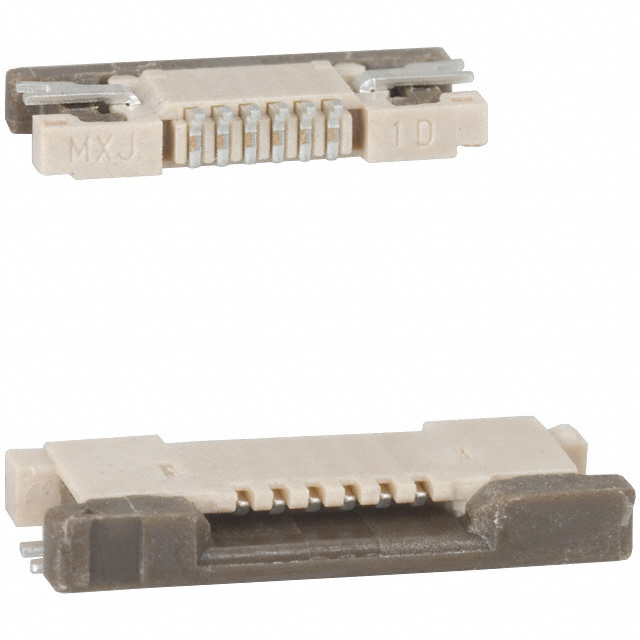

0545500694
Molex
0545500733
Molex

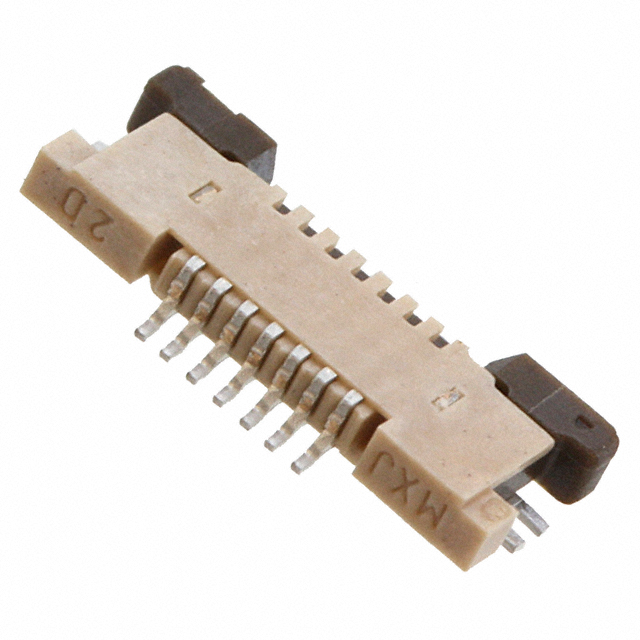

0545500771
Molex
0545500772
Molex
0545500794
Molex

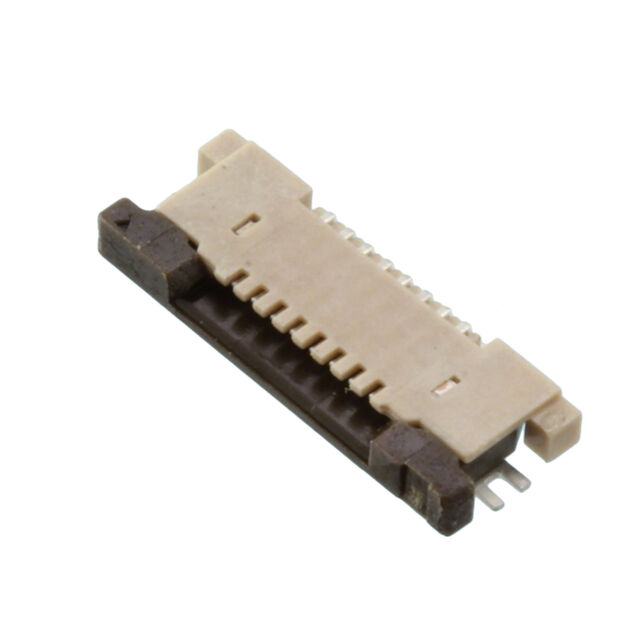

0545500833
