Product CatalogPart Number
0603AF-271XJRW
Manufacturer
CoilcraftDescription
FIXED IND 270NH 680MA 220MOHM SM
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
69,992 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0603AF-271XJRW
0603AF-271XJRW
lmages are for reference only.Payment Methods
Delivery Services
270 nH Unshielded Wirewound Inductor 680 mA 220mOhm Max 0603 (1608 Metric)
Quick Inquiry
0603AF-271XJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0603AF |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 15 @ 7.9MHz |
| Frequency - Self Resonant | 750MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.036" (0.91mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0603AF-201XJRW | 0603AF-222XJRW | 0603AF-241XJRW | 0603-101J |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FIXED IND 200NH 1.4A 115MOHM SMD | FIXED IND 2.2UH 320MA 1.1OHM SMD | FIXED IND 240NH 850MA 120MOHM SM | FIXED IND 100NH 400MA 580MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Delevan |
| Packaging | Strip | Strip | Strip | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
0603AF-102XJRW
Coilcraft
0603AF-103XJRW
Coilcraft
0603AF-111XJRW
Coilcraft
0603AF-121XJRW
Coilcraft
0603AF-151XJRW
Coilcraft
0603AF-152XJRW
Coilcraft

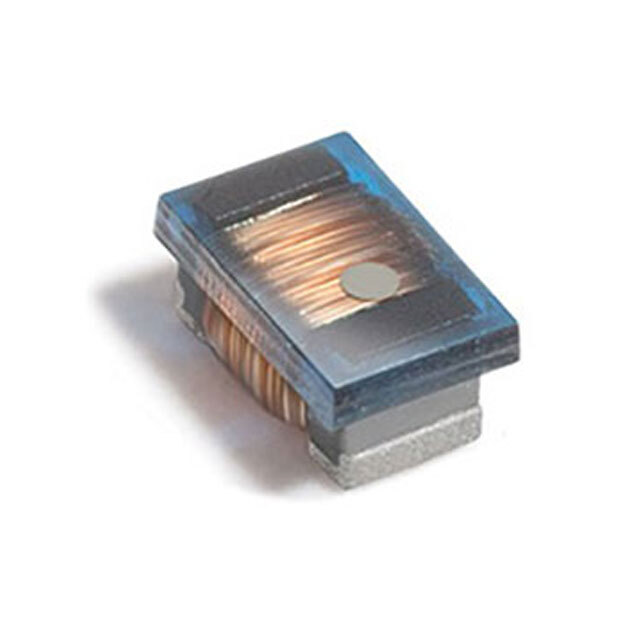

0603AF-15NXJRW
