Product CatalogPart Number
0603DC-R22XGRW
Manufacturer
CoilcraftDescription
FIXED IND 220NH 390MA 1.69OHM SM
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
90,302 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0603DC-R22XGRW
0603DC-R22XGRW
lmages are for reference only.Payment Methods
Delivery Services

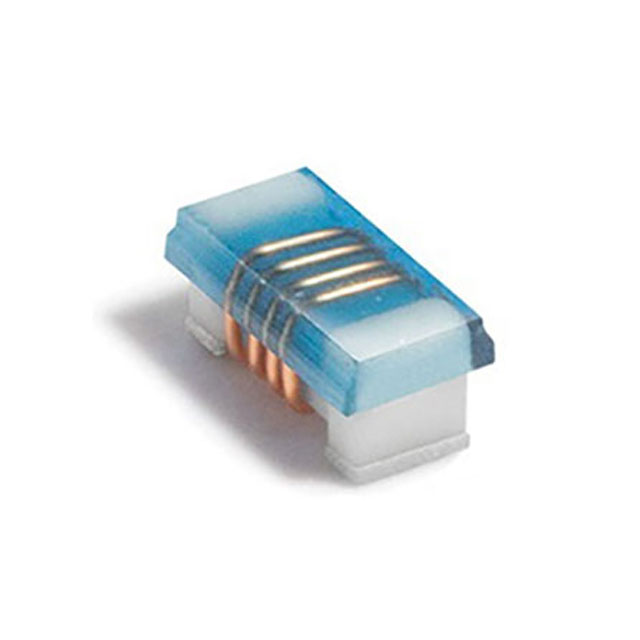

220 nH Unshielded Drum Core, Wirewound Inductor 390 mA 1.69Ohm Max 0603 (1608 Metric)
Quick Inquiry
0603DC-R22XGRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0603DC |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 220 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 390 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.69Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 900MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.067" L x 0.039" W (1.70mm x 0.99mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Base Product Number | - |
