0603L020YR
lmages are for reference only.0603L020YR
PTC RESET FUSE 9V 200MA 0603
Datasheet0603 (1608 Metric), Concave
51,090 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 9V 200 mA Ih Surface Mount 0603 (1608 Metric), Concave
0603L020YR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, 0603L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 9V |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 500 mA |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 600 ms |
| Resistance - Initial (Ri) (Min) | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.5 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0603L025YR | 0603L003/36YR-A | 0603L200SLYR | 0603L002/60YR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

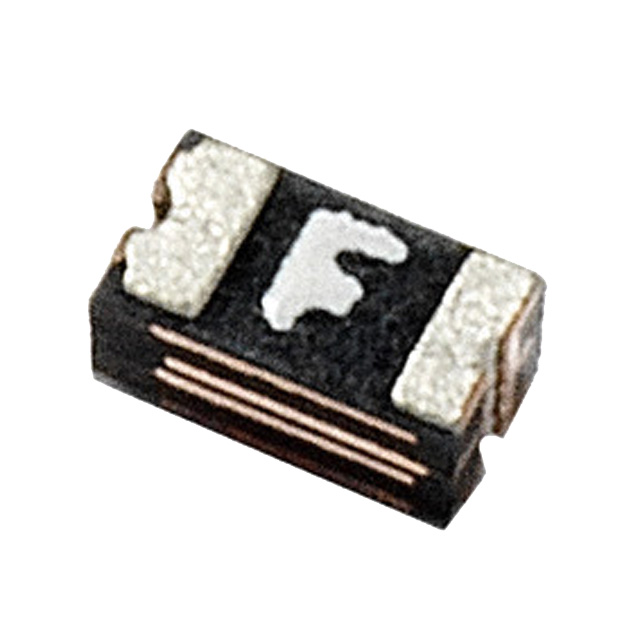

| Description | PTC RESET FUSE 9V 250MA 0603 | PTC 36V POLYFUSE SMD 0603 .030A | PTC RESET FUSE 6V 2A 0603 | PTC RESET FUSE 60V 20MA 0603 |
| Series | POLY-FUSE®, 0603L | POLY-FUSE®, 0603L | POLY-FUSE®, LoRho | POLY-FUSE®, 0603L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
