Product CatalogPart Number
0603N1R0B500SD
Manufacturer
AillenDescription
CAP CER 1PF 50V NP0 0603
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
78,454 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0603N1R0B500SD
0603N1R0B500SD

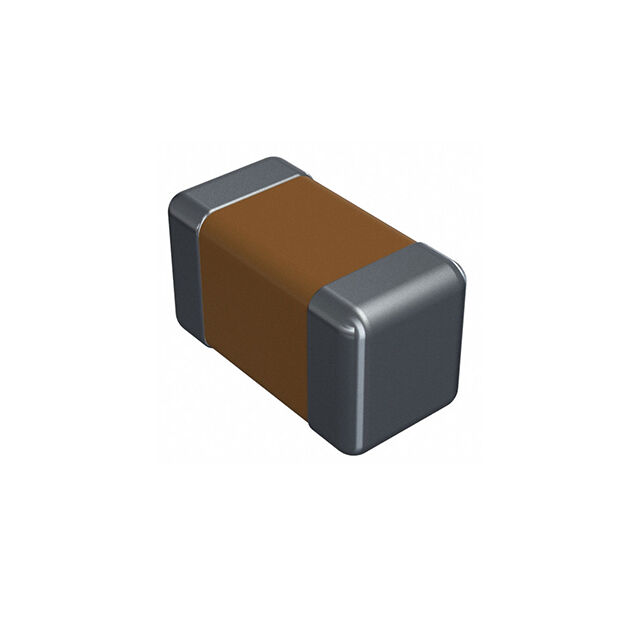

lmages are for reference only.Payment Methods
Delivery Services
1 pF ±0.1pF 50V Ceramic Capacitor NP0 0603 (1608 Metric)
Quick Inquiry
0603N1R0B500SD
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Aillen |
| Series | 0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 50V |
| Temperature Coefficient | NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.031" (0.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0603N1R0B500CT | 0603N1R0AW251 | 0603N1R0B101CT | 0603N1R0B160CT |
| Manufacturer | Walsin Technology Corporation | Passive Plus | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1PF 50V C0G/NP0 0603 | CAP CER 1PF 250V C0G/NP0 0603 | CAP CER 1PF 100V C0G/NP0 0603 | CAP CER 1PF 16V C0G/NP0 0603 |
| Series | Walsin Technology Corporation | Passive Plus | Walsin Technology Corporation | Walsin Technology Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
