Product CatalogPart Number
06FLZ-RSM1-TB
Manufacturer
JST Sales America Inc.Description
CONN FFC BOTTOM 6POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
91,822 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
06FLZ-RSM1-TB
06FLZ-RSM1-TB
lmages are for reference only.Payment Methods
Delivery Services
6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
06FLZ-RSM1-TB
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | JST Sales America Inc. |
| Series | FLZ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin-Lead |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Gray |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |

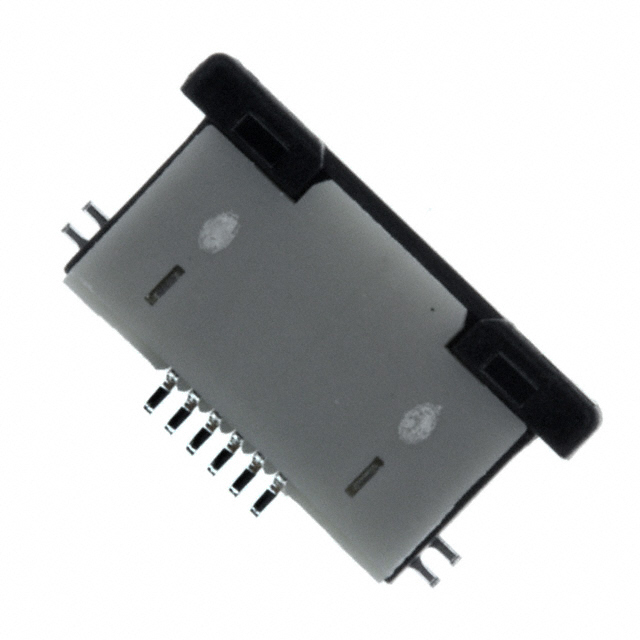

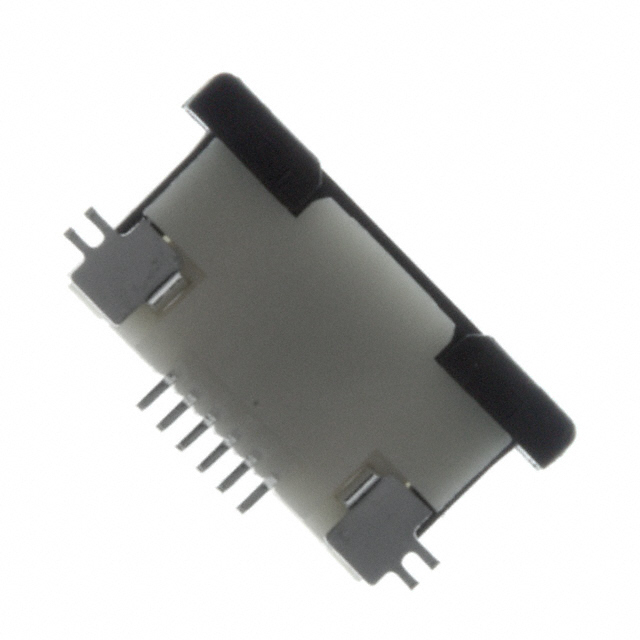

| Part Number | 06FLZ-RSM2-TB | 06FDZ-BT(S)(LF)(SN) | 06FLZ-SM1-TB | 06FLZ-SM2-TB |
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | CONN FFC BOTTOM 6POS 0.5MM R/A | CONN FPC VERT 6POS 2.54MM PCB | CONN FFC FPC TOP 6POS 0.5MM R/A | CONN FFC FPC TOP 6POS 0.5MM R/A |
| Series | FLZ | FDZ | FLZ | FLZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
