101 nH @ 100 MHz 2 Line Common Mode Choke Surface Mount 520 Ohms @ 2.5 GHz 500mA DCR 220mOhm

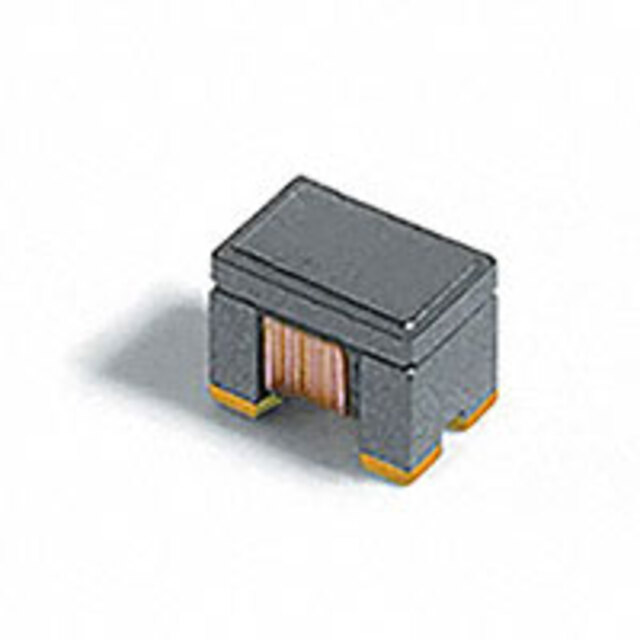

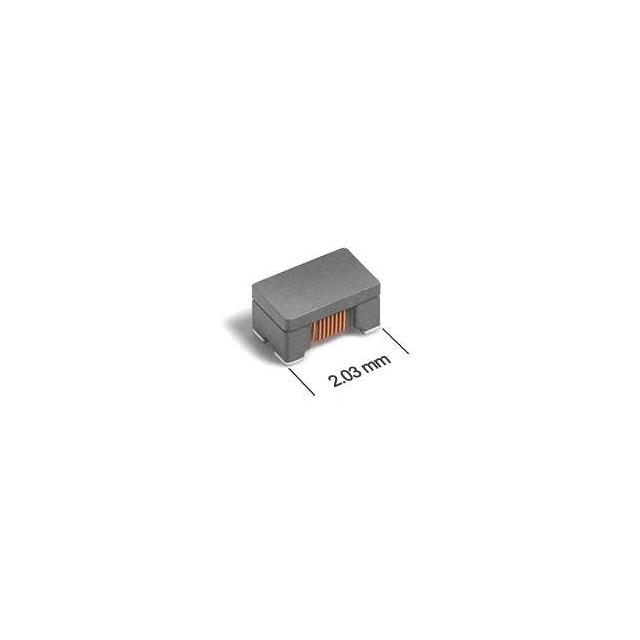

0805USBF-172MRC
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Coilcraft |
| Series | 0805USBF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 101 nH @ 100 MHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 220mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height (Max) | 0.055" (1.40mm) |
| Package / Case | 0805 (2012 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 520 Ohms @ 2.5 GHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0805USBF-262MRC | 0805USBF-372MRC | 0805USBF-421MRC | 0805USBF-502MRC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | |||
| Description | CMC 500MA 2LN 690 OHM SMD | CMC 500MA 2LN 930 OHM SMD | CMC 500MA 2LN 140 OHM SMD | CMC 500MA 2LN 1.22 OHM SMD |
| Series | 0805USBF | 0805USBF | 0805USBF | 0805USBF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
