Product CatalogPart Number
0874380733
Manufacturer
MolexDescription

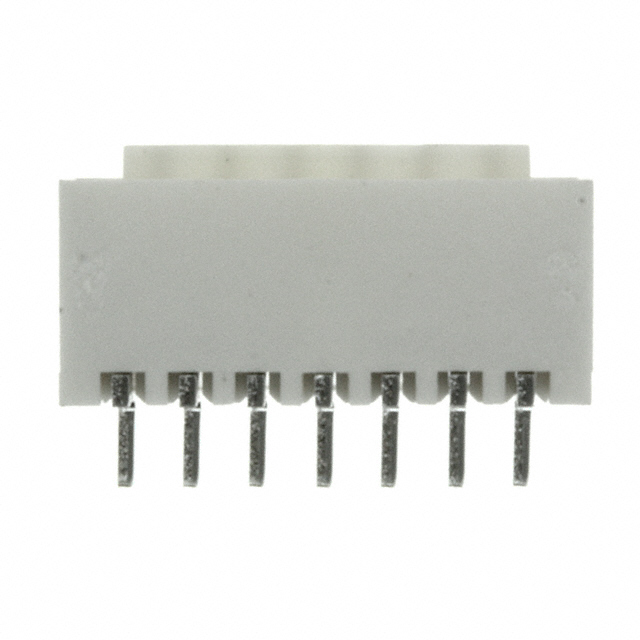

CONN HEADER SMD R/A 7POS 1.5MM
Datasheet
DatasheetPackage
-
In Stock
54,737 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0874380733
0874380733
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 7 position 0.059" (1.50mm)
Quick Inquiry
0874380733
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | Pico-SPOX 87438 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.106" (2.70mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.175" (4.45mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Material | Brass Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | General Purpose, Medical |
| Base Product Number | 087438 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

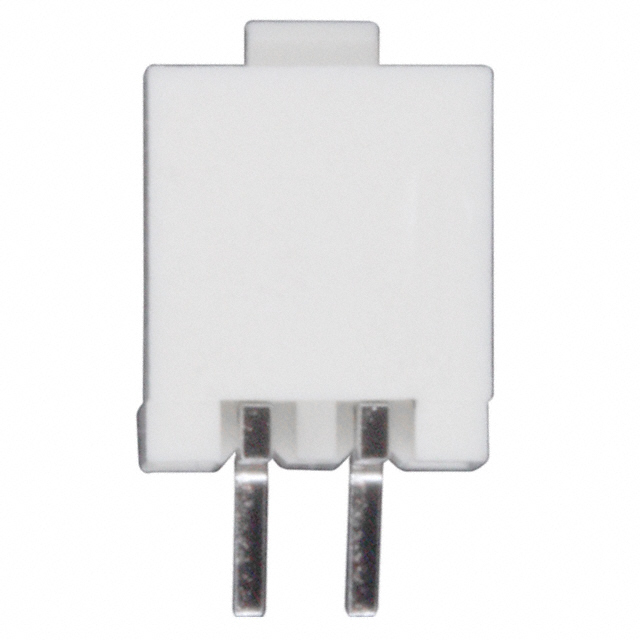

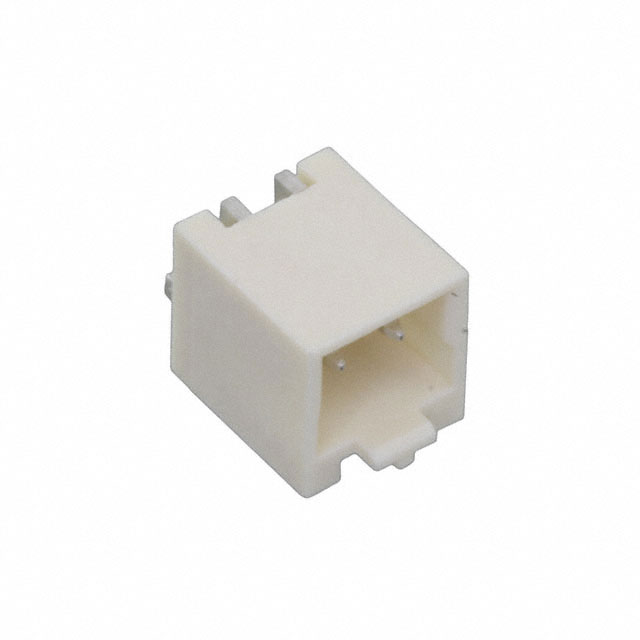

| Part Number | 0874380233 | 0874380242 | 0874380243 | 0874380262 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER SMD R/A 2POS 1.5MM | CONN HEADER SMD R/A 2POS 1.5MM | CONN HEADER SMD R/A 2POS 1.5MM | CONN HEADER SMD R/A 2POS 1.5MM |
| Series | Pico-SPOX 87438 | Pico-SPOX 87438 | Pico-SPOX 87438 | Pico-SPOX 87438 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
Customers Also Interested in
Recommended Products
0874370233
Molex
0874370242
Molex

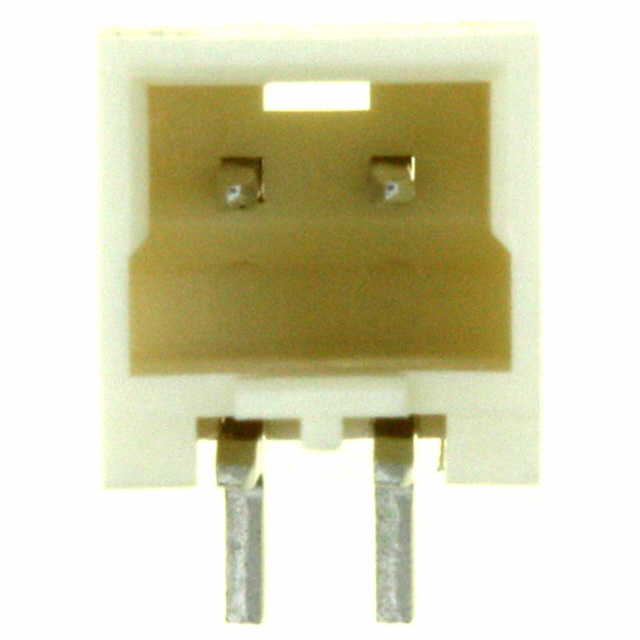

0874370243
Molex
0874370252
Molex
0874370263
Molex

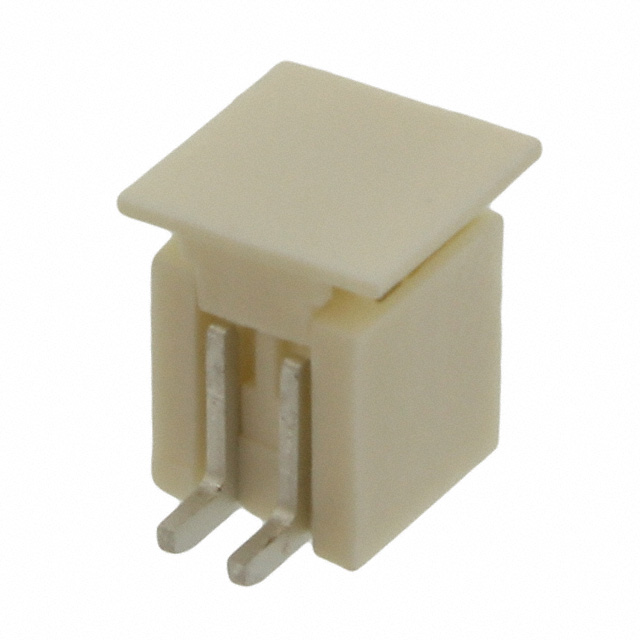

0874370273
Molex
0874370333
Molex

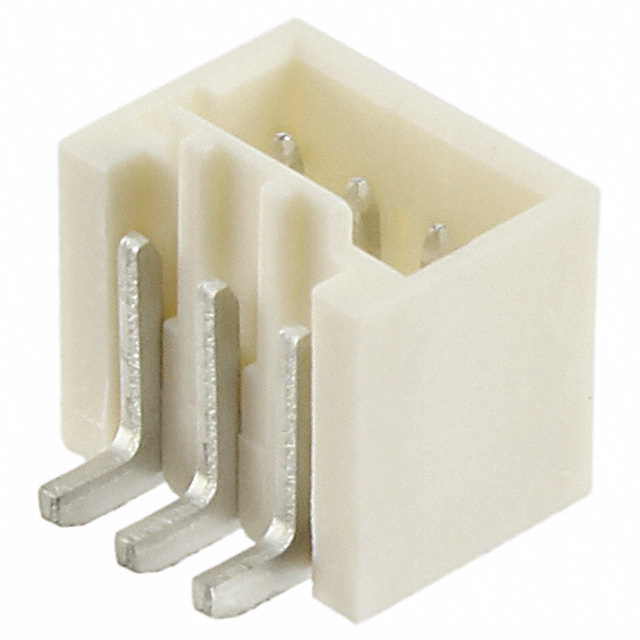

0874370342
Molex

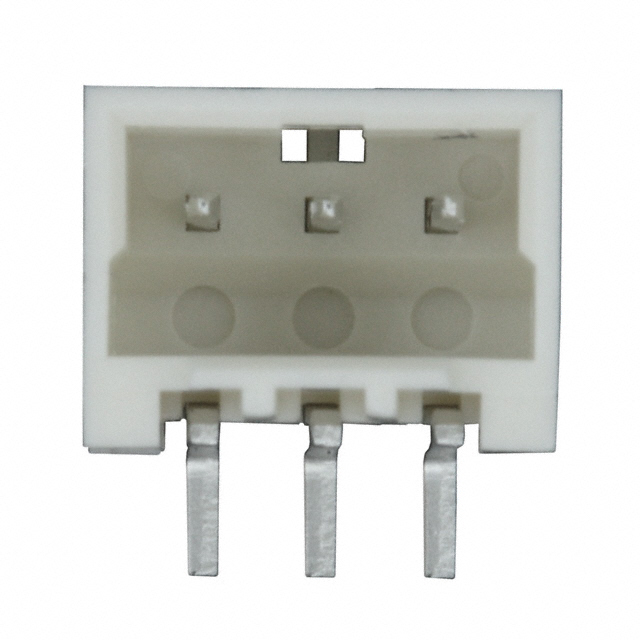

0874370343
Molex

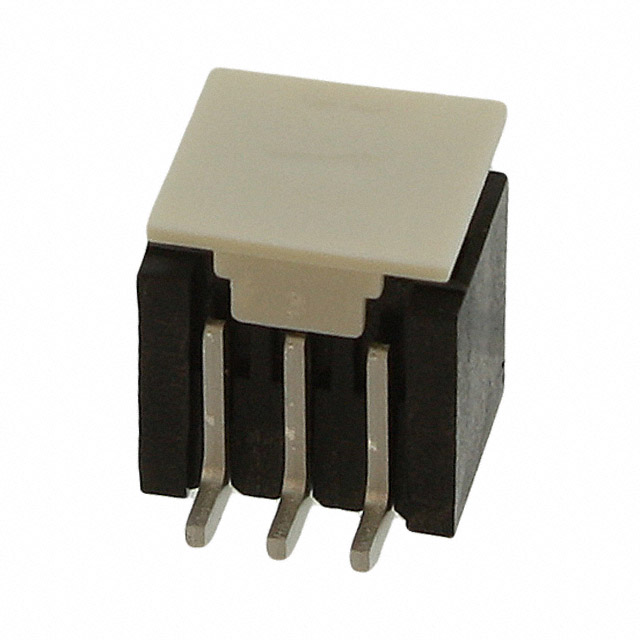

0874370363
Molex

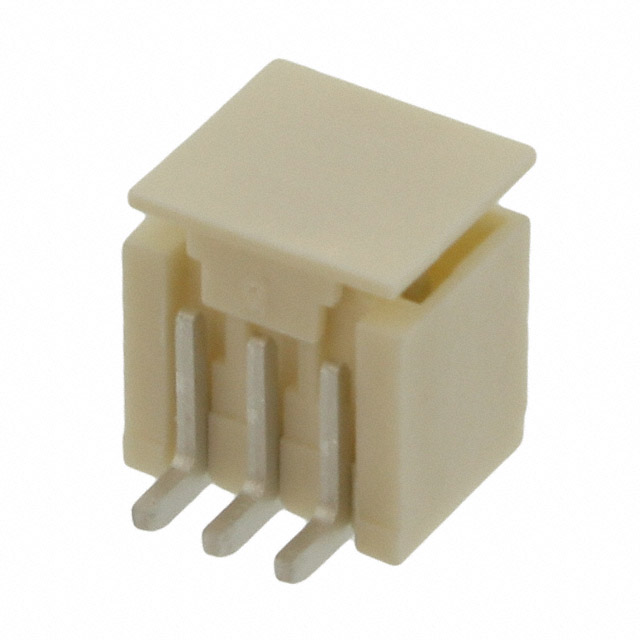

0874370373
Molex
0874370433
Molex
0874370442
Molex

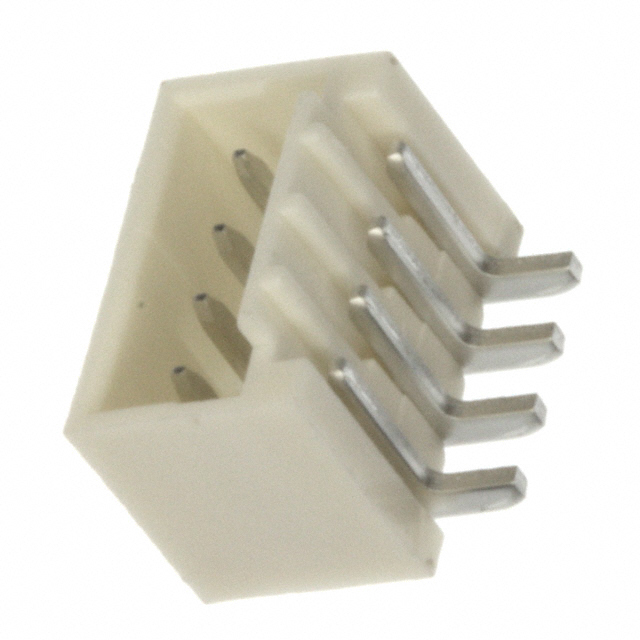

0874370443
Molex
0874370452
Molex

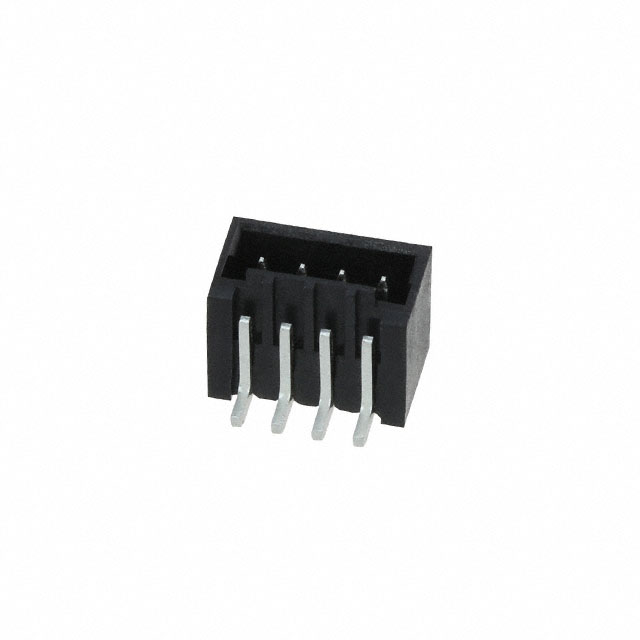

0874370463
Molex

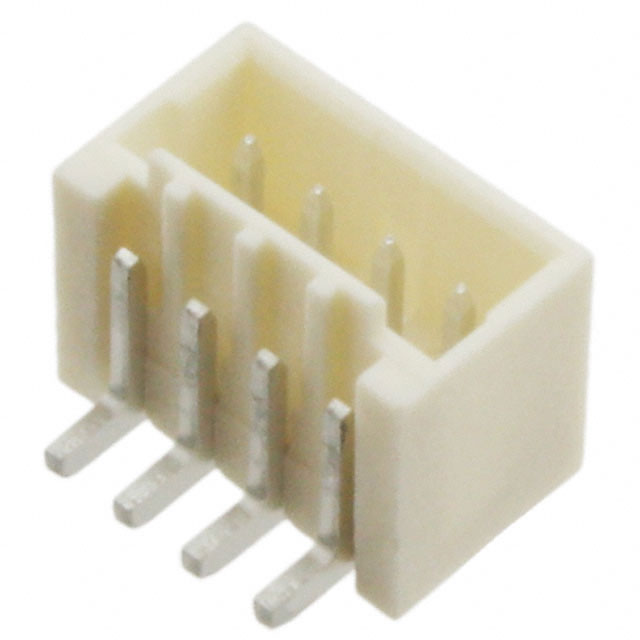

0874370473
