Product CatalogPart Number
08CH-A-05-IDC
Manufacturer
Adam TechDescription
WIRE TO BOARD CRIMP HOUSING 5P 0
Datasheet
DatasheetPackage
-
In Stock
41,285 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
08CH-A-05-IDC
08CH-A-05-IDC
lmages are for reference only.Payment Methods
Delivery Services
5 Position Rectangular Receptacle Connector IDC Tin 32-36 AWG
Quick Inquiry
08CH-A-05-IDC
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Free Hanging-Panel Mount |
| Manufacturer | Adam Tech |
| Series | 08CH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 5 |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Friction Lock |
| Cable Termination | IDC |
| Wire Type | Discrete |
| Wire Gauge | 32-36 AWG |
| Features | Closed End |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Color | Natural |
| Base Product Number | 08CH-A |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 08CH-A-05-G-IDC | 08CH-A-02-G-IDC | 08CH-A-02-IDC | 08CH-A-03-G-IDC |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | WIRE TO BOARD CRIMP HOUSING 5P | WIRE TO BOARD CRIMP HOUSING 2P | WIRE TO BOARD CRIMP HOUSING 2P 0 | WIRE TO BOARD CRIMP HOUSING 3P |
| Series | 08CH | 08CH | 08CH | 08CH |
| Packaging | Bag | Bag | Bag | Bag |
Customers Also Interested in
Recommended Products
08CH-A-02-G-IDC
Adam Tech
08CH-A-02-IDC
Adam Tech
08CH-A-03-G-IDC
Adam Tech
08CH-A-03-IDC
Adam Tech
08CH-A-04-G-IDC
Adam Tech
08CH-A-04-IDC
Adam Tech
08CH-A-05-G-IDC
Adam Tech

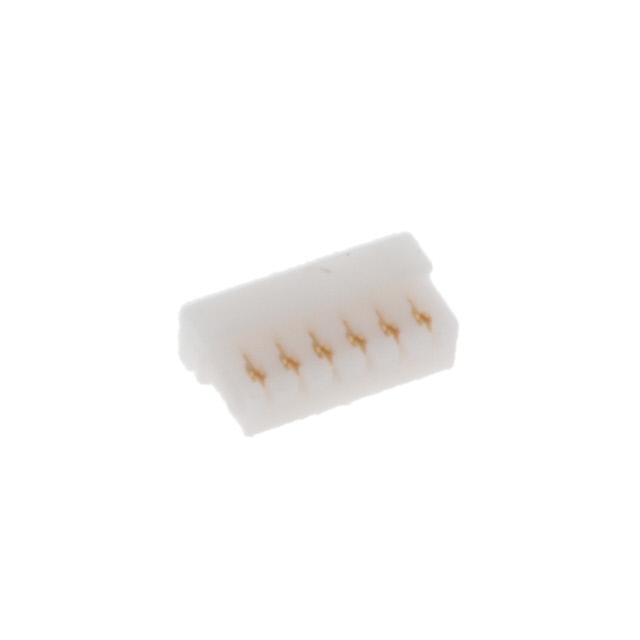

08CH-A-06-G-IDC
Adam Tech
08CH-A-06-IDC
Adam Tech
08CH-A-08-G-IDC
Adam Tech
08CH-A-08-IDC
Adam Tech
08CH-A-09-G-IDC
Adam Tech

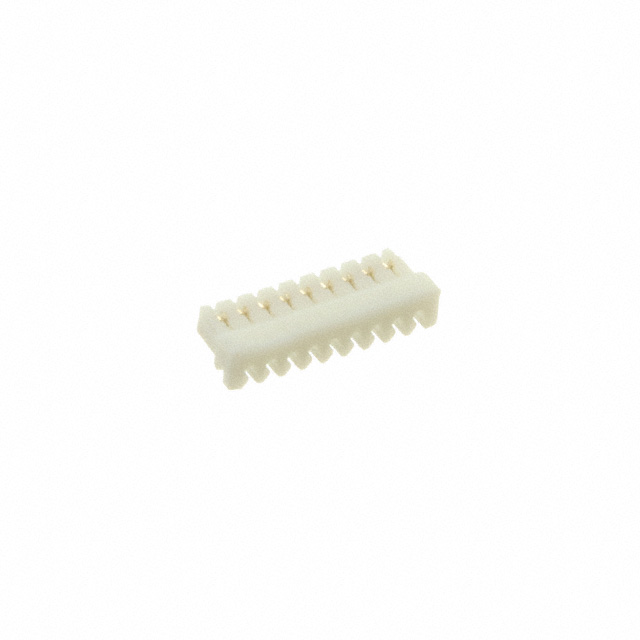

08CH-A-09-IDC
