0900BL15D0050001E
lmages are for reference only.0900BL15D0050001E
900MHZ 1:2 BALUN
Datasheet0805 (2012 Metric), 6 PC Pad
57,878 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 800MHz ~ 1GHz 50 / 50Ohm 0805 (2012 Metric), 6 PC Pad
0900BL15D0050001E
| Category | RF and Wireless - Balun - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 800MHz ~ 1GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 180° ±10 |
| Insertion Loss (Max) | 1.2dB |
| Return Loss (Min) | 9.5dB |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

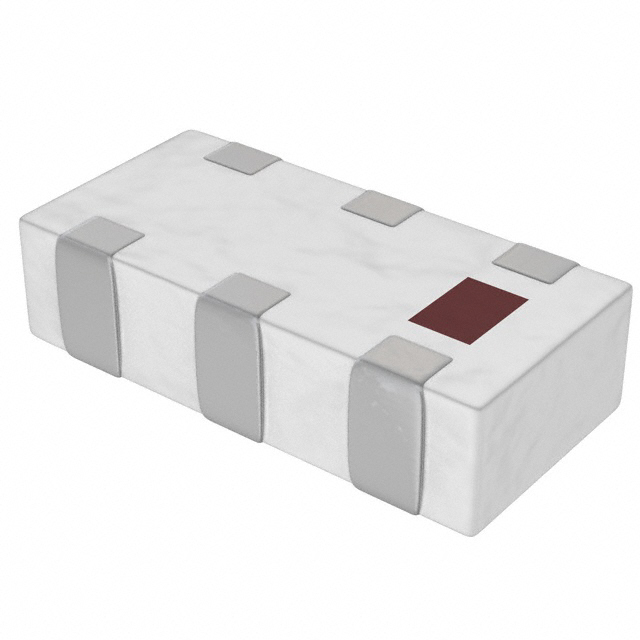

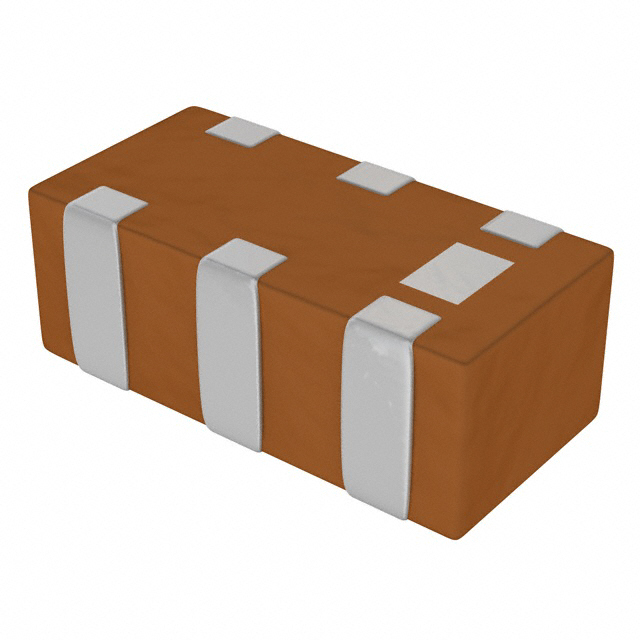

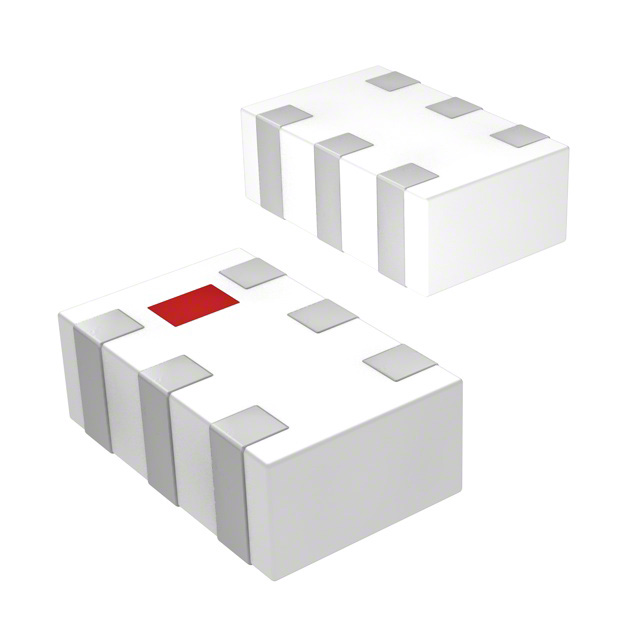

| Part Number | 0900BL15A0100001E | 0900BL15C0050001E | 0900BL18B0100001E | 0900BL18B0100001R |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BALUN 900MHZ-1GHZ 50/100 0805 | BALUN 800MHZ-1GHZ 50/50 0805 | BALUN 800MHZ-1GHZ 50/100 1206 | BALUN 800MHZ-1GHZ 50/100 1206 |
| Series | - | 0900 | 0900 | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
