Product CatalogPart Number
0901310140
Manufacturer
MolexDescription
CONN HEADER VERT 40POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
82,986 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0901310140
0901310140
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 40 position 0.100" (2.54mm)
Quick Inquiry
0901310140
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | C-Grid III 90131 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.266" (6.75mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | 0.478" (12.15mm) |
| Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Applications | Automotive, General Purpose |
| Base Product Number | 090131 |
Parts with Similar Specifications
| Product Attribute | |  |  |  |
| Part Number | 0901310140 | 0901310141 | 0901310142 | 0901310143 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 40POS 2.54MM | CONN HEADER VERT 42POS 2.54MM | CONN HEADER VERT 44POS 2.54MM | CONN HEADER VERT 46POS 2.54MM |
| Series | C-Grid III 90131 | C-Grid III 90131 | C-Grid III 90131 | C-Grid III 90131 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
0901300008
Molex

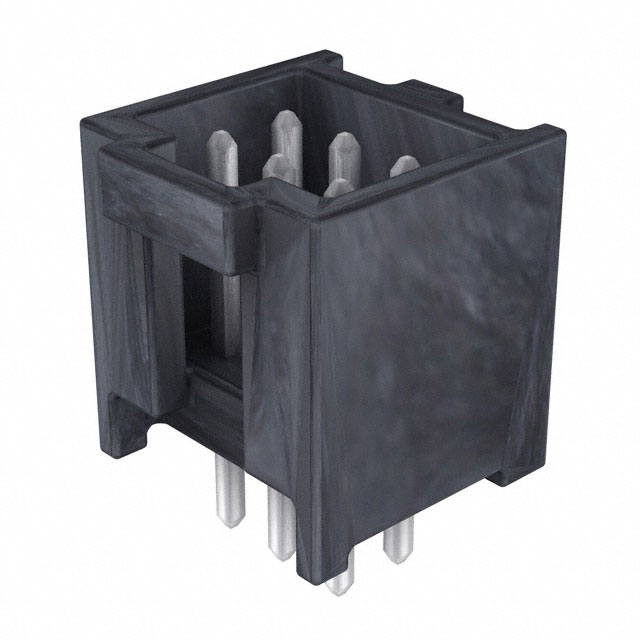

0901301106
Molex

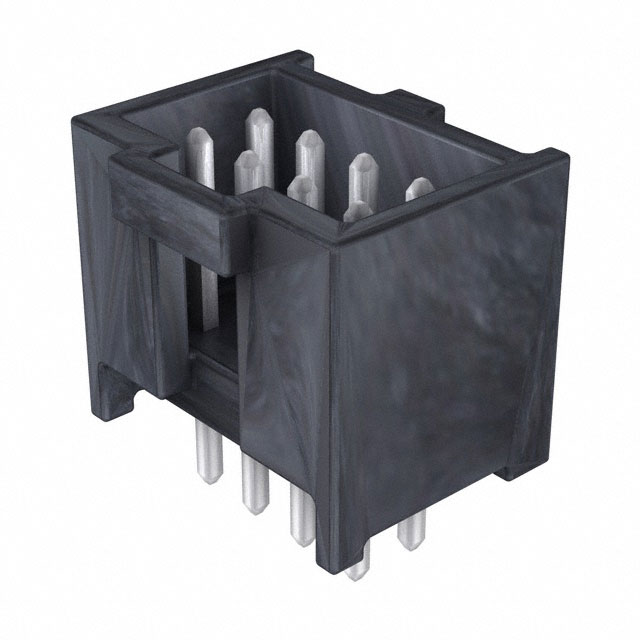

0901301108
Molex

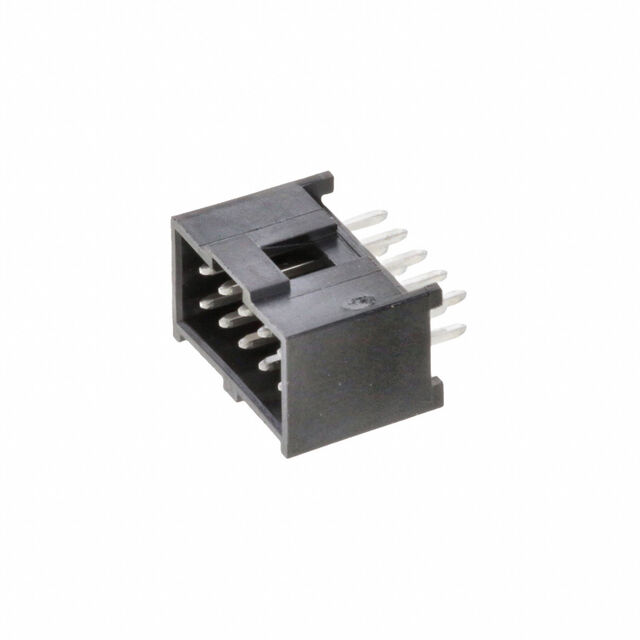

0901301110
Molex

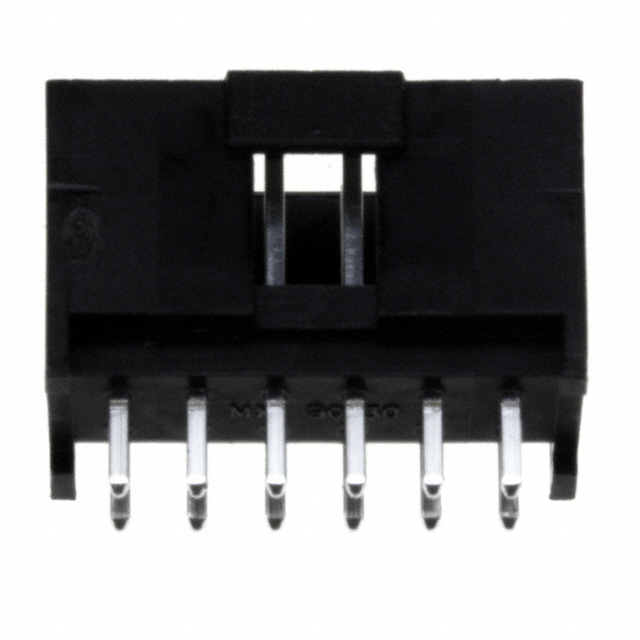

0901301112
Molex
0901301114
Molex
0901301116
Molex
0901301118
Molex
0901301120
Molex
0901301124
Molex
0901301126
Molex
0901301128
Molex
0901301130
Molex
0901301132
Molex
0901301134
Molex
0901301138
Molex
0901301140
Molex

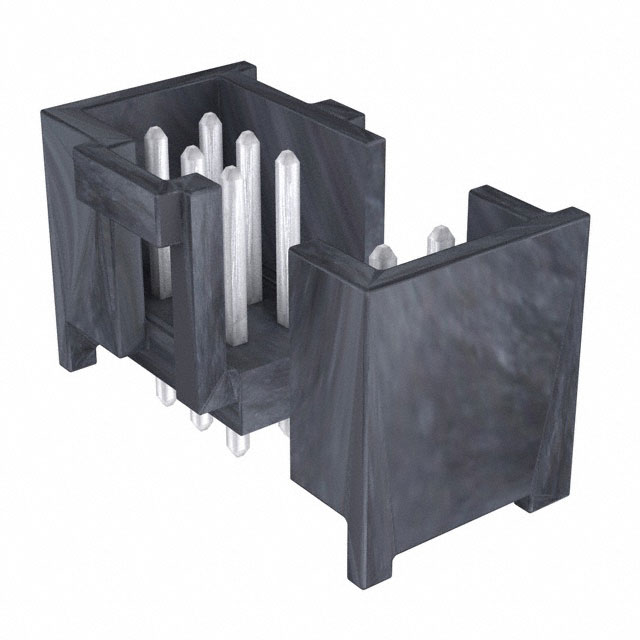

0901301144
