Product CatalogPart Number
09200-71-BDGB00
Manufacturer
METZ CONNECT USA Inc.Description
MINI JUMPER, SHUNT, 2.54MM, W/HA
Datasheet
DatasheetPackage
-
In Stock
11,529 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
09200-71-BDGB00
09200-71-BDGB00
lmages are for reference only.Payment Methods
Delivery Services
2 (1 x 2) Position Shunt Connector Black Open Top, Grip 0.100" (2.54mm) Gold
Quick Inquiry
09200-71-BDGB00
Specifications
| Category | Connectors, Interconnects - Shunts-Jumpers - |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Open Top, Grip |
| Gender | Female Sockets |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Pitch | 0.100" (2.54mm) |
| Height | 0.531" (13.50mm) |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Base Product Number | 09200-71 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

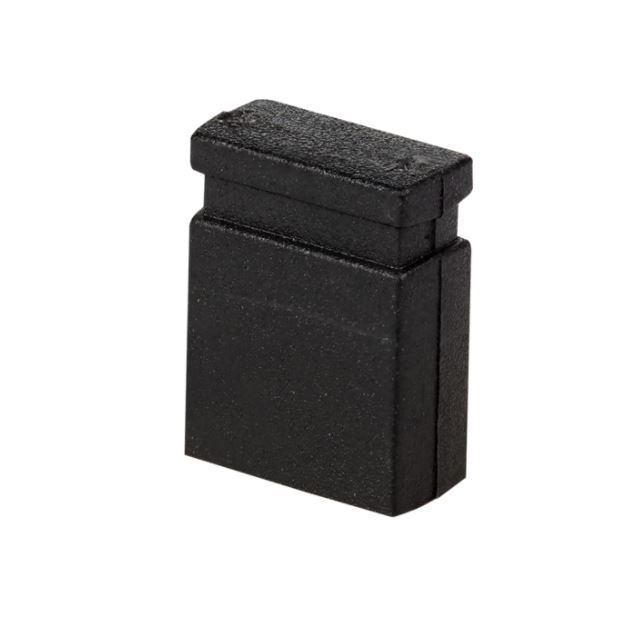

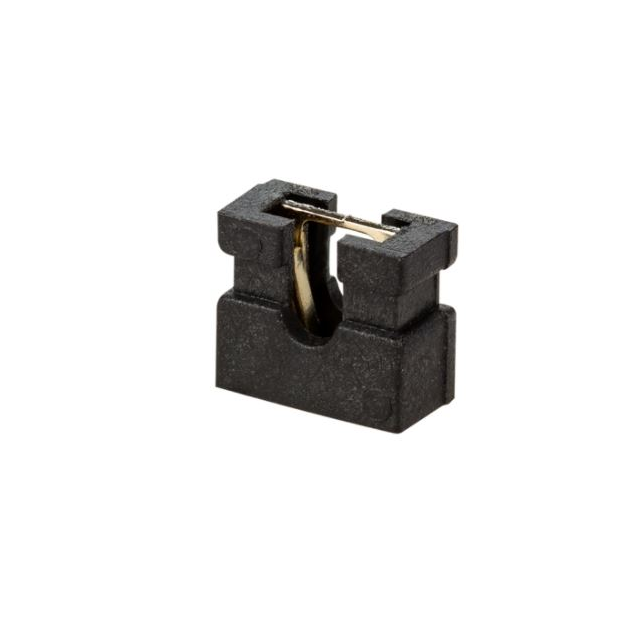

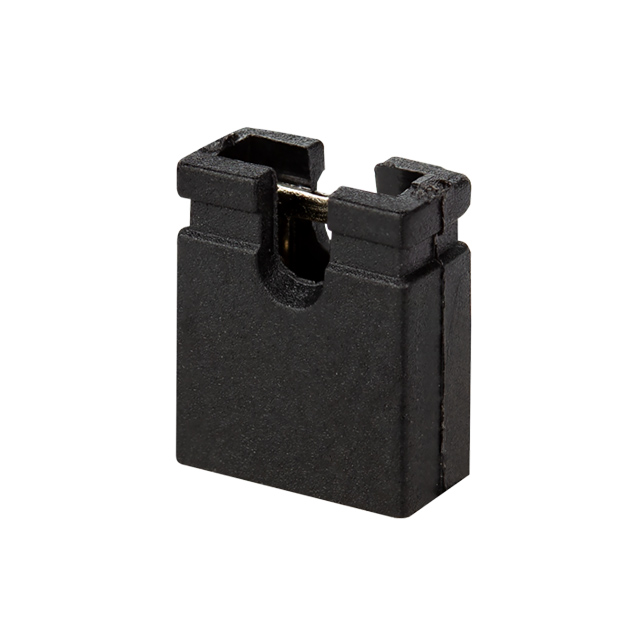

| Part Number | 09200-71-BAGB00 | 09200-71-BBGB00 | 09200-72-PBGB0B | 09200-72-PCGB0B |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MINI JUMPER, SHUNT, 2.54MM, CLOS | MINI JUMPER, SHUNT, 2.54MM, OPEN | MINI JUMPER, SHUNT, 2.00MM, OPEN | MINI JUMPER, SHUNT, 2.00MM, CLOS |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
