0ACJ-7500-TE

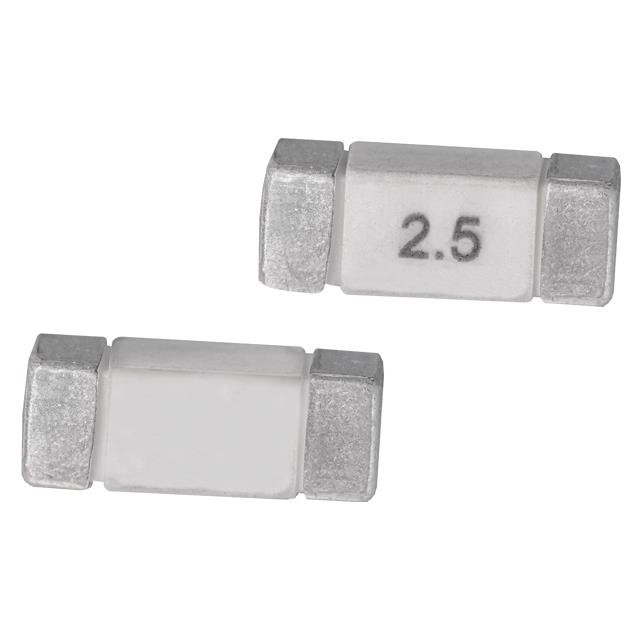

lmages are for reference only.0ACJ-7500-TE
FUSE BRD MT 7.5A 350VAC 400VDC
Datasheet2-SMD, Square End Block
79,364 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.5 A 350 V AC 400 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
0ACJ-7500-TE
| Category | Circuit Protection - Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ACJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 7.5 A |
| Voltage Rating - AC | 350 V |
| Voltage Rating - DC | 400 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 100A AC, 200A DC |
| Melting I²t | 25.0 |
| Approval Agency | cURus |
| Operating Temperature | -40°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.520" L x 0.199" W x 0.199" H (13.20mm x 5.05mm x 5.05mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.0135 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ABA-0200-TN | 0ABA-0250-TN | 0ABA-0315-TN | 0ABA-0375-TN |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOARD MNT 200MA 32VDC 0402 | FUSE BOARD MNT 250MA 32VDC 0402 | FUSE BOARD MNT 315MA 32VDC 0402 | FUSE BOARD MNT 375MA 32VDC 0402 |
| Series | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
