0AKLB9100-PD
lmages are for reference only.0AKLB9100-PD
FUSE 10A 1000V STUD MNT
DatasheetCylindrical, Blade Terminal (Bolt)
33,434 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10A 1 kVDC Fuse Cartridge Bolt Mount
0AKLB9100-PD
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0AKL |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 10A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 50kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.413" Dia x 1.535" L (10.50mm x 39.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 120.0 |
| DC Cold Resistance | 0.0125 Ohms |
| Product Attribute |  |
 |
 |
 |

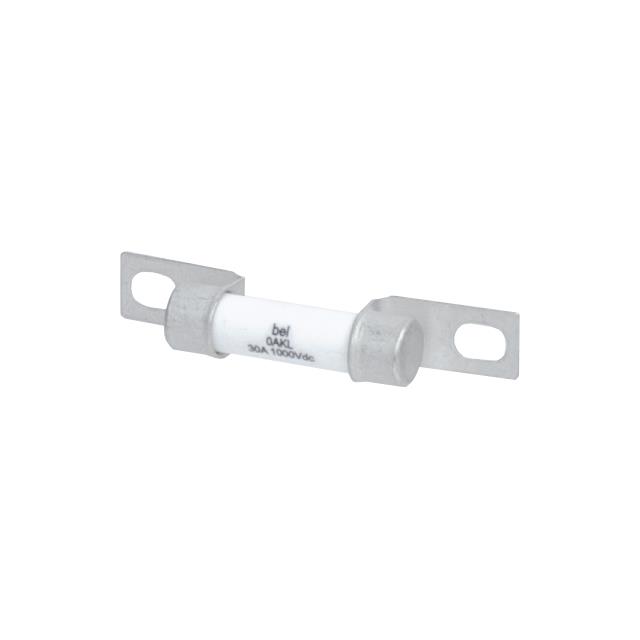

| Part Number | 0AKLB9150-PD | 0AKLB9200-PD | 0AKLB9250-PD | 0AKLB9300-PD |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE 15A 1000V STUD MNT | FUSE 20A 1000V STUD MNT | FUSE 25A 1000V STUD MNT | FUSE 30A 1000V STUD MNT |
| Series | 0AKL | 0AKL | 0AKL | 0AKL |
| Packaging | Box | Box | Box | Box |
