0ALDW9400-BE

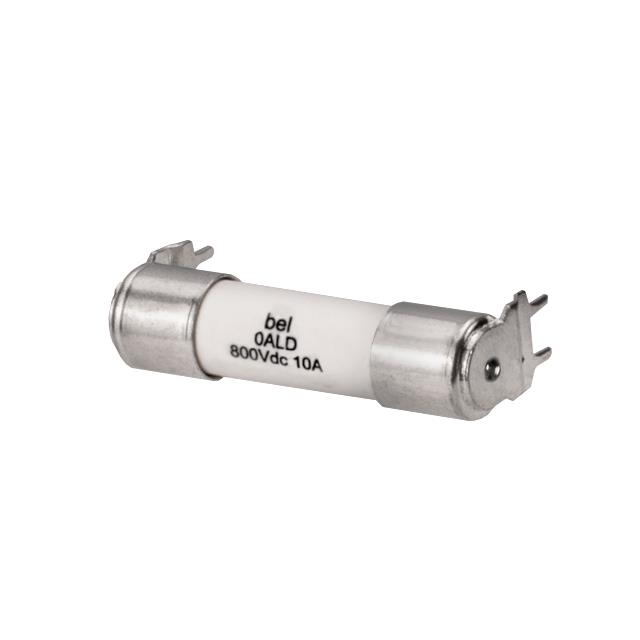

lmages are for reference only.0ALDW9400-BE
800V-RATED FUSE FOR EV/HEV ACCES
DatasheetRadial Bend Cylinder
97,139 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40A 800 VDC Fuse Cartridge Through Hole
0ALDW9400-BE
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ALD |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 40A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 50kA |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension | 0.453" Dia x 1.546" L (11.50mm x 39.26mm) |
| Base Product Number | - |
| Voltage Rating - DC | 800 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 1760.0 |
| DC Cold Resistance | 0.0022 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ALDW9100-BE | 0ALDW9150-BE | 0ALDW9200-BE | 0ALDW9250-BE |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 800V-RATED FUSE FOR EV/HEV ACCES | 800V-RATED FUSE FOR EV/HEV ACCES | 800V-RATED FUSE FOR EV/HEV ACCES | 800V-RATED FUSE FOR EV/HEV ACCES |
| Series | 0ALD | 0ALD | 0ALD | 0ALD |
| Packaging | Box | Box | Box | Box |
