0ZCC0150AF2C
lmages are for reference only.0ZCC0150AF2C
PTC RESET FUSE 12V 1.5A 1812
Datasheet1812 (4532 Metric), Concave
101,471 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 12V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
0ZCC0150AF2C
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | |
| Type | Polymeric |
| Voltage - Max | 12V |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.043" (1.10mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

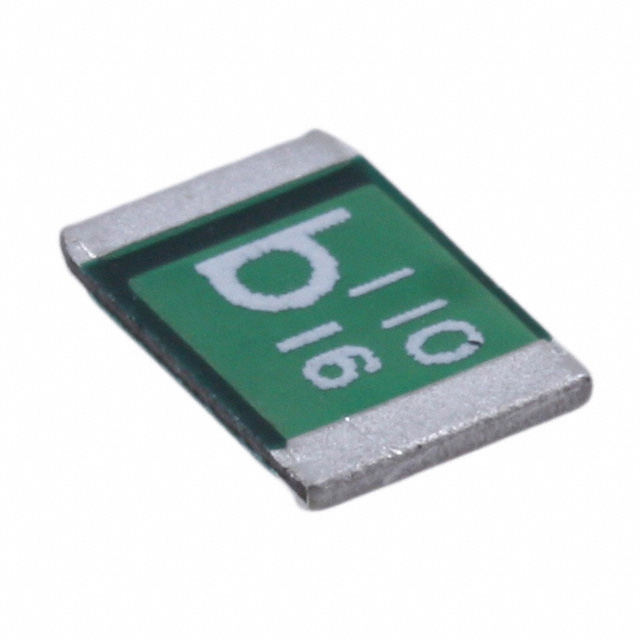

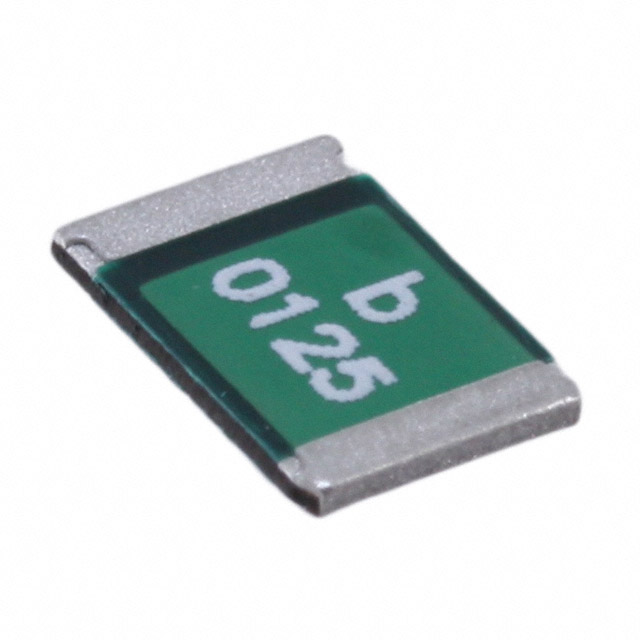

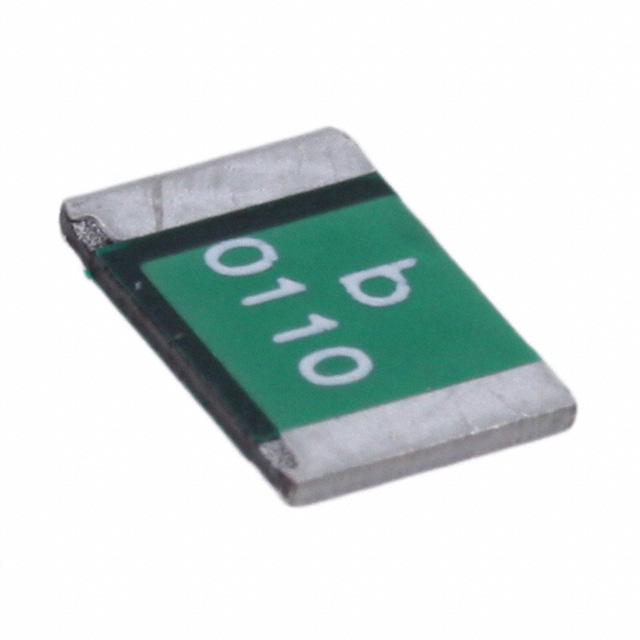

| Part Number | 0ZCC0110AF2C | 0ZCC0110BF2B | 0ZCC0110FF2C | 0ZCC0125FF2C |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ||||
| Description | PTC RESET FUSE 16V 1.1A 1812 | PTC RESET FUSE 24V 1.1A 1812 | PTC RESET FUSE 8V 1.1A 1812 | PTC RESET FUSE 6V 1.25A 1812 |
| Series | 0ZCC | 0ZCC | 0ZCC | 0ZCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
