0ZCJ0100FF2E

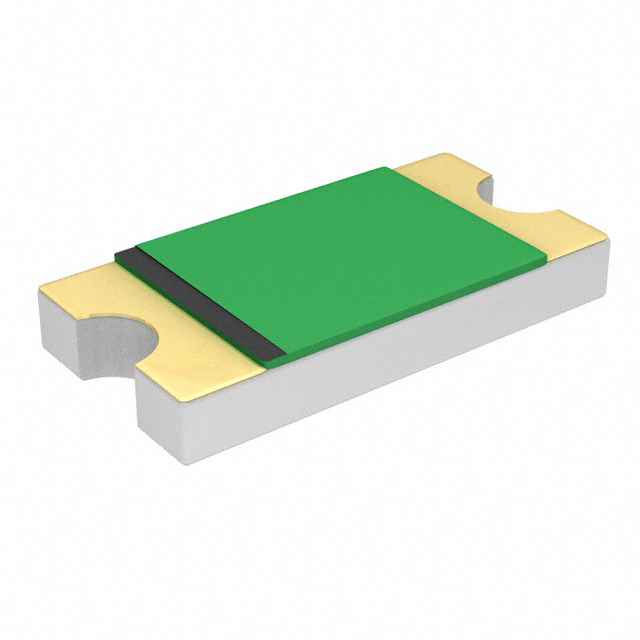

lmages are for reference only.0ZCJ0100FF2E
PTC RESET FUSE 6V 1A 1206
Datasheet1206 (3216 Metric), Concave
87,633 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 1 A Ih Surface Mount 1206 (3216 Metric), Concave
0ZCJ0100FF2E
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Trip (It) | 1.8 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
| Approval Agency | AEC-Q200, cURus, TUV |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 55 mOhms |
| Resistance - Post Trip (R1) (Max) | 210 mOhms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

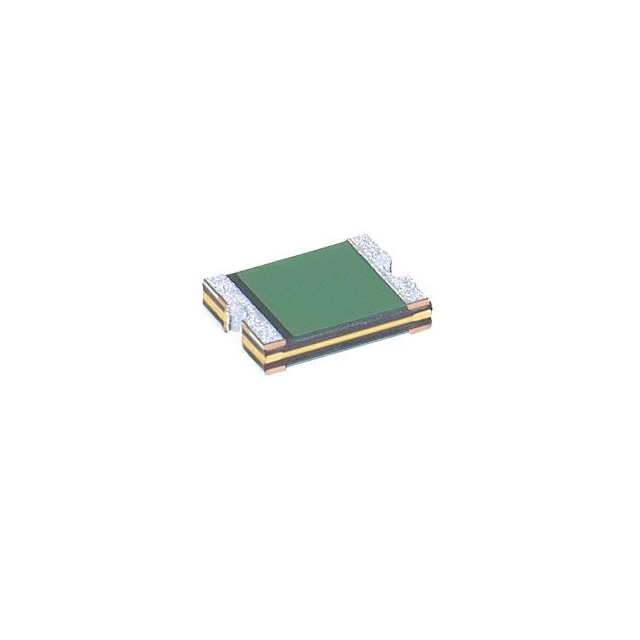

| Part Number | 0ZCJ0110AF2C | 0ZCJ0110FF2E | 0ZCJ0150FF2C | 0ZAF0005FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE | PTC RESET FUSE 8V 1.1A 1206 | PTC RESET FUSE 8V 1.5A 1206 | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | 0ZCJ | 0ZCJ | 0ZCJ | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
