Product CatalogPart Number
0ZRG0075FF1E
Manufacturer
Bel Fuse Inc.Description
PTC RESET FUSE 30V 750MA RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
25,473 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0ZRG0075FF1E
0ZRG0075FF1E
lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 750 mA Ih Through Hole Radial, Disc
Quick Inquiry
0ZRG0075FF1E
Specifications
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZRG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.3 A |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) |
| Height - Seated (Max) | 0.449" (11.40mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
| Approval Agency | cURus, TUV, UL |
| Time to Trip | 400 ms |
| Resistance - Initial (Ri) (Min) | 80 mOhms |
| Resistance - Post Trip (R1) (Max) | 230 mOhms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ZRG0075FF2E | 0ZRG0090FF1E | 0ZRG0090FF2E | 0ZAF0005FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 30V 750MA RADIAL | PTC RESET FUSE 30V 900MA RADIAL | PTC RESET FUSE 30V 900MA RADIAL | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | 0ZRG | 0ZRG | 0ZRG | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> |
Customers Also Interested in
Recommended Products
0ZRG0075FF2E
Bel Fuse Inc.
0ZRG0090FF1E
Bel Fuse Inc.
0ZRG0090FF2E
Bel Fuse Inc.
0ZRG0110FF1E
Bel Fuse Inc.
0ZRG0110FF2E
Bel Fuse Inc.
0ZRG0120FF1E
Bel Fuse Inc.
0ZRG0120FF2E
Bel Fuse Inc.

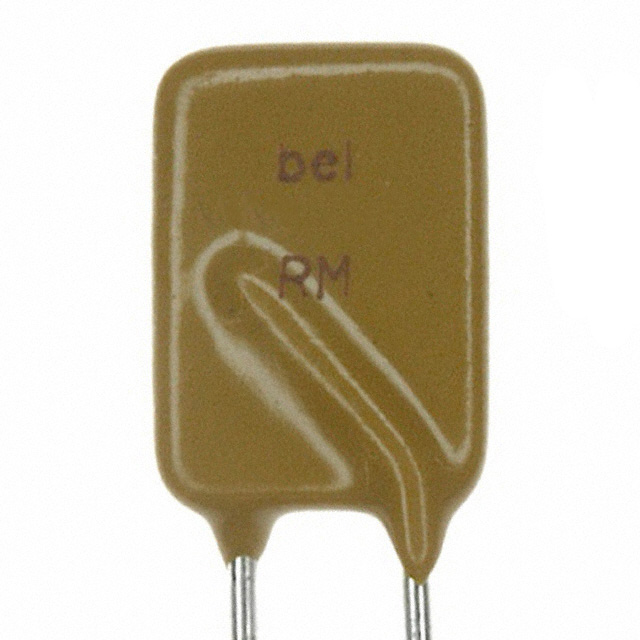

0ZRG0135FF1E
Bel Fuse Inc.
0ZRG0135FF2E
Bel Fuse Inc.
0ZRG0155FF1E
Bel Fuse Inc.

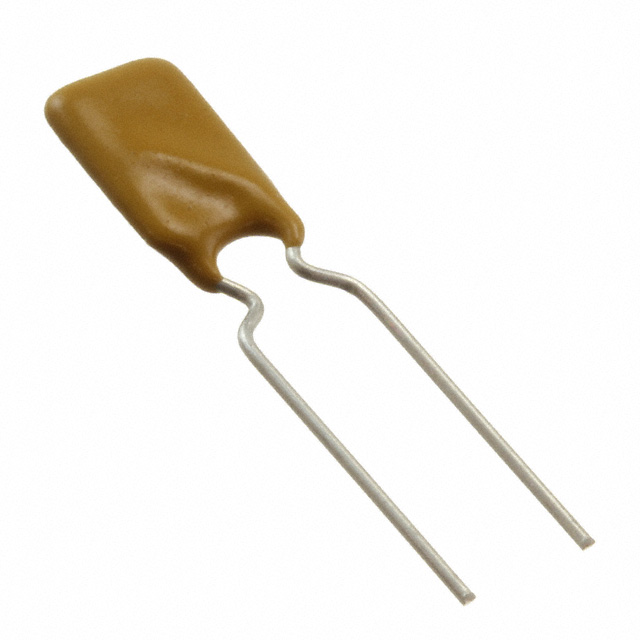

0ZRG0155FF2E
