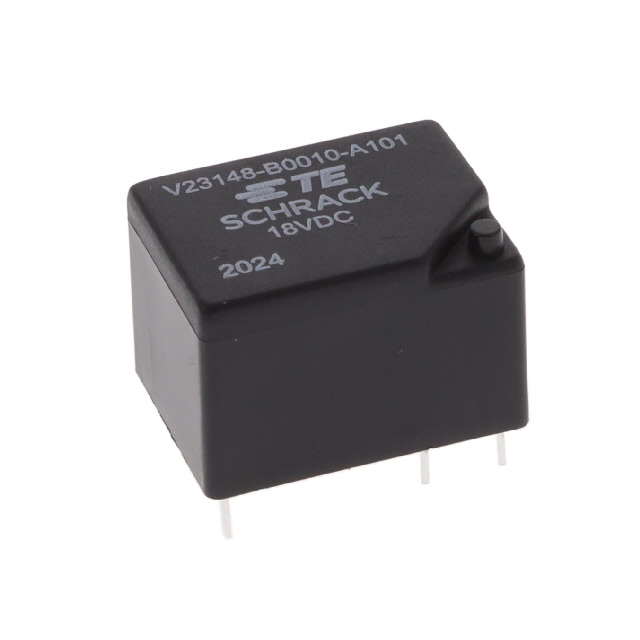

RELAY GEN PURPOSE SPST 7A 24V
Datasheet-
91,860 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
1-1393203-3
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23148, SCHRACK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 7 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2800VA |
| Coil Current | 18.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 5 ms |
| Release Time | 3 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.28 kOhms |
| Base Product Number | V23148 |
| Product Attribute | |
|
|
 |
| Part Number | 1-1393203-0 | 1-1393203-2 | 1-1393203-4 | 1-1393204-3 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE SPST 7A 12V | RELAY GEN PURPOSE SPST 7A 24V | RELAY GEN PURPOSE SPDT 7A 48V | V23148-B0008-A101 |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Tube |
