Product CatalogPart Number
1-1437579-9
Manufacturer
TE Connectivity ALCOSWITCH SwitchesDescription
SWITCH SLIDE DPDT 0.4VA 20V
Datasheet
DatasheetPackage
-
In Stock
45,893 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1-1437579-9
1-1437579-9
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch DPDT Through Hole
Quick Inquiry
1-1437579-9
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | TSS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Circuit | DPDT |
| Contact Timing | Non-Shorting (BBM) |
| Switch Function | On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Actuator Type | Standard |
| Actuator Length | 2.80mm |
| Contact Material | Copper |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Features | - |
| Operating Temperature | -20°C ~ 80°C |
| Actuator Material | Polyester |
| Switch Travel | 3.05mm |
| Mechanical Life | 60,000 Cycles |
| Electrical Life | 60,000 Cycles |
| Operating Force | 150 ~ 600gf |
| Base Product Number | 1437579 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

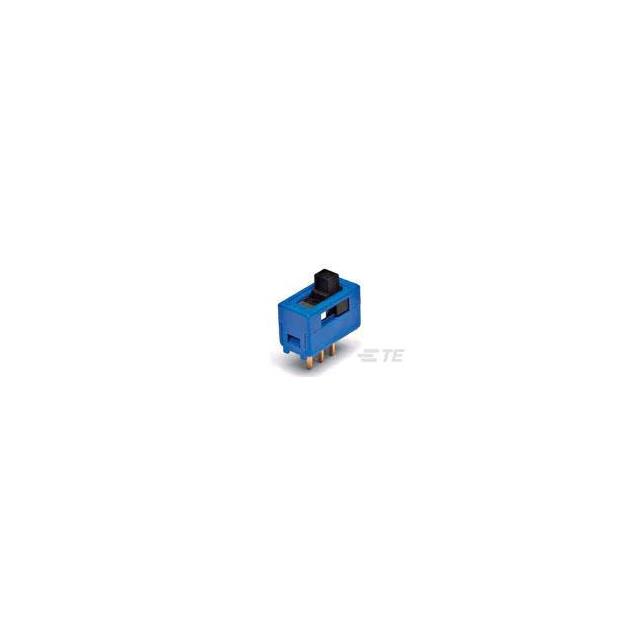

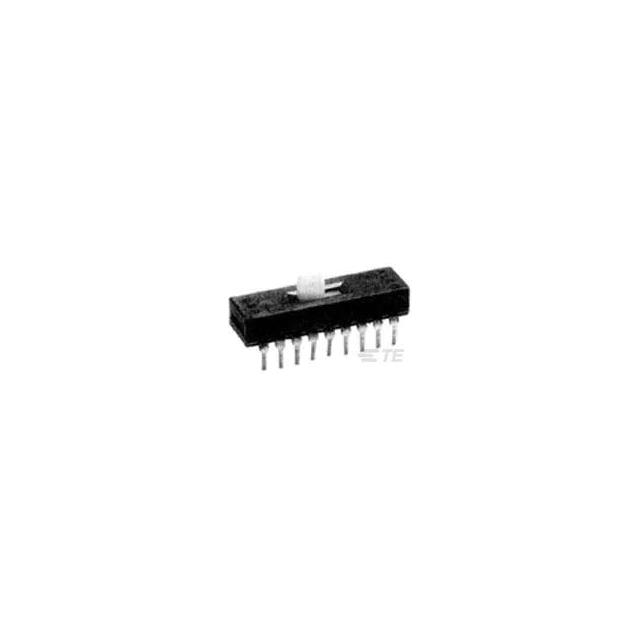

| Part Number | 1-1437579-0 | 1-1437580-9 | 1-1437581-1 | 1-1437581-4 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | SWITCH SLIDE SPDT 0.4VA 20V | SWITCH SLIDE SPDT 0.4VA 20V | SWITCH SLIDE DPDT 0.3A 115V | SWITCH SLIDE 4PDT 0.3A 115V |
| Series | TSS | MSSA-01 | ASE | ASE |
| Packaging | Box | Box | Box | Box |
