Connector Header Through Hole 25 position
1-1670615-2
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | MCP |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 25 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.268" (6.80mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -30°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | 1-1670615-1 | 10087119-244LF | 1718130003 | 178325-3 |
| Manufacturer | TE Connectivity Deutsch Connectors | Amphenol ICC (FCI) | Molex | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||

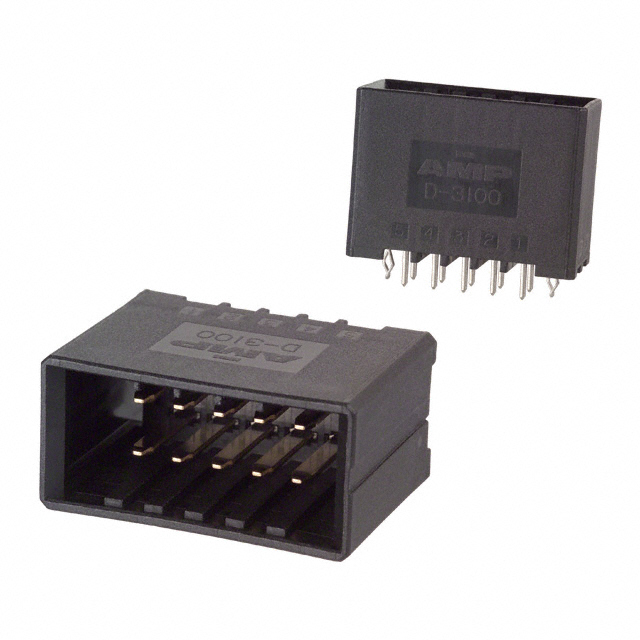

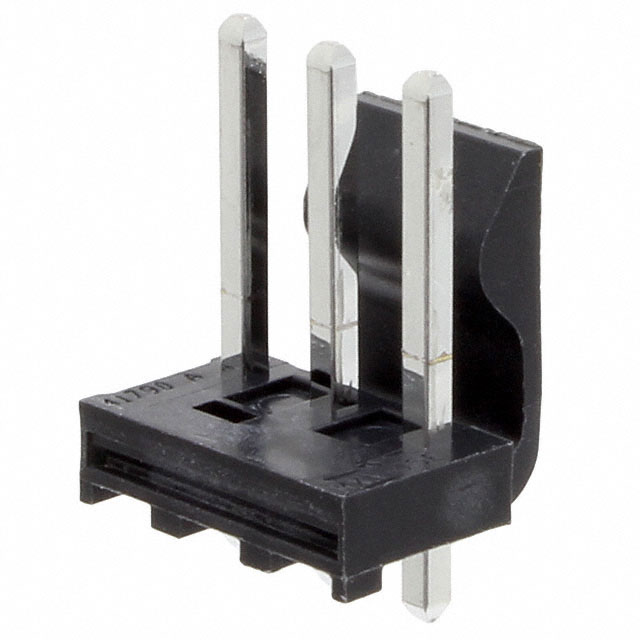

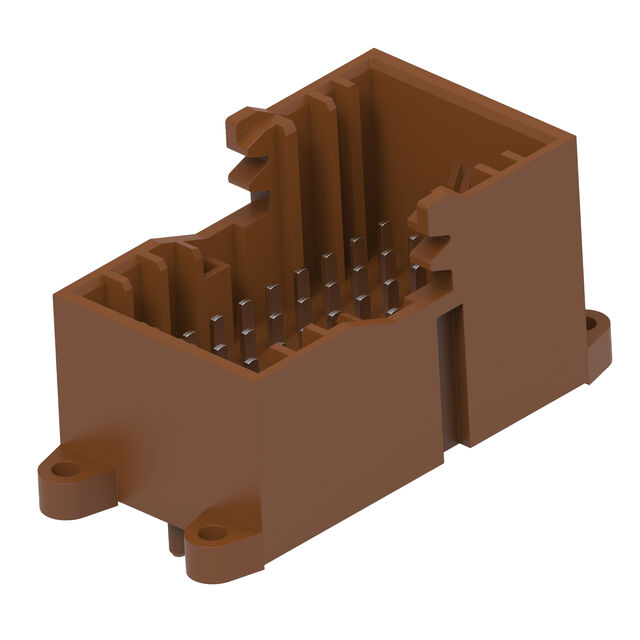

| Description | 36POS,MIXED,HEADER ASSY,CONV. KI | CONN HEADER VERT 44POS 2.54MM | CONN HEADER VERT 3POS 3.96MM | CONN HEADER VERT 10POS 3.81MM |
| Series | MCP | Quickie™ | KK396, 171813 | Dynamic D-3100 |
| Packaging | Box | Tube | Bulk | Bulk |
