Product CatalogPart Number
1-1986724-7
Manufacturer
TE Connectivity AMP ConnectorsDescription
TERM BLOCK PLUG 17POS STR 3.81MM
Datasheet
DatasheetPackage
-
In Stock
89,944 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1-1986724-7
1-1986724-7
lmages are for reference only.Payment Methods
Delivery Services
17 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Quick Inquiry
1-1986724-7
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 1986724 |
| Type | Plug, Female Sockets |
| Number of Positions | 17 |
| Positions Per Level | 17 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 110°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 0.459" (11.66mm) |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

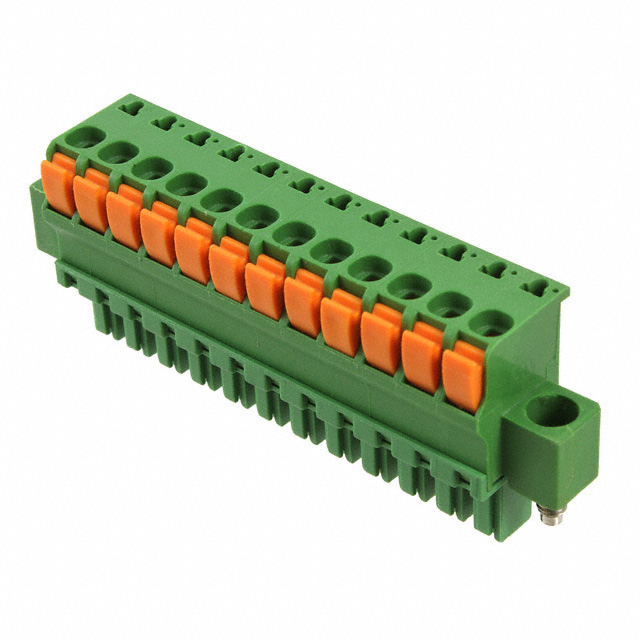

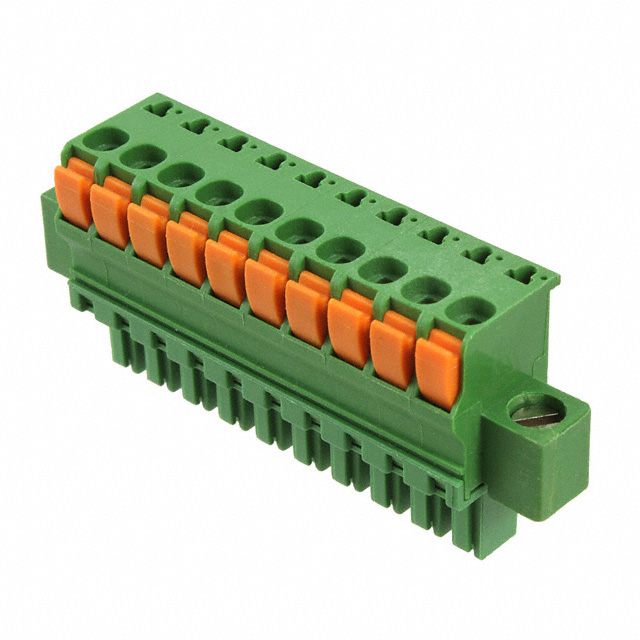

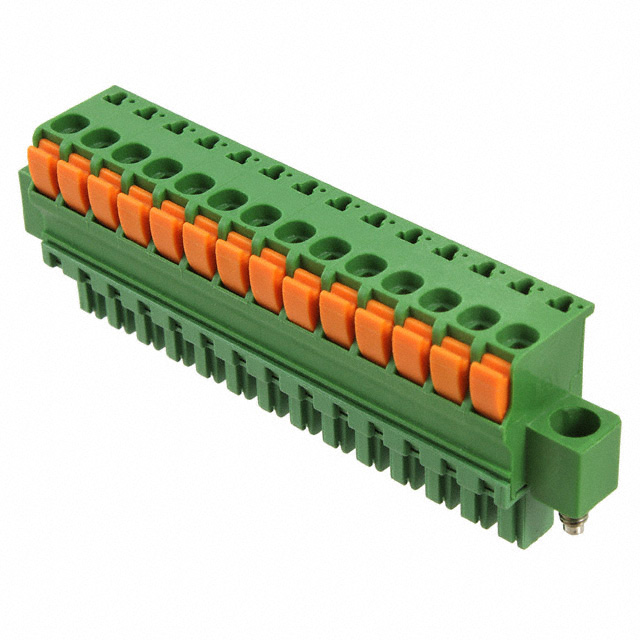

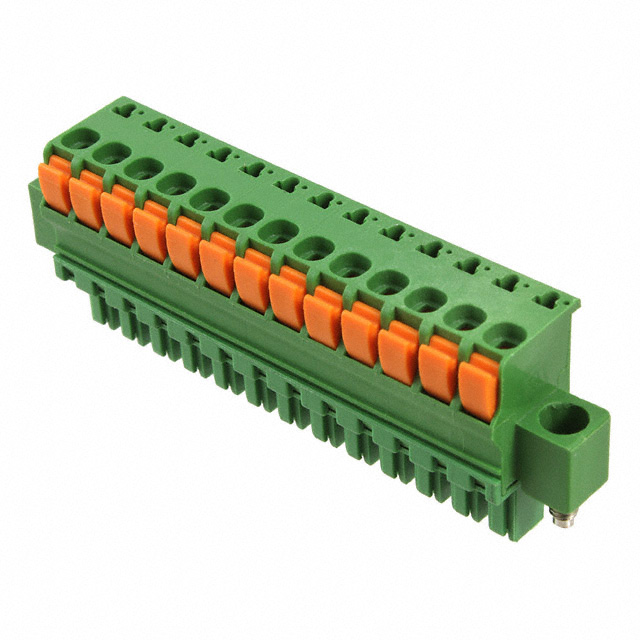

| Part Number | 1-1986724-0 | 1-1986724-2 | 1-1986724-3 | 1-1986724-4 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TERM BLOCK PLUG 10POS STR 3.81MM | TERM BLOCK PLUG 12POS STR 3.81MM | TERM BLOCK PLUG 13POS STR 3.81MM | TERM BLOCK PLUG 14POS STR 3.81MM |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Box | Box |
Customers Also Interested in
Recommended Products
1-1986160-2
TE Connectivity AMP Connectors
1-1986160-3
TE Connectivity AMP Connectors
1-1986160-4
TE Connectivity AMP Connectors
1-1986160-5
TE Connectivity AMP Connectors
1-1986160-6
TE Connectivity AMP Connectors

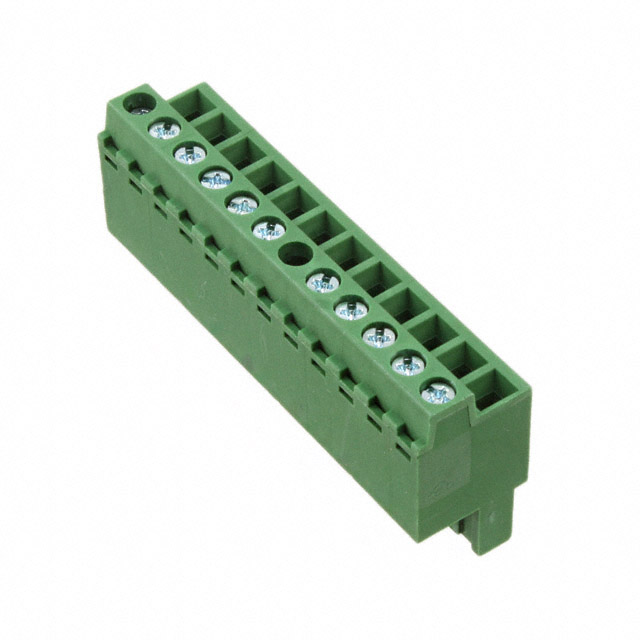

1-1986300-2
TE Connectivity AMP Connectors
1-1986343-8
TE Connectivity AMP Connectors
1-1986345-8
TE Connectivity AMP Connectors
1-1986368-0
TE Connectivity AMP Connectors

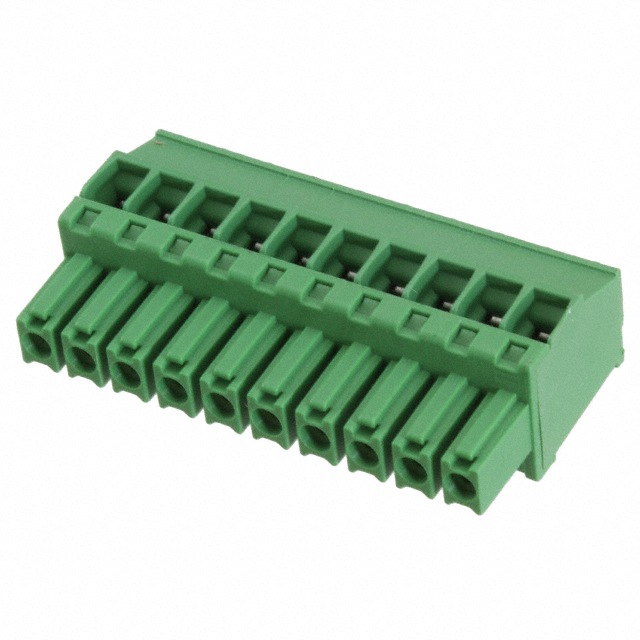

1-1986370-0
TE Connectivity AMP Connectors
1-1986370-1
TE Connectivity AMP Connectors
1-1986370-2
TE Connectivity AMP Connectors
1-1986370-3
TE Connectivity AMP Connectors
1-1986370-4
TE Connectivity AMP Connectors
1-1986370-5
TE Connectivity AMP Connectors
1-1986370-6
TE Connectivity AMP Connectors

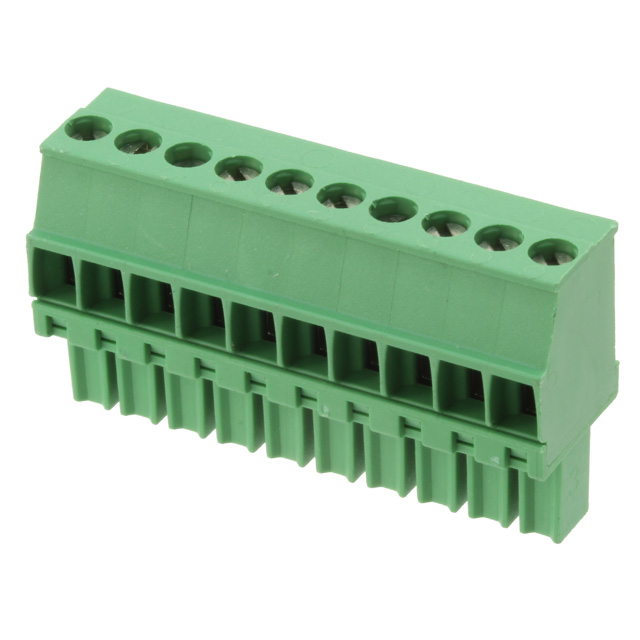

1-1986371-0
