Product CatalogPart Number

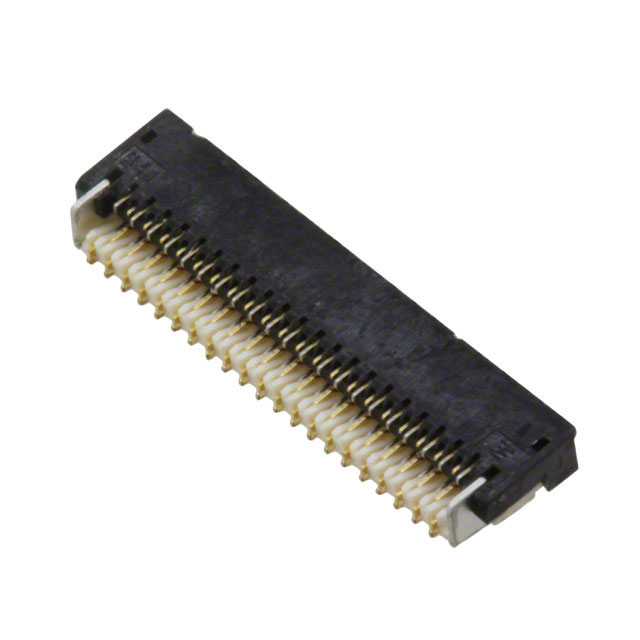

1-2040832-6
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN FPC BOTTOM 41POS 0.25MM R/A
Datasheet
DatasheetPackage
-
In Stock
24,435 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1-2040832-6
1-2040832-6
lmages are for reference only.Payment Methods
Delivery Services
41 Position FPC Connector Contacts, Bottom 0.010" (0.25mm) Surface Mount, Right Angle
Quick Inquiry
1-2040832-6
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 41 |
| Pitch | 0.010" (0.25mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.051" (1.30mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.2A |
| Contact Finish Thickness | - |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | 2040832 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

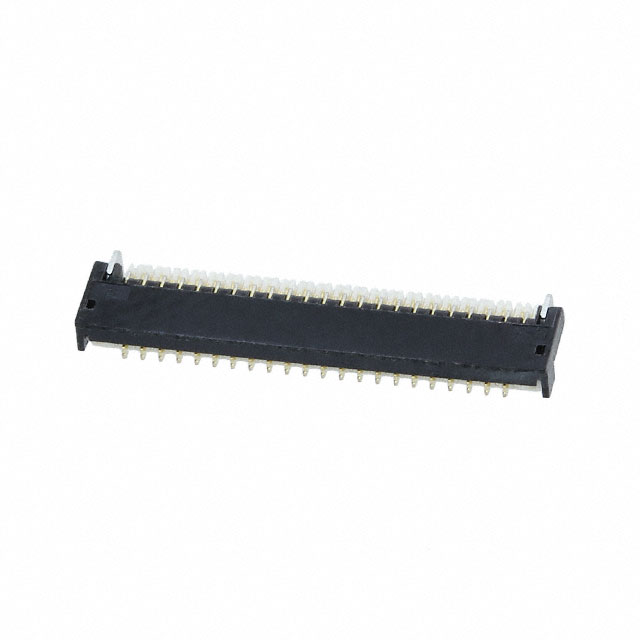

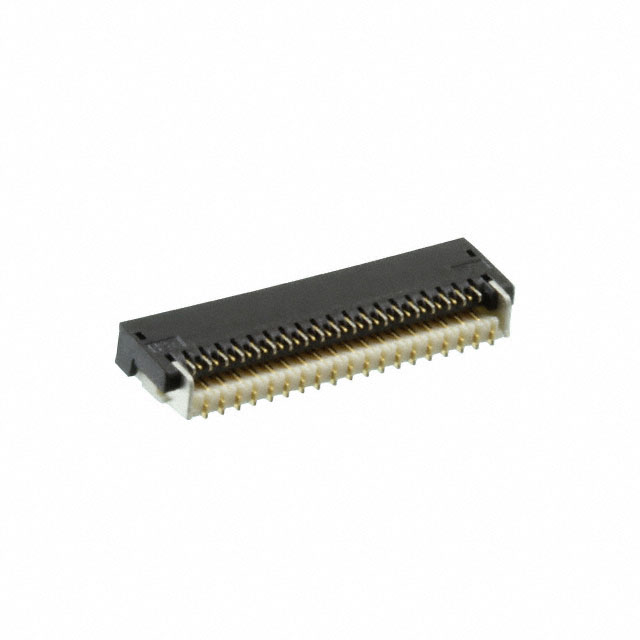

| Part Number | 1-2040832-4 | 1-2040832-8 | 1-2041070-0 | 1-2041084-0 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN FPC BOTTOM 37POS 0.25MM R/A | CONN FPC BOTTOM 45POS 0.25MM R/A | CONN FFC BOTTOM 10POS 0.5MM R/A | CONN FFC FPC BOTTOM 10POS 1MM RA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
