1-2825261-2
Manufacturer
TE Connectivity AMP ConnectorsDescription
12P VAL-U-LOK HCS VRT HDR W/P V0
Datasheet
DatasheetPackage
-
In Stock
85,526 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

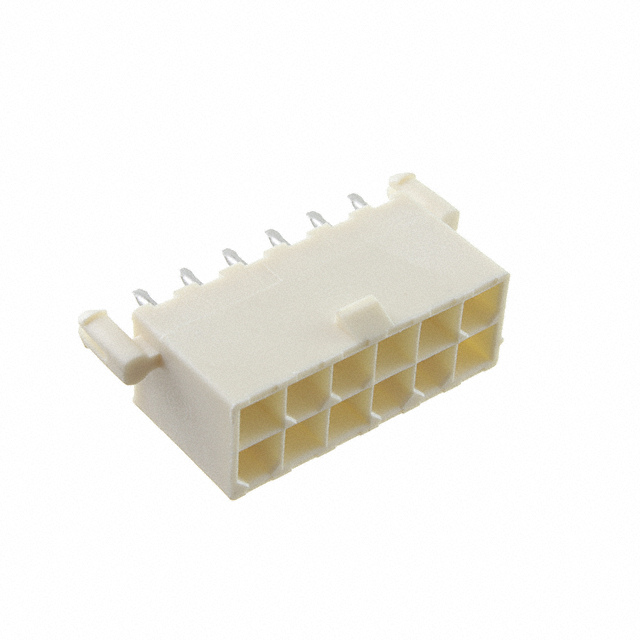

1-2825261-2
1-2825261-2
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 12 position 0.165" (4.20mm)
Quick Inquiry
1-2825261-2
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | VAL-U-LOK |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 13A |
| Voltage Rating | 600V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Base Product Number | 2825261 |
