Product CatalogPart Number
1.5KE10
Manufacturer
Littelfuse Inc.Description
TVS D5.4X7.5 8.1V 1500W UNIDIR
Datasheet
DatasheetPackage
DO-201AA, DO-27, Axial
In Stock
43,324 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1.5KE10
1.5KE10
lmages are for reference only.Payment Methods
Delivery Services
15.23V Clamp 104.8A Ipp Tvs Diode Through Hole DO-201
Quick Inquiry
1.5KE10
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8.55V |
| Voltage - Breakdown (Min) | 9V |
| Voltage - Clamping (Max) @ Ipp | 15.23V |
| Current - Peak Pulse (10/1000µs) | 104.8A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | | |  |  |
| Part Number | 1.5KE10 | 1.5KE10 | 1.5KE10-B | 1.5KE10-E3/54 |
| Manufacturer | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 1500W, 10V, 5%, UNIDIRECTIONAL, | 10VClamp 100A Ipp TVS Diode Thro | TVS DIODE 8.55VWM 15.23VC DO201 | TVS DIODE 8.1VWM 15VC 1.5KE |
| Series | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Strip | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
1.5KE10
Taiwan Semiconductor Corporation
1.5KE10
Meritek
1.5KE10-B
Littelfuse Inc.
1.5KE10-E3/54
Vishay General Semiconductor - Diodes Division
1.5KE10-E3/73
Vishay General Semiconductor - Diodes Division
1.5KE100
Taiwan Semiconductor Corporation
1.5KE100-B
Littelfuse Inc.
1.5KE100-E3/54
Vishay General Semiconductor - Diodes Division
1.5KE100-E3/73
Vishay General Semiconductor - Diodes Division
1.5KE100A
Taiwan Semiconductor Corporation
1.5KE100A
Littelfuse Inc.
1.5KE100A
onsemi
1.5KE100A
STMicroelectronics
1.5KE100A
Diotec Semiconductor
1.5KE100A
SMC Diode Solutions
1.5KE100A A0G
Taiwan Semiconductor Corporation
1.5KE100A B0G
Taiwan Semiconductor Corporation

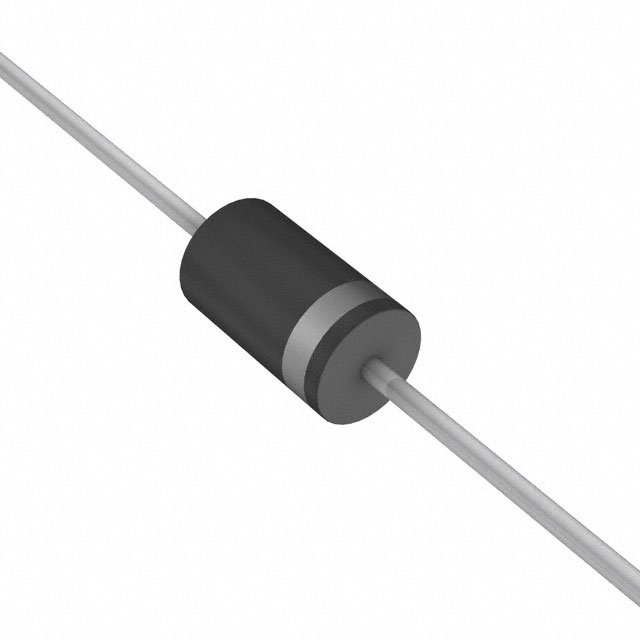

1.5KE100A R0G
