1.5SMC200A

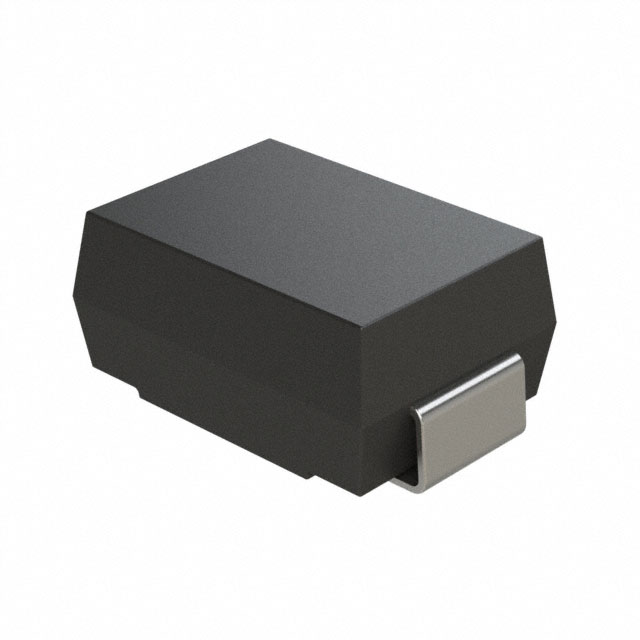

lmages are for reference only.1.5SMC200A
TVS DIODE 171VWM 274VC DO214AB
DatasheetDO-214AB, SMC
97,525 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
274V Clamp 5.7A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMC200A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | 1.5SMC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 171V |
| Voltage - Breakdown (Min) | 190V |
| Voltage - Clamping (Max) @ Ipp | 274V |
| Current - Peak Pulse (10/1000µs) | 5.7A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 1.5SMC200 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | 1.5SMC200 | 1.5SMC200 | 1.5SMC200A | 1.5SMC200A |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Bourns Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 171VWM 287.7VC DO214AB | 1500W, 200V, 10%, UNIDIRECTIONAL | TVS DIODE 171VWM 274VC DO214AB | TVS DIODE 171VWM 274VC DO214AB |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Bourns Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
