1.5SMCJ100A_R1_00001

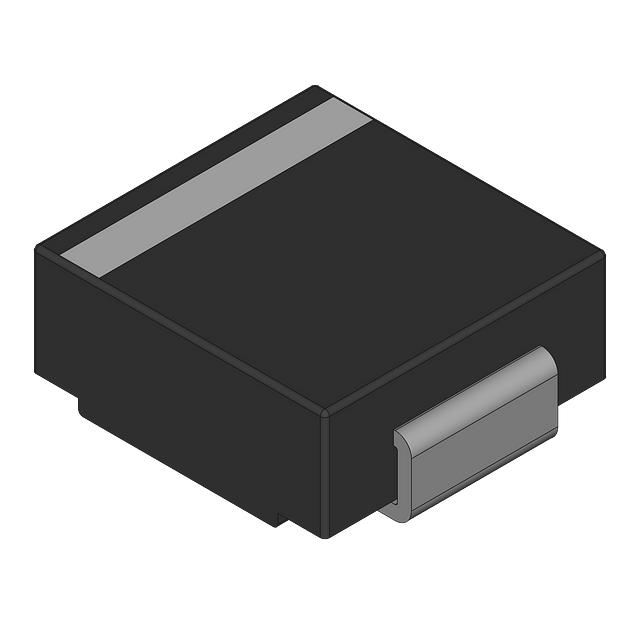

lmages are for reference only.1.5SMCJ100A_R1_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AB, SMC
44,945 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
162V Clamp 9.3A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMCJ100A_R1_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | 1.5SMCJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 100V |
| Voltage - Breakdown (Min) | 111V |
| Voltage - Clamping (Max) @ Ipp | 162V |
| Current - Peak Pulse (10/1000µs) | 9.3A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 1.5SMC |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1.5SMCJ100A | 1.5SMCJ100AS_R1_00001 | 1.5SMCJ100CA | 1.5SMCJ100CA_R1_00001 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 100VWM 162VC DO-214AB | TRANSIENT VOLTAGE SUPPRESSOR | TVS SMC 150DEG 100V 1500W BIDIR | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
