1.5SMCJ170CA

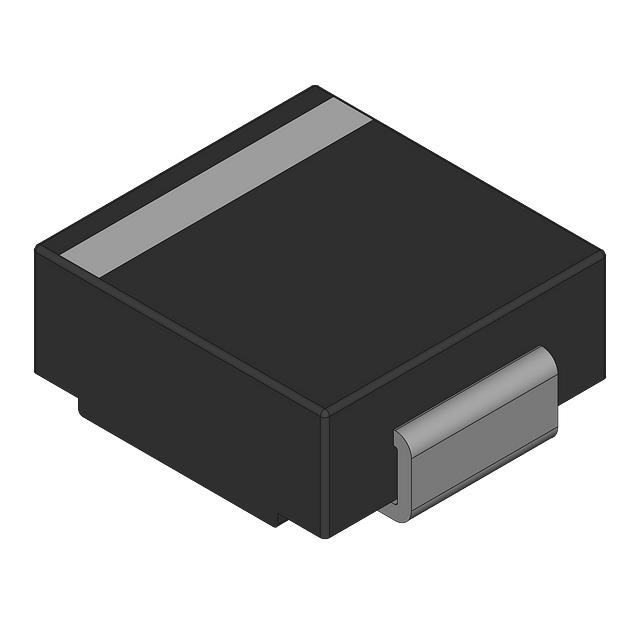

lmages are for reference only.1.5SMCJ170CA
TVS DIODE 170VWM 275VC DO-214AB
DatasheetDO-214AB, SMC
94,533 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
275V Clamp 5.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMCJ170CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 170V |
| Voltage - Breakdown (Min) | 189V |
| Voltage - Clamping (Max) @ Ipp | 275V |
| Current - Peak Pulse (10/1000µs) | 5.5A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 1.5SMCJ170CA_R1_00001 | 1.5SMCJ170A | 1.5SMCJ170AS_R1_00001 | 1.5SMCJ170A_R1_00001 |
| Manufacturer | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 170VWM 275VC DO-214AB | TRANSIENT VOLTAGE SUPPRESSOR | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
