Product CatalogPart Number
1.5SMCJ48CA
Manufacturer
Diotec SemiconductorDescription
TVS SMC 150DEG 48V 1500W BIDIR
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
82,613 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1.5SMCJ48CA
1.5SMCJ48CA

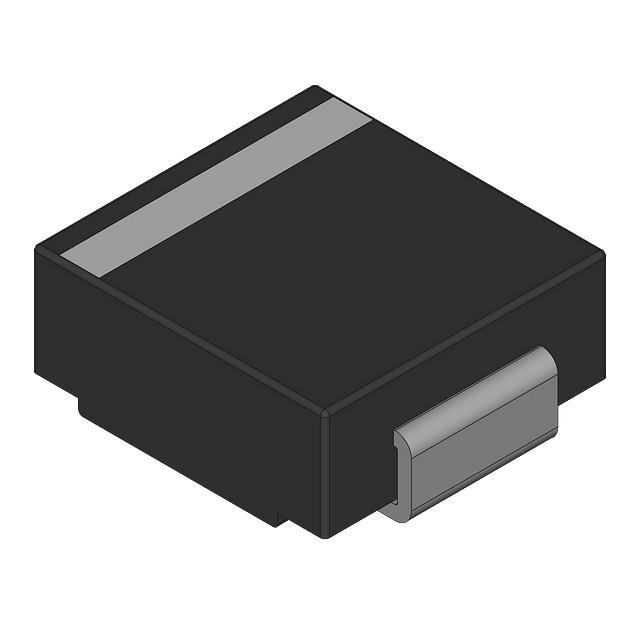

lmages are for reference only.Payment Methods
Delivery Services
77.4V Clamp 19.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Quick Inquiry
1.5SMCJ48CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Cut Tape (CT)-->Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 48V |
| Voltage - Breakdown (Min) | 53.3V |
| Voltage - Clamping (Max) @ Ipp | 77.4V |
| Current - Peak Pulse (10/1000µs) | 19.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 1.5SMCJ48CA-AQ | 1.5SMCJ48CA-AU_R1_000A1 | 1.5SMCJ48CA_R1_00001 | 1.5SMCJ40A |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 48VWM 77.4VC DO-214AB | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS SMC 150DEG 40V 1500W UNIDIR |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Bulk |
