Product CatalogPart Number
1.5SMCJ64CA
Manufacturer
Diotec SemiconductorDescription
TVS SMC 150DEG 64V 1500W BIDIR
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
71,246 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1.5SMCJ64CA
1.5SMCJ64CA
lmages are for reference only.Payment Methods
Delivery Services
103V Clamp 14.6A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Quick Inquiry
1.5SMCJ64CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Cut Tape (CT)-->Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 64V |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Current - Peak Pulse (10/1000µs) | 14.6A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

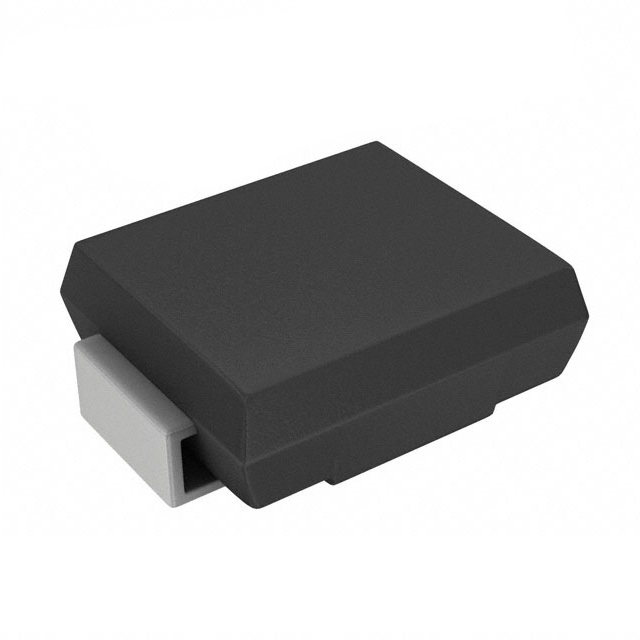

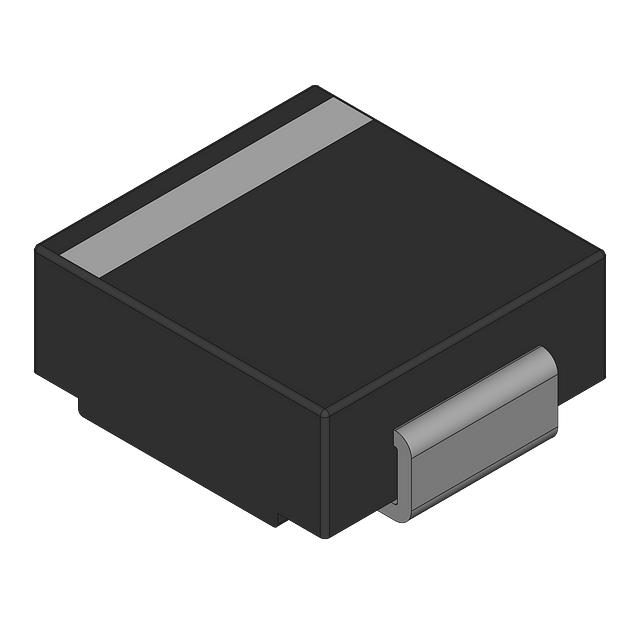

| Part Number | 1.5SMCJ64CA-AQ | 1.5SMCJ64CA-AU_R1_000A1 | 1.5SMCJ64CA_R1_00001 | 1.5SMCJ6.0A_R1_00001 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 64VWM 103VC DO-214AB | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
