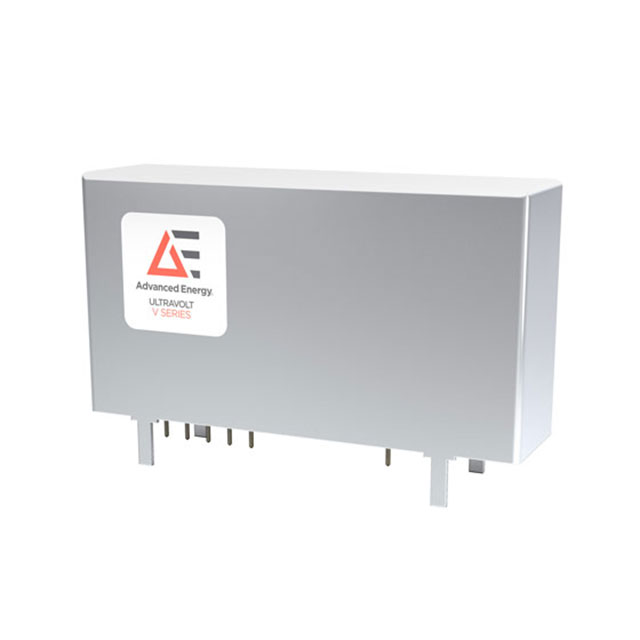

1.5V15-N0.8-WS
lmages are for reference only.1.5V15-N0.8-WS
DC DC CONVERTER 1500V 800MW
Datasheet9-SIP Module
34,996 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 1500V 530µA 14V - 16V Input
1.5V15-N0.8-WS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | UltraVolt® V |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 1500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 530µA |
| Power (Watts) | 800 mW |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -10°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module |
| Size / Dimension | 1.81" L x 0.47" W x 0.98" H (46.0mm x 12.0mm x 25.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cUL, cURus, UL |
| Standard Number | - |
| Base Product Number | 1.5V15 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1.5V15-N0.8 | 1.5V12-N0.5 | 1.5V12-N0.5-WS | 1.5V12-P0.5 |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1500V 800MW | DC DC CONVERTER 1500V 500MW | DC DC CONVERTER 1500V 500MW | DC DC CONVERTER 1500V 500MW |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
