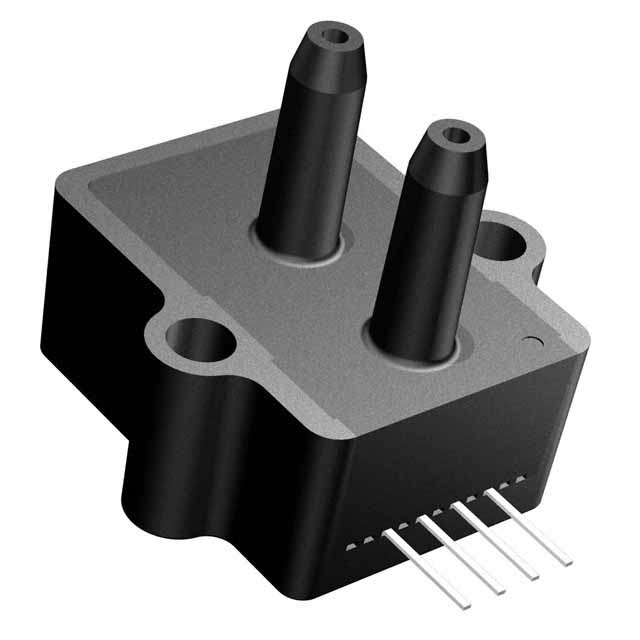

10 INCH-G-P4V-MINI
lmages are for reference only.10 INCH-G-P4V-MINI
SENSOR 0.36PSIG 0.08" 4.25V
Datasheet4-SIP Module
92,480 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.36PSI (2.49kPa) Vented Gauge Male - 0.08" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module
10 INCH-G-P4V-MINI
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | MAMP |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | G-P4V-MINI |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Output Type | Analog Voltage |
| Output | 0.25 V ~ 4.25 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.08" (2.03mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 7.23PSI (49.83kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

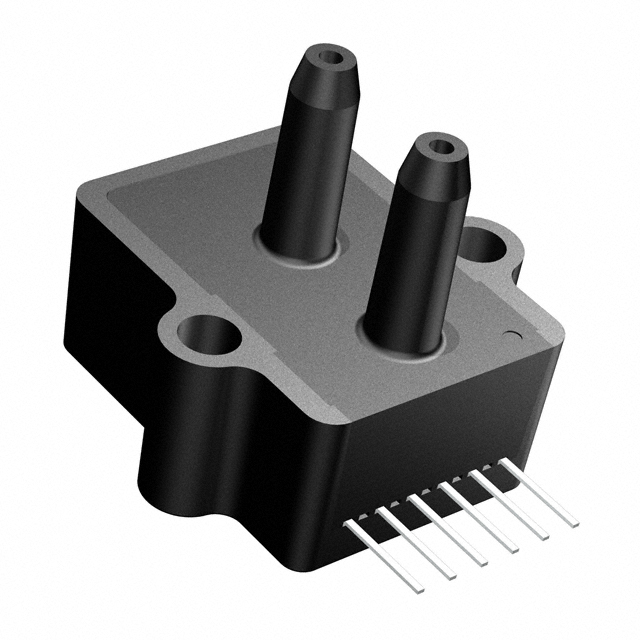

| Part Number | 10 INCH-D-4V | 10 INCH-D-4V-MIL | 10 INCH-D-4V-PRIME | 10 INCH-D-CGRADE-MINI |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 0.36PSID 0.19" 4.25V | SENSOR 0.36PSID 0.19" 4.25V | SENSOR 0.36PSID 0.19" 4.25V | SENSOR 0.36PSID 0.18" .02V |
| Series | ADCA | ADCA | ADCA | ACPC |
| Packaging | Tube | Bulk | Tube | Tray |
