100 PSI-D-4V-ASCX
lmages are for reference only.100 PSI-D-4V-ASCX
SENSOR 100PSID 0.19" 4.75V 4SIP
Datasheet4-SIP
71,316 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±100PSI (±689.48kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.25 V ~ 4.75 V 4-SIP
100 PSI-D-4V-ASCX
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ASCX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | D-4V-ASCX |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±100PSI (±689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0.25 V ~ 4.75 V |
| Accuracy | ±0.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±150PSI (±1034.21kPa) |
| Operating Temperature | -25°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

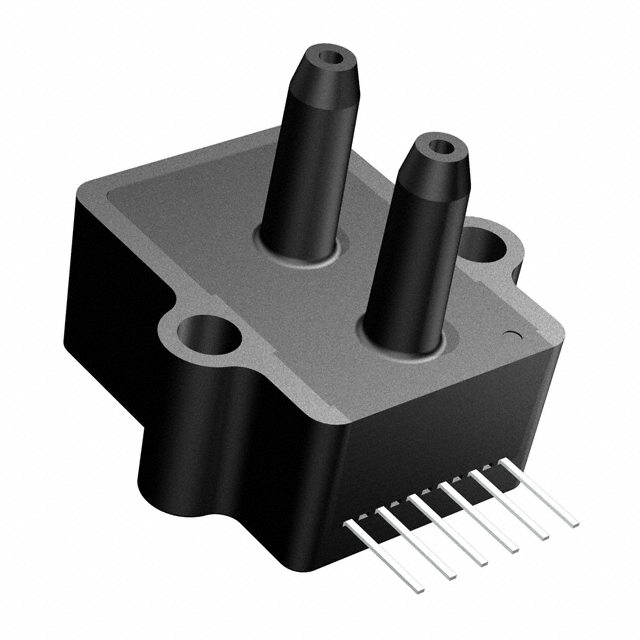

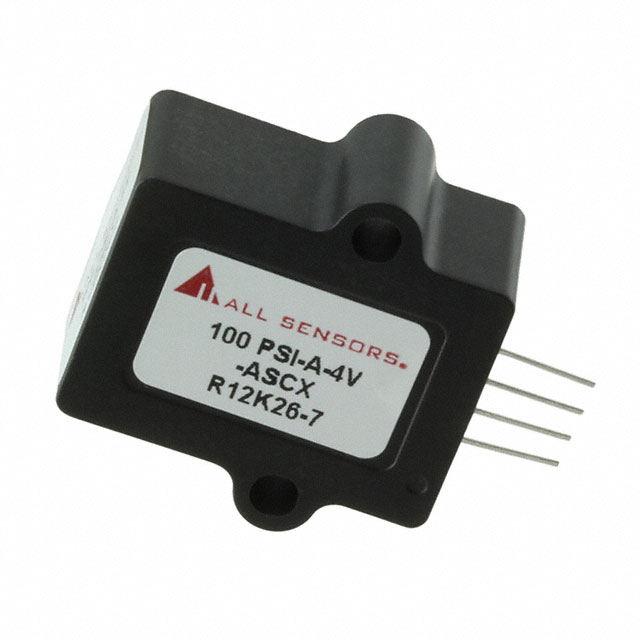

| Part Number | 100 PSI-A-4V-ASCX | 100 PSI-A-DO | 100 PSI-D-CGRADE-MV | 100 PSI-D-CGRADE-MV |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 100PSIA 0.19" 4.75V 4SIP | SENSOR 100PSIA 0.19" 12BIT | SENSOR 100PSID 0.19" 0.1V | SENSOR 100PSID 0.19" 0.1V |
| Series | ASCX | ADO | AXCX | AXCX |
| Packaging | Bulk | Tube | Tube | Tube |
