Product CatalogPart Number
1003-030-01210-TR
Manufacturer
CNC TechDescription
CONN RCPT USB2.0 C SMD RA
Datasheet
DatasheetPackage
-
In Stock
35,424 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1003-030-01210-TR
1003-030-01210-TR
lmages are for reference only.Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Quick Inquiry
1003-030-01210-TR
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | CNC Tech |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 (16+8 Dummy) |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -25°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 5A |
| Voltage - Rated | 48V |
| Mating Cycles | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

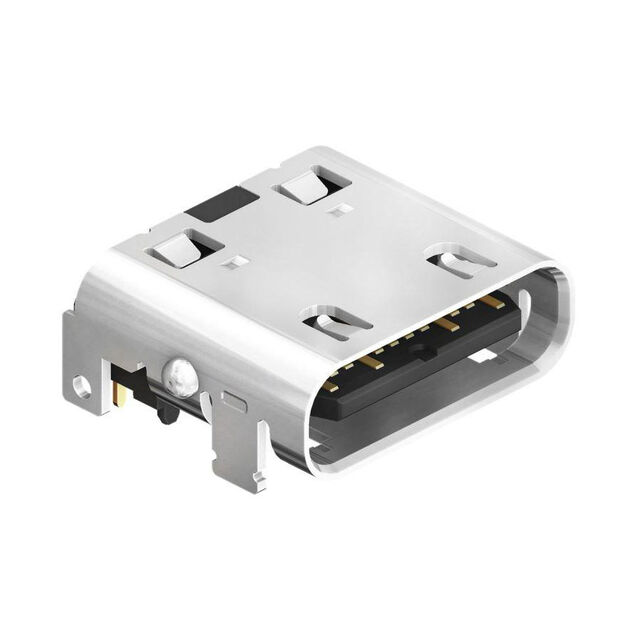

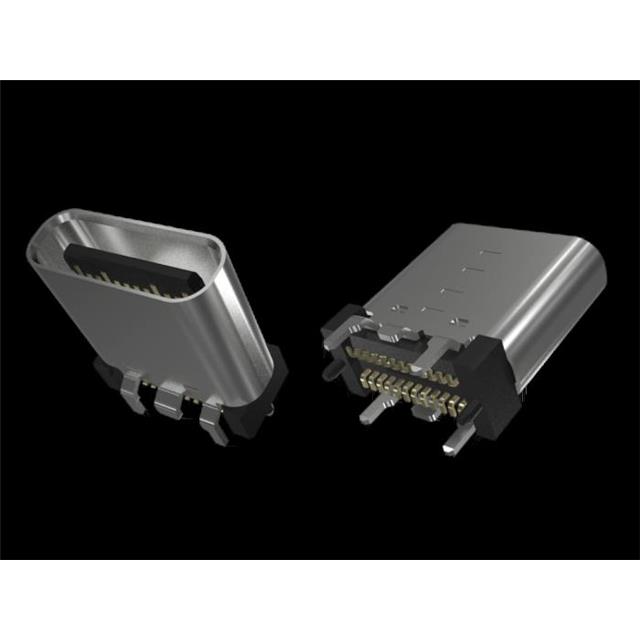

| Part Number | 1003-031-01220-TR | 10117835-T03LF | 10157529-00111LF | 10154855-00231LF |
| Manufacturer | CNC Tech | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | CONN RCPT USB3.2 C SMD RA | CONN RECEPTACLE USB 3.0 | USB 3.2 TYPE C GEN 2 RECEPTACLE | USB TYPE C REC VERT |
| Series | - | 10117835 | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
