Product CatalogPart Number
10051922-2610ELF
Manufacturer
Amphenol ICC (FCI)Description
CONN FPC BOTTOM 26POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
56,212 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
10051922-2610ELF
10051922-2610ELF
lmages are for reference only.Payment Methods
Delivery Services
26 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
10051922-2610ELF
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Amphenol ICC (FCI) |
| Series | VLL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 26 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.051" (1.30mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | 20 |
| Base Product Number | 10051922 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

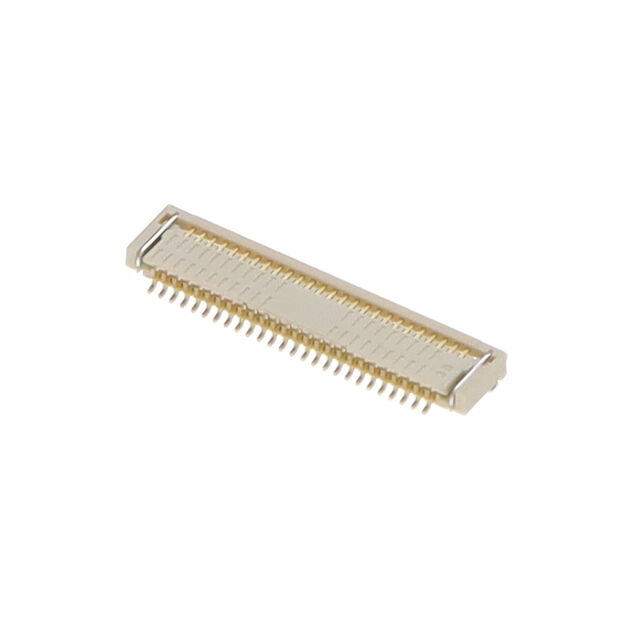

| Part Number | 10051922-2610EHLF | 10051922-2010EHLF | 10051922-2010ELF | 10051922-2210EHLF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN FPC BOTTOM 26POS 0.5MM R/A | CONN FPC BOTTOM 20POS 0.5MM R/A | CONN FPC BOTTOM 20POS 0.5MM R/A | CONN FPC BOTTOM 22POS 0.5MM R/A |
| Series | VLL | VLL | VLL | VLL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
10051922-0810EHLF
Amphenol ICC (FCI)
10051922-0810ELF
Amphenol ICC (FCI)
10051922-1010EHLF
Amphenol ICC (FCI)

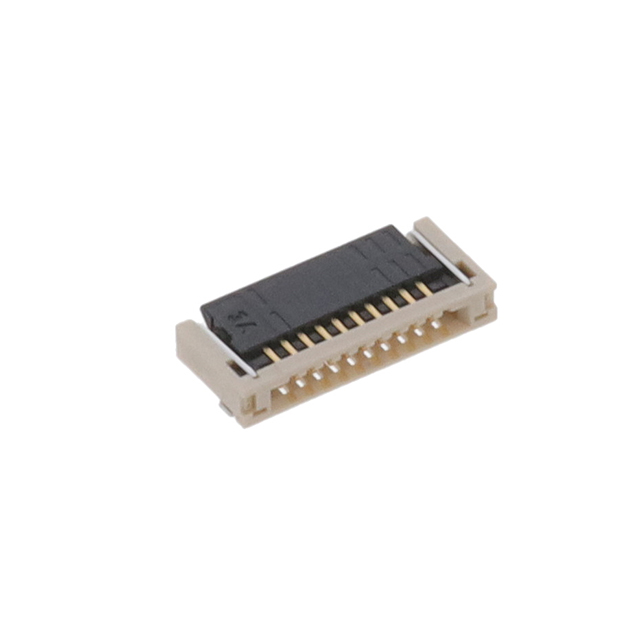

10051922-1010ELF
Amphenol ICC (FCI)
10051922-1110EHLF
Amphenol ICC (FCI)
10051922-1110ELF
Amphenol ICC (FCI)

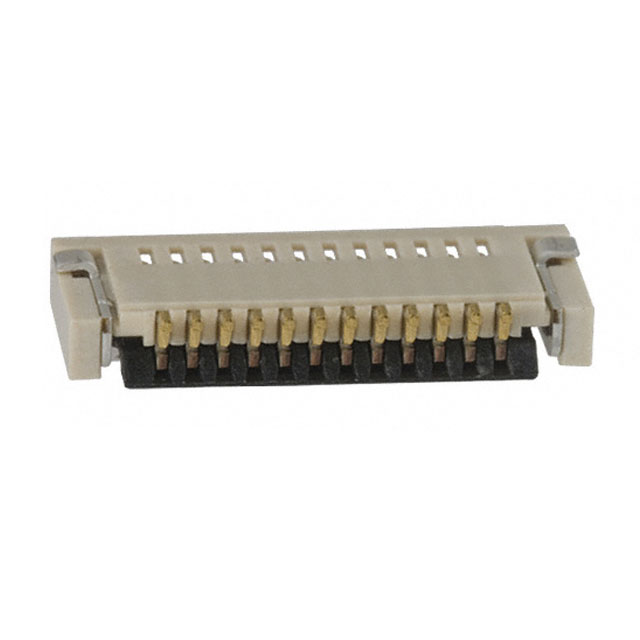

10051922-1210EHLF
Amphenol ICC (FCI)
10051922-1210ELF
Amphenol ICC (FCI)
10051922-1410EHLF
Amphenol ICC (FCI)

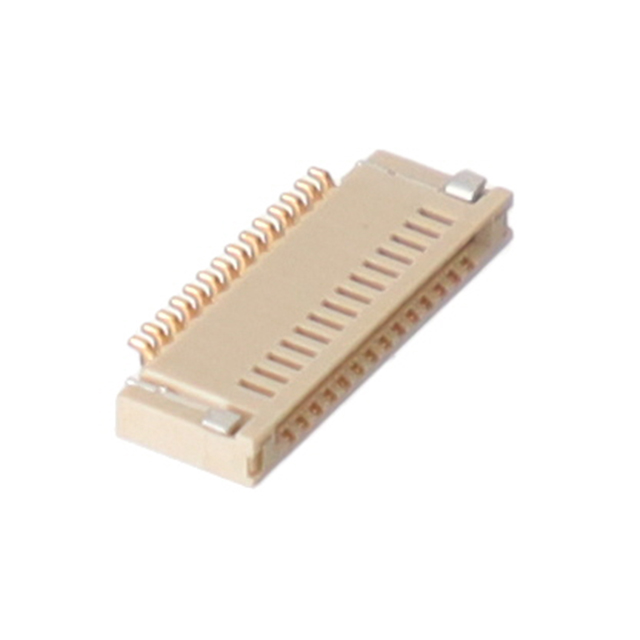

10051922-1410ELF
Amphenol ICC (FCI)
10051922-1510EHLF
Amphenol ICC (FCI)

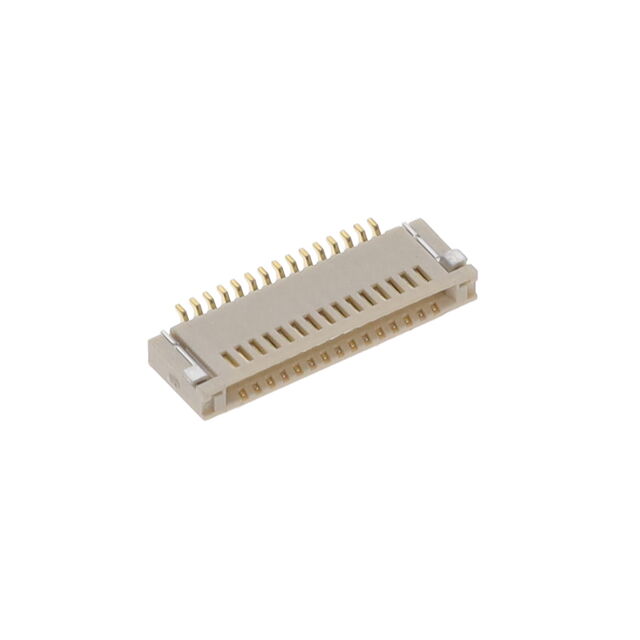

10051922-1510ELF
Amphenol ICC (FCI)
10051922-1610EHLF
Amphenol ICC (FCI)
10051922-1610ELF
Amphenol ICC (FCI)
10051922-1810EHLF
Amphenol ICC (FCI)
10051922-1810ELF
Amphenol ICC (FCI)

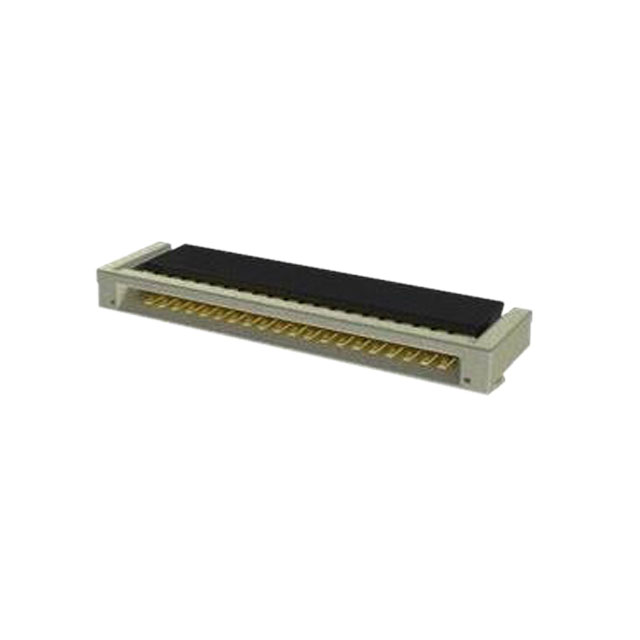

10051922-2010EHLF
Amphenol ICC (FCI)

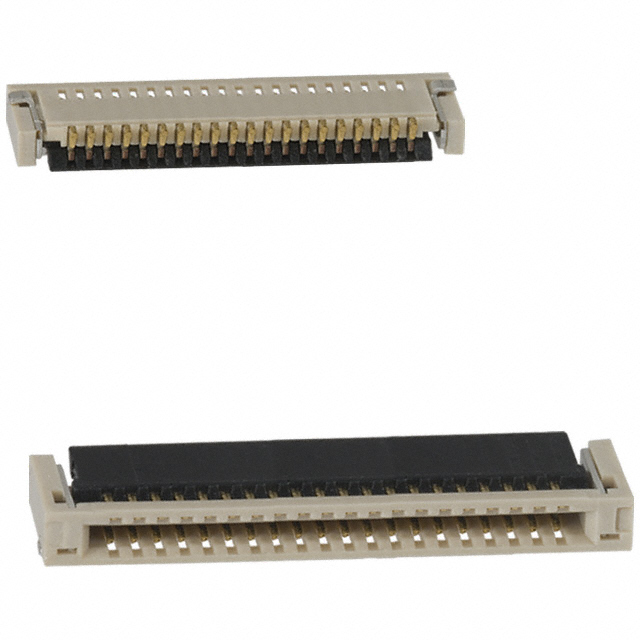

10051922-2010ELF
