Product CatalogPart Number
10106813-021112LF
Manufacturer
Amphenol ICC (FCI)Description
CONN SELF-MATE 20POS SMD GOLD
Datasheet
DatasheetPackage
-
In Stock
26,830 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
10106813-021112LF
10106813-021112LF
lmages are for reference only.Payment Methods
Delivery Services
20 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold or Gold, GXT™
Quick Inquiry
10106813-021112LF
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Arrays-Edge Type-Mezzanine Board to Board |
| Manufacturer | Amphenol ICC (FCI) |
| Series | MezzoStak |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Number of Positions | 20 |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Solder Retention |
| Contact Finish | Gold or Gold, GXT™ |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Mated Stacking Heights | 4mm, 4.5mm, 5.5mm |
| Height Above Board | 0.140" (3.55mm) |
| Base Product Number | 10106813 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | 10106813-023112LF | 10106813-024112LF | 10106813-031112LF | 10106813-033112LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN SELF-MATE 20POS SMD GOLD | CONN SELF-MATE 20POS SMD GOLD | CONN SELF-MATE 30POS SMD GOLD | CONN SELF-MATE 30POS SMD GOLD |
| Series | MezzoStak | MezzoStak | MezzoStak | MezzoStak |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
10106813-023112LF
Amphenol ICC (FCI)
10106813-024112LF
Amphenol ICC (FCI)
10106813-031112LF
Amphenol ICC (FCI)

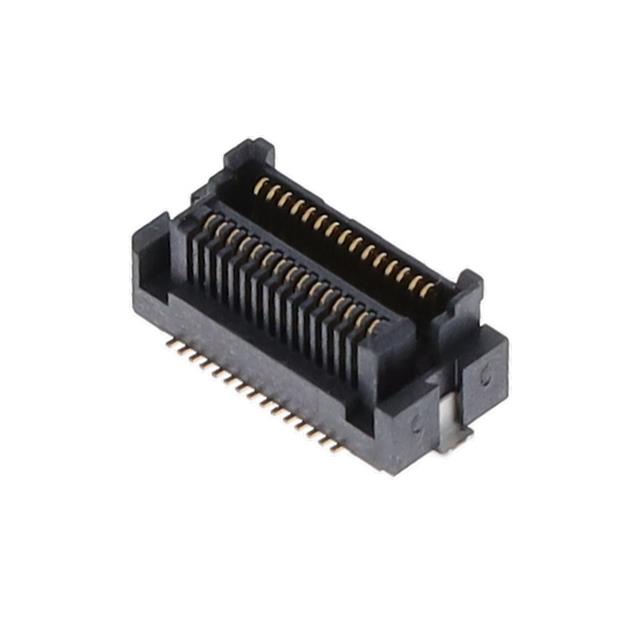

10106813-033112LF
Amphenol ICC (FCI)

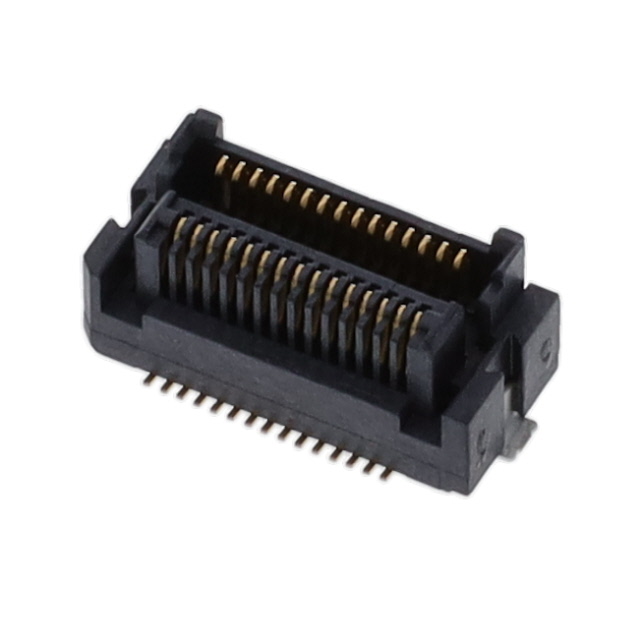

10106813-034112LF
Amphenol ICC (FCI)
10106813-041112LF
Amphenol ICC (FCI)
10106813-043112LF
Amphenol ICC (FCI)

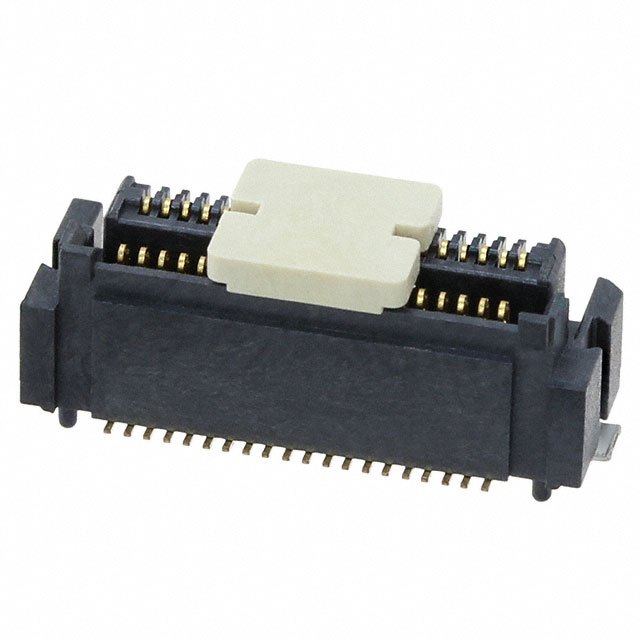

10106813-044112LF
Amphenol ICC (FCI)

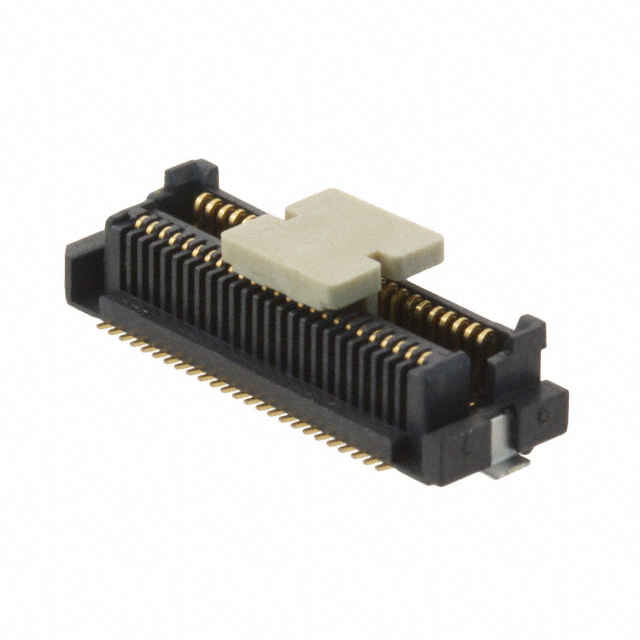

10106813-051112LF
Amphenol ICC (FCI)
10106813-053112LF
Amphenol ICC (FCI)
10106813-054112LF
Amphenol ICC (FCI)

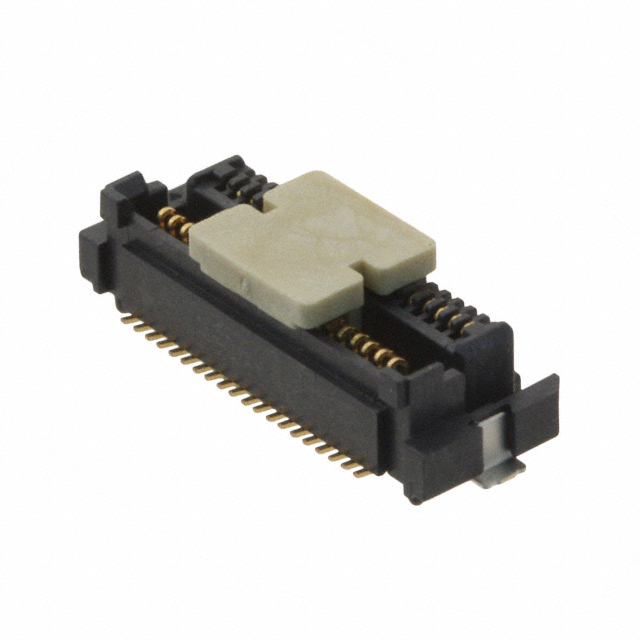

10106813-061112LF
Amphenol ICC (FCI)

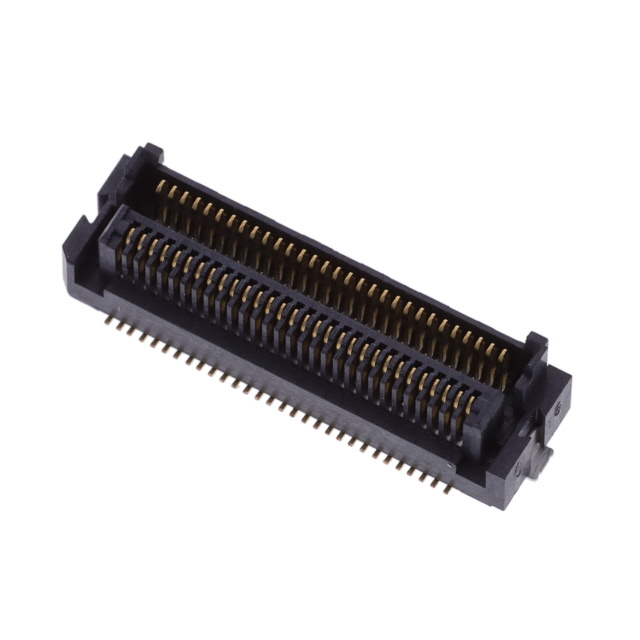

10106813-063112LF
Amphenol ICC (FCI)

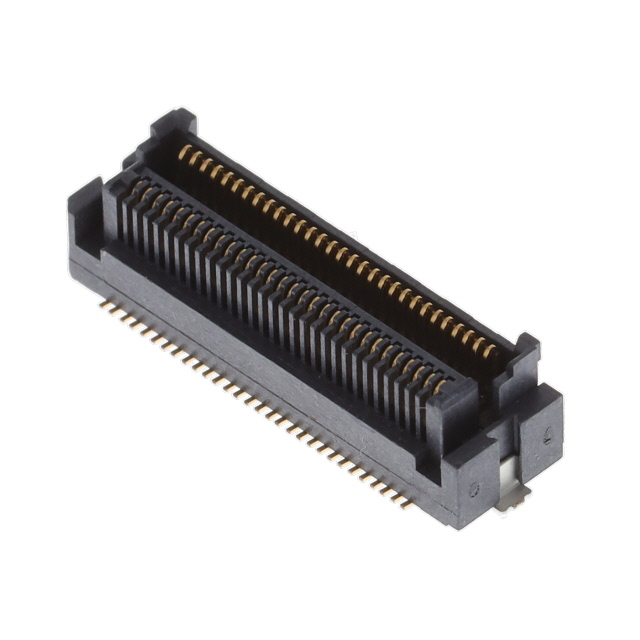

10106813-064112LF
