106XMPL6R3MG19
lmages are for reference only.106XMPL6R3MG19
CAP ALUM POLY 10UF 20% 6.3V SMD
Datasheet2917 (7343 Metric)
14,271 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF 6.3 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 1000 Hrs @ 105°C
106XMPL6R3MG19
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | XMPL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

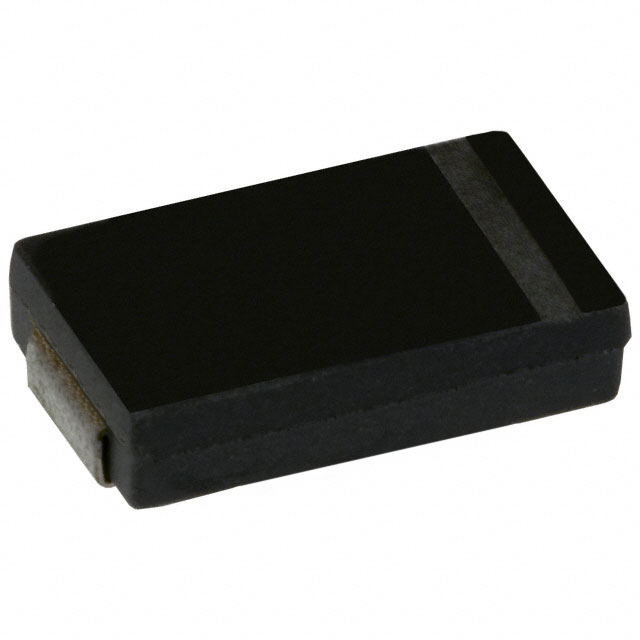

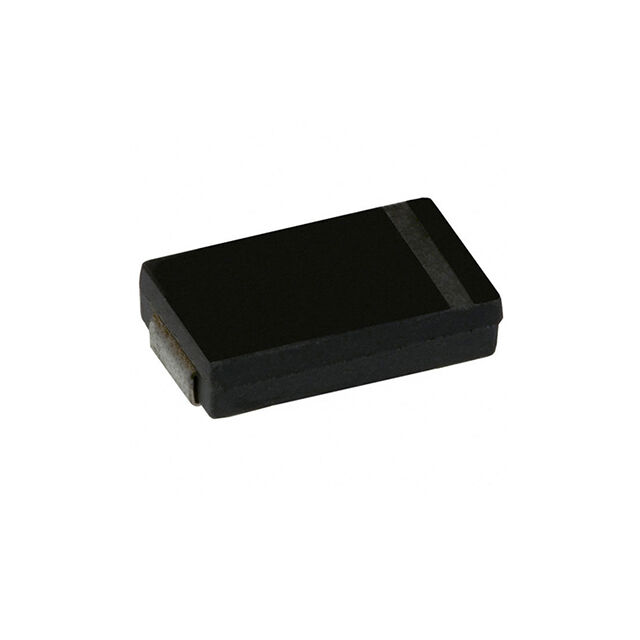

| Part Number | 106XMPL012MG19 | 106XMPL016MG19 | 106XMPL035MG19 | PCL1A680MCL1GS |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 10UF 20% 12V SMD | CAP ALUM POLY 10UF 20% 16V SMD | CAP ALUM POLY 10UF 20% 35V SMD | CAP ALUM POLY 68UF 20% 10V SMD |
| Series | XMPL | XMPL | XMPL | PCL |
| Packaging | Bulk | Cut Tape (CT)-->Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
