Product CatalogPart Number
115-93-648-61-001000
Manufacturer
Mill-Max Manufacturing Corp.Description
CONN IC SKT DBL
Datasheet
DatasheetPackage
-
In Stock
57,673 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
115-93-648-61-001000
115-93-648-61-001000
lmages are for reference only.Payment Methods
Delivery Services

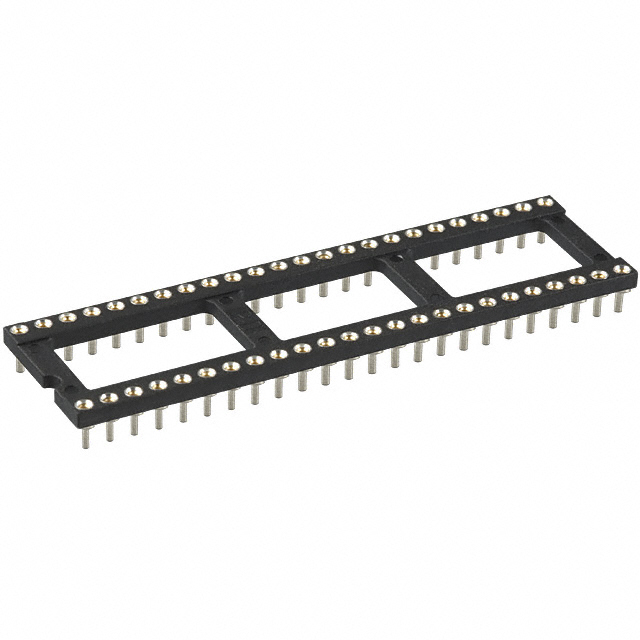

48 (2 x 24) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
Quick Inquiry
115-93-648-61-001000
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 115 |
| Packaging | Tube |
| RoHS Status | |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 48 (2 x 24) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.108" (2.74mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3 A |
| Contact Resistance | - |
| Base Product Number | 115-93 |
Parts with Similar Specifications
| Product Attribute | |  | | |
| Part Number | 115-93-648-41-001000 | 115-93-648-41-003000 | 115-93-648-61-003000 | 115-91-210-41-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | CONN IC DIP SOCKET 48POS GOLD | CONN IC DIP SOCKET 48POS GOLD | CONN IC SKT DBL | SKT IC OPEN LOWPRO |
| Series | 115 | 115 | 115 | 115 |
| Packaging | Tube | Tube | Tube | Tube |
